Description

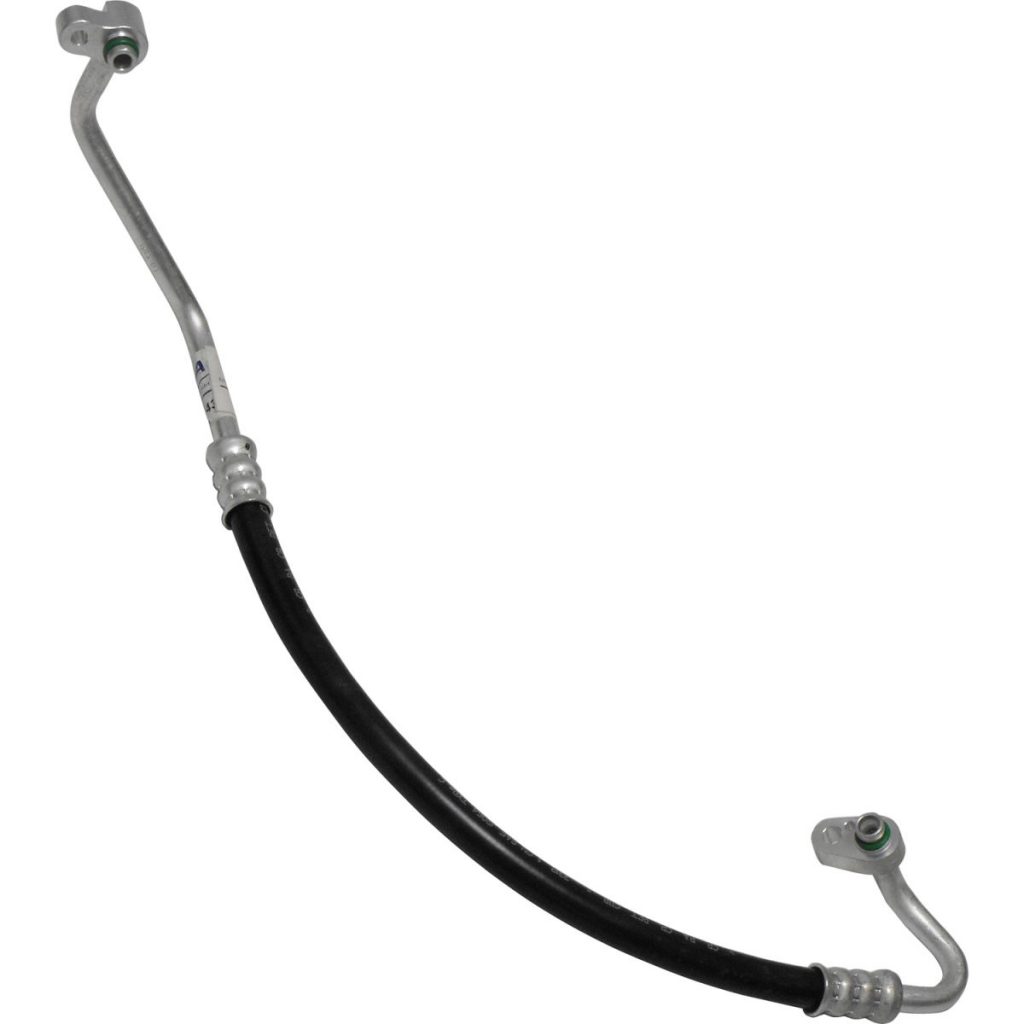

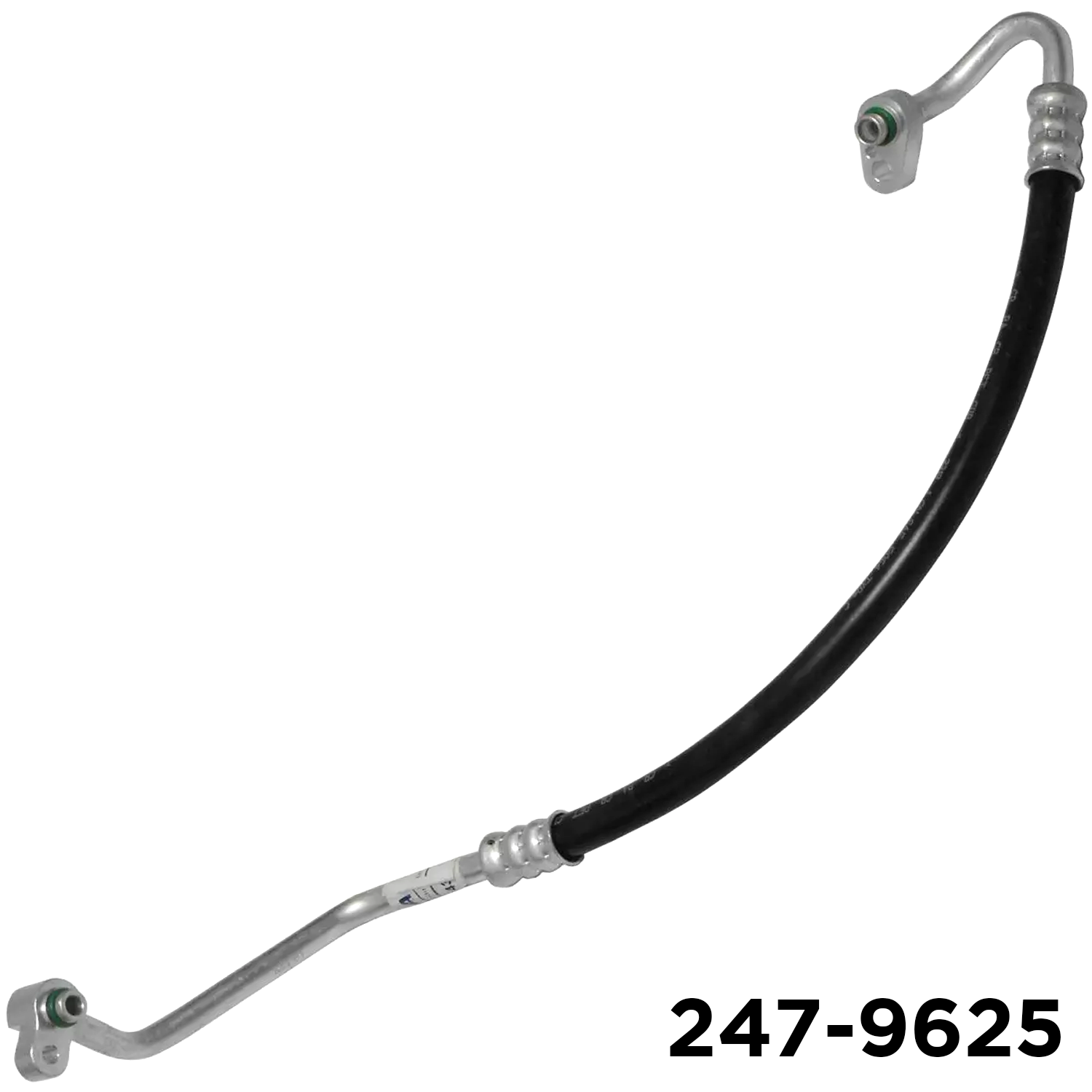

A/C discharge line for Hyundai Elantra & Elantra Touring
The high-side discharge hose that carries hot, high-pressure refrigerant from the compressor to the condenser. This pre-assembled line is a direct replacement for the OEM Hyundai discharge hose (97762-2H101 / 97762-2L110) on 2009–2012 Elantra and Elantra Touring, and cross-references UAC HA 111436C.
Verify fitment before ordering. This line fits 2009–2012 Hyundai Elantra and Elantra Touring (2.0L). Confirm against your OEM number (97762-2H101 or 97762-2L110) and your vehicle’s port and routing before ordering. Not sure? Call 480-507-2229.
The high-pressure link in your A/C
The discharge line is the hose that runs from the compressor’s discharge port to the condenser. It carries hot, high-pressure refrigerant vapor — so when it cracks, chafes, or leaks at a fitting, you lose charge and lose cooling.
Because it sees the highest pressures and temperatures in the system, a failing discharge line is a common source of slow leaks. Replacing it with a correctly-routed, pre-fitted line restores a sealed high side and full cooling.
Know exactly what you’re ordering
The details that decide fitment on this line:
A direct-fit repair for the high side
Direct OEM replacement
Replaces the factory Hyundai discharge hose 97762-2H101 / 97762-2L110 — no adapting or custom fabrication.
Correct routing & fittings
Pre-assembled with the correct pre-formed hose and end fittings to route and bolt up the way the original did.
Stops high-side leaks
The discharge line runs the hottest, highest-pressure refrigerant in the system — a fresh line restores a sealed high side.
Restores cooling
A cracked or leaking discharge hose bleeds off charge; replacing it brings back cold air.
Vehicle-specific
Built for the 2009–2012 Elantra / Elantra Touring 2.0L application, not a universal guess.
Wide interchange
Cross-references UAC, Omega, Global Parts, Ranshu, and Transtar — see the table below.
Vehicle compatibility
This discharge line fits the following. Confirm against your OEM number and vehicle before ordering.
| Make | Model | Years | Engine |
|---|---|---|---|
| Hyundai | Elantra | 2009–2012 | 2.0L L4 |
| Hyundai | Elantra Touring | 2009–2012 | 2.0L L4 |
OE & interchange numbers
Match your old line against the numbers below.
| Brand | Part number(s) |
|---|---|
| Hyundai / Kia (OE) | 97762-2H101 · 97762-2L110 |
| UAC | HA 111436C |
| Omega | 3464380 |
| Global Parts Distributors | 4812025 |
| Ranshu | 570861 |
| Transtar AC | ACLL0861 |
Technical details
Replace it right
The discharge line is a sealed high-pressure hose, so a clean install protects the whole system.
Recover refrigerant
Safely recover the system charge before opening the high side.
Swap the line
Remove the old discharge line and fit the new one with fresh O-rings; route it the same way as the original.
Torque the fittings
Tighten the connections to spec so the high-side joints seal properly.
Evacuate & recharge
Pull a deep vacuum, then recharge the system to the vehicle’s specification.
Discharge line FAQ
What is an A/C discharge line?
Will it fit my Hyundai Elantra?
Is this an OEM replacement?
How do I know my discharge line is leaking?
Do I need new O-rings?
Match your discharge line before you buy
Routing and fittings have to match. Send us your OEM number or vehicle details and we’ll confirm the right line for your Elantra.
Add to cart ↑ Confirm my fitmentHyundai®, Kia®, and all manufacturer names and part numbers are trademarks of their respective owners and are listed for identification and cross-reference purposes only; their use does not imply affiliation or endorsement. This is a replacement A/C discharge line. Confirm the OEM number, routing, and fittings against your vehicle before ordering.
