Description

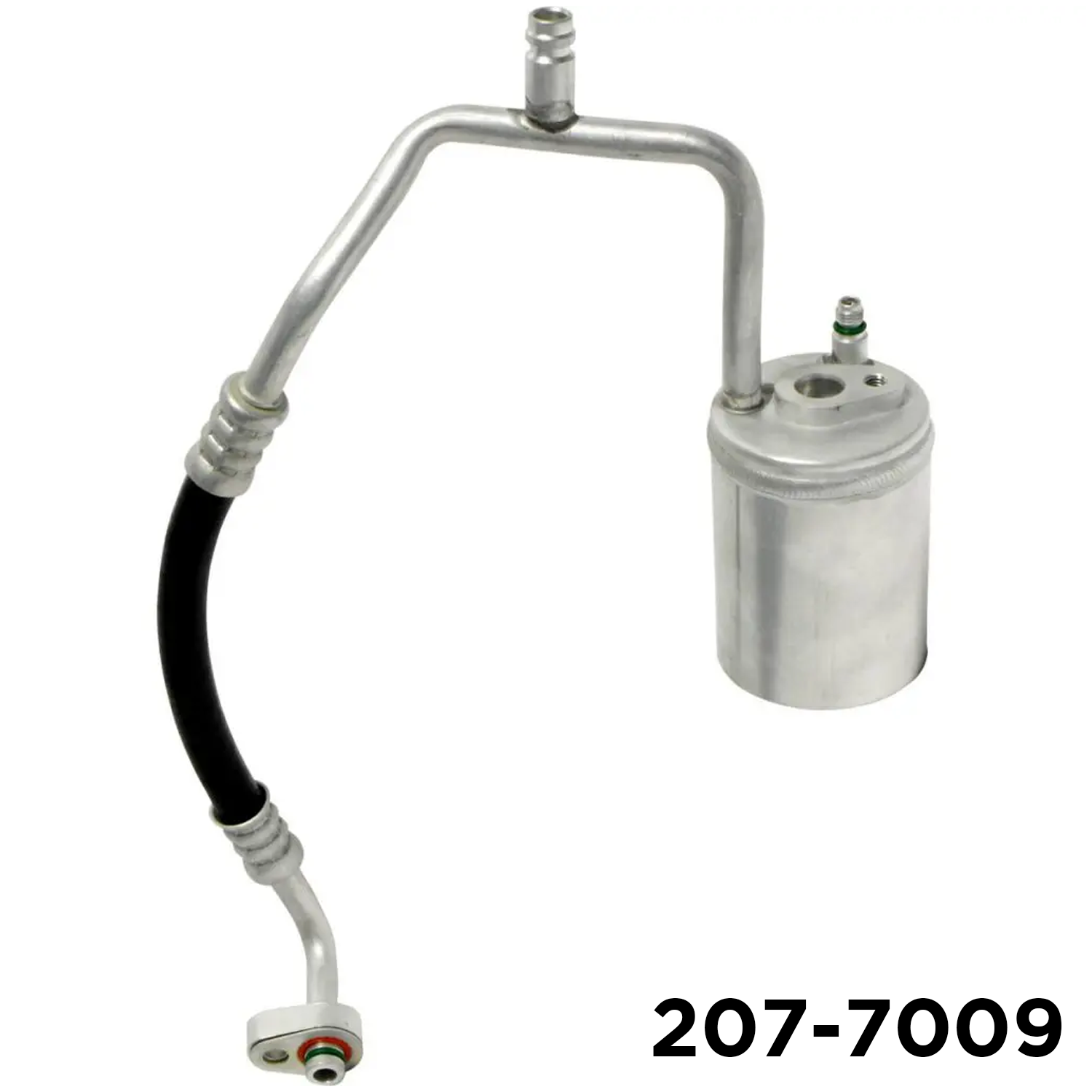

A/C drier with hose assembly — Escape / Tribute / Mariner
The complete drier-and-hose assembly for the 2008-and-newer Ford Escape, Mazda Tribute, and Mercury Mariner. The drier filters debris, dries the refrigerant with its desiccant, and protects the compressor — and this unit comes with the hose line attached, ready to install. A direct replacement for Ford/Mazda 8L8Z/ZZD-061500 and Motorcraft YF3370.
Clean, dry refrigerant — and a protected compressor
The drier sits on the high side of the A/C system and does three jobs at once: it filters debris out of the refrigerant, dries the system with desiccant that absorbs moisture, and stores a reserve of refrigerant for steady flow.
Moisture is the enemy of an A/C system — it forms acids that corrode components and can freeze and block flow. When the desiccant saturates or the system is opened, the drier must be replaced. This unit comes with the hose line attached, so you replace the whole assembly in one step.
A direct-fit repair
Direct Ford/Mazda fit
Built for the Escape / Tribute / Mariner — replaces Ford/Mazda 19C836 / ZZD-061500 and Motorcraft YF3370.
Complete assembly
Comes with the hose line attached, so you install one assembly instead of piecing parts together.
Removes moisture
Fresh desiccant pulls water out of the system to head off acid, corrosion, and icing.
Protects the compressor
Filters debris and delivers clean, dry refrigerant to keep the compressor healthy.
Replace with the compressor
Always fit a fresh drier when the system is opened — cheap insurance for a new or existing compressor.
Wide interchange
Cross-references UAC, Motorcraft, Four Seasons, NAPA, and more — see the table below.
Vehicle compatibility
Built for the following. Confirm your year, engine, and A/C configuration (and the line connections) against your original before ordering.
| Make | Model | Years (approx.) |
|---|---|---|
| Ford | Escape | ~2008–2012 |
| Mazda | Tribute | ~2008–2011 |
| Mercury | Mariner | ~2008–2011 |
Confirm before ordering. Match your OE number (Ford/Mazda 8L8Z/9L8Z/BL8Z or ZZD/ZZC-061500) and the line connections to your vehicle — or call us with your VIN and we'll confirm.
OE & interchange numbers
Match your old drier against the numbers below.
| Brand | Part number(s) |
|---|---|
| Ford (OE) | 8L8Z-19C836-B · 8L8Z-19C836-C · 9L8Z-19C836-A · BL8Z-19C836-A · BL8Z-19C836-B |
| Mazda (OE) | 8L8Z-19C836-C · ZZD0-61500 / A / B · ZZC0-61500 / A |
| Motorcraft | YF3370 · YF3473 · YF3457 · YF3463 · YF37237 |
| UAC | HA 10894C |
| Four Seasons | 83143 · 83075 |
| NAPA | 218611 · TEM218611 |
| Omega | 3725273 |
| Ranshu | 173473 |
| Spectra Premium | 0210136 |
| Transtar AC | ACR3473 |
| Global Air | RD1292 |
| Global Parts Distributors | 1411864 |
| Advance Auto / CARQUEST | T83143 |
| AFI | 3131 |
Technical details
Renew these while the system's open
Any time you open the A/C system, replace the wear parts and set the oil:
Orifice tube / expansion valve
Replace the metering device with the drier so refrigerant flows correctly.
Shop metering devices →Retrolube POE · 861-2112
Top up with a premium POE lubricant and UV leak-detection dye for the recharge.
Shop the oil →Fit it right
The desiccant starts absorbing moisture as soon as the drier is opened to air, so timing matters.
Recover refrigerant
Recover the system charge before opening any line.
Keep it sealed
Leave the caps on the new drier until the moment of install.
Fit with new O-rings
Install the assembly with fresh O-rings and replace the metering device.
Evacuate & recharge
Set the correct oil, pull a deep vacuum, then charge to the vehicle's specification.
Drier FAQ
What does the drier do?
Will it fit my vehicle?
Does it come with the hose?
When should I replace it?
What does it replace?
Match your drier before you buy
Send us your year and OE number and we'll confirm the right drier and hose assembly for your Escape, Tribute, or Mariner.
Add to cart ↑ Confirm my fitmentFord®, Mazda®, Mercury®, Motorcraft®, and all manufacturer names and part numbers are trademarks of their respective owners and are listed for identification and cross-reference purposes only; their use does not imply affiliation or endorsement. This is a replacement drier with hose assembly. Confirm year, engine, A/C configuration, and line connections against your vehicle before ordering.
