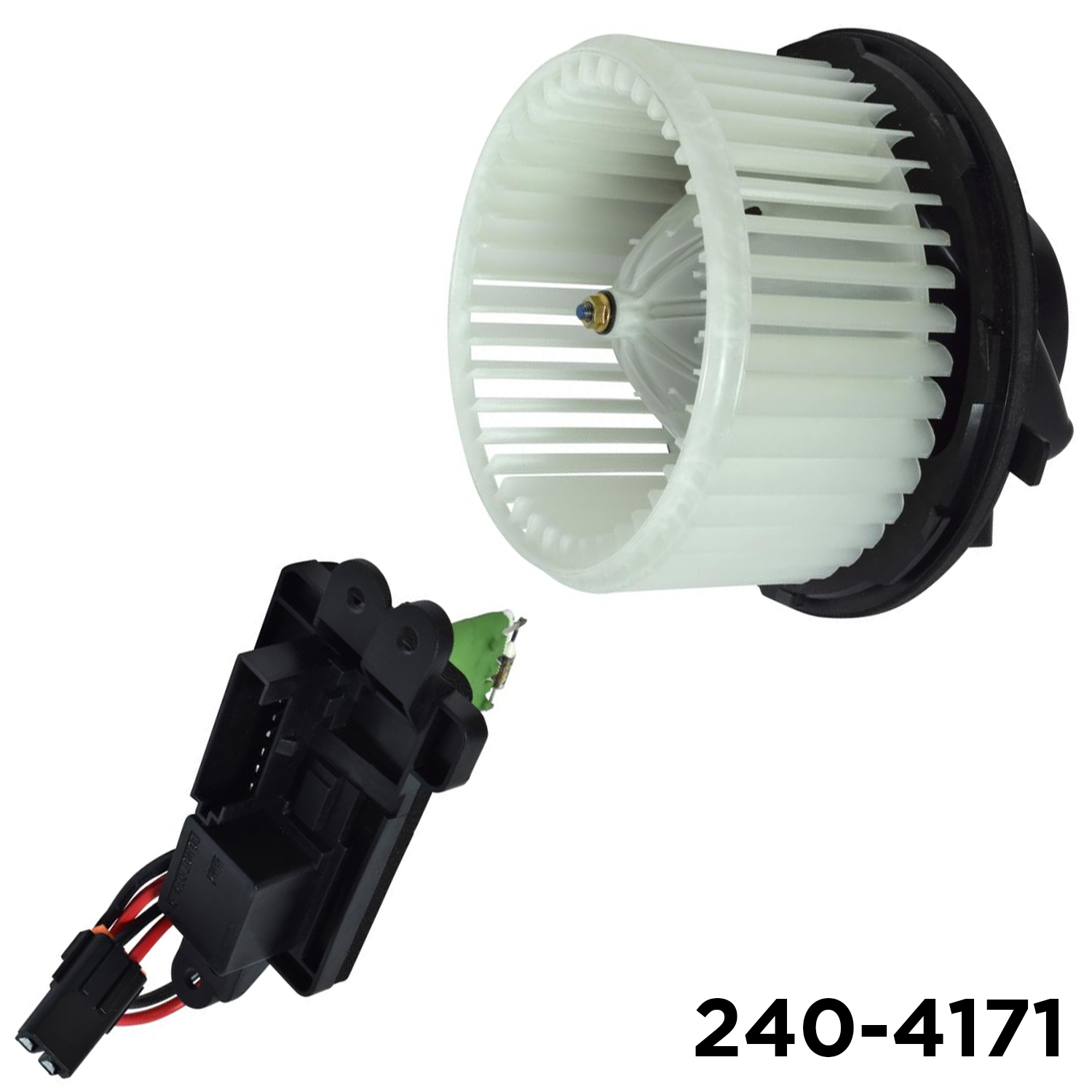

HVAC Blower Motor Kit


HVAC Blower Motor Kit

$109.14

Complete HVAC blower motor kit — a replacement blower motor plus its matching switch, so you replace both at once. Match by the specs and cross-reference numbers.

Type Blower motor + switch kit
Voltage 12V
Rotation CW
Wheel dia. 149 mm

Confirm your vehicle before ordering — send us your VIN if unsure.

SKU 240-4171 · Mesa, AZ · Call 480-507-2229 · Text 480-856-7833

SKU: 240-4171 Category:


Description

HVAC blower motor kit · motor + switch

HVAC Blower Motor Kit

A complete replacement kit that pairs a blower motor with its matching switch, so you replace both wear items with one part number. Match it to your vehicle using the specifications below and the cross-reference numbers.

12VCWWheel 149 mmComplete kit
HVAC Blower Motor Kit
Air Components 240-4171
What’s in the kit

Kit contents

This kit includes the following Air Components parts, which are also available separately:

Blower motor
240-5652
Switch
211-5345
At a glance

Key details

Voltage
12V
Rotation
CW
Wheel dia.
149 mm
Watts
174
Specifications

Kit specs

Blower motor

No. of Shafts1
Speed1
Motor Length (mm)121.9
Voltage12V
Wheel Diameter (mm)149
Shaft Length (mm)149.8
Length (mm)159
Outer Diameter (mm)168
Watts174
Connector Terminal Qty2
Terminal Qty2
Blade Qty41
Wheel Height (mm)75.3
Motor Diameter (mm)76.3
Shaft Diameter (mm)8
Height (mm)86.2
RotationCW
Connector GenderFemale
Connection TypeFIXED ON THE MOTOR
VentedN
Wire QtyN
Switch IncludedNo
Terminal TypeSpade
Cage Wheel IncludedYes
Flanged EndYes

Switch

Connector Quantity2
Wire Qty2
Bolt Hole Quantity3
Connector GenderFemale
Terminal GenderMale
Connector ShapeRectangle
Terminal TypeSpade
Wiring Harness IncludedYes
Kit part number240-4171

Specifications as published by Air Components. Match the blower motor’s rotation, voltage, wheel diameter and connector to your original, and confirm the switch matches your harness. Contact us if you need a detail confirmed before ordering.

Order

Order this kit

Add it to your cart below, or browse more blower parts. Not sure it’s the right one? Contact us and we’ll confirm the fit first.

Image Product Name SKU Price In Stock Quantity Add To Cart
HVAC Blower Motor Kit 240-4655 $103.98 In stock
HVAC Blower Motor Kit 240-4671 $199.40 In stock
HVAC Blower Motor Kit 240-4687 $265.52 In stock
HVAC Blower Motor Kit 240-4703 $106.42 In stock
HVAC Blower Motor Kit 240-4719 $188.48 In stock
HVAC Blower Motor Kit 240-4735 $140.48 In stock
HVAC Blower Motor Kit 240-4751 $131.12 In stock
HVAC Blower Motor Kit 240-4767 $208.64 In stock
Ready to replace it?

Add this blower motor kit to your cart

Motor plus matching switch in one kit — matched to the original by rotation, voltage, wheel size and connector.

Add to cart ↑
Questions & answers

FAQ

What’s included in this kit?
A replacement blower motor (part 240-5652) and its matching switch (part 211-5345). Buying the kit replaces both wear items at once; both parts are also sold separately.
How do I know this kit fits my vehicle?
Match the blower motor’s rotation, voltage, wheel diameter and connector to your original, and check the cross-reference numbers against your old parts. Use the vehicle finder on this page, or send us your VIN and we’ll confirm.
Can I buy just the motor or just the switch?
Yes — both components are stocked separately under the part numbers listed in the kit contents. The kit is the convenient way to replace both together.
Can you confirm fitment for me?
Yes — call, text or email our Mesa, AZ team with your vehicle details or your old part numbers and we’ll confirm the correct kit before you buy.
Questions? Contact us

Call, text, email or live chat

Talk to our team in Mesa, AZ — whichever way is easiest for you.

Additional information

Weight 10 lbs
Dimensions 13 × 10 × 10 in

Specs

Specifications

  • KIT: SWITCHES: 211-5345
  • KIT: BLOWER MOTORS: 240-5652
  • {BLOWER MOTORS}: No. of Shafts: 1
  • {BLOWER MOTORS}: Speed: 1
  • {BLOWER MOTORS}: Motor Length (mm): 121.9
  • {BLOWER MOTORS}: Voltage: 12V
  • {BLOWER MOTORS}: Wheel Diameter (mm): 149
  • {BLOWER MOTORS}: Shaft Length (mm): 149.8
  • {BLOWER MOTORS}: Length (mm): 159
  • {BLOWER MOTORS}: Outer Diameter (mm): 168
  • {BLOWER MOTORS}: Watts: 174
  • {BLOWER MOTORS}: Connector Terminal Qty: 2
  • {BLOWER MOTORS}: Terminal Qty: 2
  • {SWITCHES}: Connector Quantity: 2
  • {SWITCHES}: Wire Qty: 2
  • {SWITCHES}: Bolt Hole Quantity: 3
  • {BLOWER MOTORS}: Blade Qty: 41
  • {BLOWER MOTORS}: Wheel Height (mm): 75.3
  • {BLOWER MOTORS}: Motor Diameter (mm): 76.3
  • {BLOWER MOTORS}: Shaft Diameter (mm): 8
  • {BLOWER MOTORS}: Height (mm): 86.2
  • {BLOWER MOTORS}: Rotation: CW
  • {BLOWER MOTORS}: Connector Gender: Female
  • {SWITCHES}: Connector Gender: Female
  • {BLOWER MOTORS}: Connection Type: FIXED ON THE MOTOR
  • {SWITCHES}: Terminal Gender: Male
  • {BLOWER MOTORS}: Vented (Y/ N): N
  • {BLOWER MOTORS}: Wire Qty: N
  • {BLOWER MOTORS}: Switch Included: No
  • {SWITCHES}: Connector Shape: Rectangle
  • {BLOWER MOTORS}: Terminal Type: Spade
  • {SWITCHES}: Terminal Type: Spade
  • {BLOWER MOTORS}: Cage Wheel Included: Yes
  • {BLOWER MOTORS}: Flanged End: Yes
  • {SWITCHES}: Wiring Harness Included: Yes
