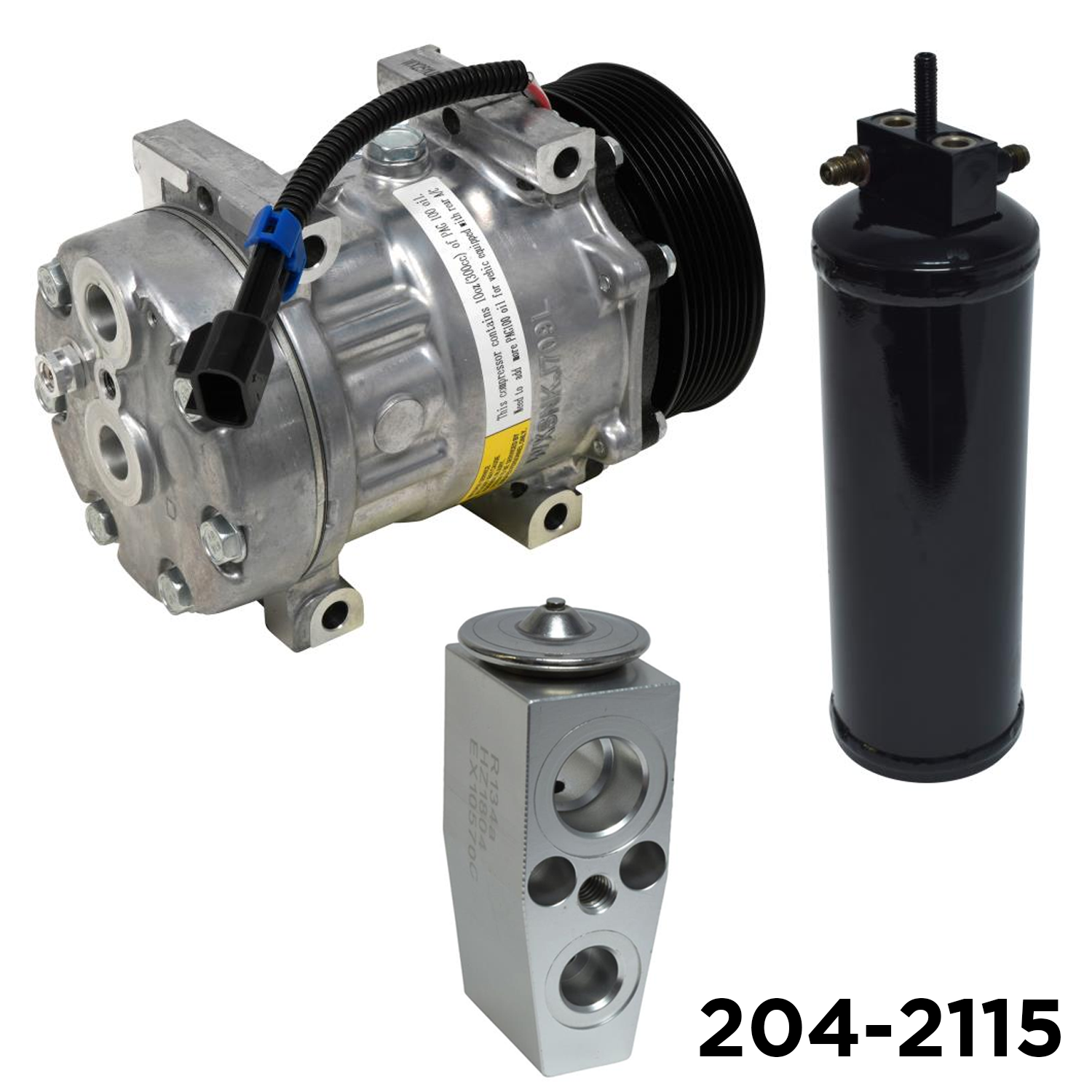

Short Compressor Kit


Short Compressor Kit

$342.30

SKU: 204-2115 Category:


Additional information

Weight 21 lbs
Dimensions 19 × 13 × 16 in

Cross References

Cross Reference

  • UAC: CK 1366
  • Alliance: ABPN83232531094
  • Alliance: N83232531094

Year Make Model Submodel Engine
Year Make Model Submodel Engine
Loading...

Specs

Specifications

  • KIT: COMPRESSORS: 204-1763
  • KIT: ACCUMULATORS/DRIERS: 207-5033
  • KIT: EXP VALVES/ORIF TUBE: 208-6171
  • {COMPRESSORS}: Mounting Flange Thickness
  • {COMPRESSORS}: Pulley Lip Diameter
  • {COMPRESSORS}: Switch Type
  • {COMPRESSORS}: Connector Quantity: 1
  • {COMPRESSORS}: Clutch Maximum Diameter: 109.8
  • {COMPRESSORS}: Pulley Ridge Diameter: 119
  • {EXP VALVES/ORIF TUBE}: Liquid Inlet (mm): 12
  • {EXP VALVES/ORIF TUBE}: Liquid Outlet (mm): 12
  • {COMPRESSORS}: Coil Clock Position: 12
  • {COMPRESSORS}: Coil Voltage: 12
  • {COMPRESSORS}: Casing Outside Diameter: 120
  • {COMPRESSORS}: Pulley Outside Diameter: 123
  • {COMPRESSORS}: Discharge Port Inside Diameter: 16.5
  • {COMPRESSORS}: Suction Port Inside Diameter: 16.5
  • {EXP VALVES/ORIF TUBE}: Suction Inlet (mm): 18
  • {EXP VALVES/ORIF TUBE}: Suction Outlet (mm): 18
  • {COMPRESSORS}: Terminal Qty: 2
  • {COMPRESSORS}: Wire Qty: 2
  • {COMPRESSORS}: Wire Gauge Measurement: 220
  • {ACCUMULATORS/DRIERS}: Height (mm): 257
  • {ACCUMULATORS/DRIERS}: Diameter (mm): 76
  • {COMPRESSORS}: Mounting Hole Quantity: 8
  • {COMPRESSORS}: Pulley Groove Quantity: 8
  • {ACCUMULATORS/DRIERS}: Inlet (mm): 8.5
  • {ACCUMULATORS/DRIERS}: Outlet (mm): 8.5
  • {COMPRESSORS}: Distance From Clutch To Mounting Fl: 82
  • {COMPRESSORS}: Distance Between Mounting Holes: 87
  • {COMPRESSORS}: Rotation: CW
  • {COMPRESSORS}: Hub Type: Leaf Spring
  • {COMPRESSORS}: Connector Gender: Male
  • {ACCUMULATORS/DRIERS}: Sight Glass (Y/ N): N
  • {COMPRESSORS}: Switch Included: No
  • {COMPRESSORS}: Thermal Or Non Thermal: non thermal
  • {COMPRESSORS}: Connector Shape: Oval
  • {COMPRESSORS}: Compatible Refrigerant Oil Type: PS-R1
  • {COMPRESSORS}: Refrigerant Type: R134A
  • {COMPRESSORS}: Compressor Type: SD7H15
  • {EXP VALVES/ORIF TUBE}: Liquid Inlet Style: Sealing Washer
  • {EXP VALVES/ORIF TUBE}: Liquid Outlet Style: Sealing Washer
  • {COMPRESSORS}: Pulley Belt Type: Serpentine
  • {COMPRESSORS}: Terminal Type: Spade
  • {COMPRESSORS}: Mounting Type: Tangent
  • {COMPRESSORS}: Clutch Included: Yes
  • {COMPRESSORS}: Oil Filled: Yes
  • {COMPRESSORS}: Switch Service Port: Yes
