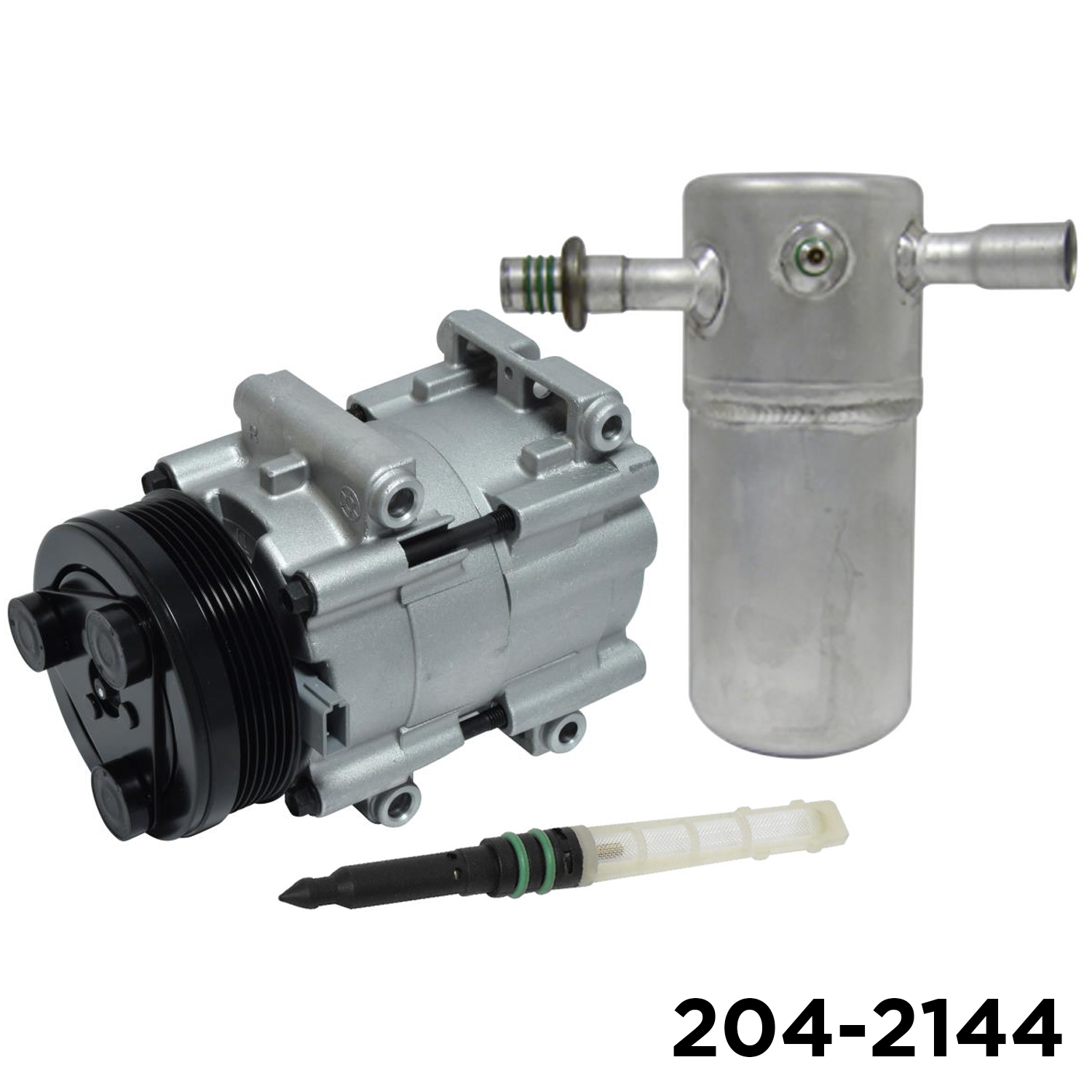

Short Compressor Kit

Specs

Specifications

• KIT: COMPRESSORS: 204-1089
• KIT: ACCUMULATORS/DRIERS: 207-596
• KIT: EXP VALVES/ORIF TUBE: 208-291-1
• {EXP VALVES/ORIF TUBE}: Screen Micron Rating: 100 mesh
• {EXP VALVES/ORIF TUBE}: Length (mm): 102
• {COMPRESSORS}: Pulley Diameter (mm): 114
• {COMPRESSORS}: Voltage: 12
• {ACCUMULATORS/DRIERS}: Inlet (mm): 21
• {COMPRESSORS}: Belt Width (mm): 22
• {ACCUMULATORS/DRIERS}: Height (mm): 220
• {COMPRESSORS}: Clocking: 3
• {COMPRESSORS}: Grooves: 6
• {EXP VALVES/ORIF TUBE}: Inner Diameter (mm): 6.2
• {ACCUMULATORS/DRIERS}: Width (mm): 89
• {EXP VALVES/ORIF TUBE}: Diameter (mm): 9.8
• {EXP VALVES/ORIF TUBE}: Tube Outside Diameter: 9.8
• {EXP VALVES/ORIF TUBE}: Color: Black
• {COMPRESSORS}: Compressor Type: FS10
• {ACCUMULATORS/DRIERS}: Inlet Type: FSL
• {ACCUMULATORS/DRIERS}: Outlet Fitting: OR
• {EXP VALVES/ORIF TUBE}: Material Type: Plastic
• {COMPRESSORS}: Compressor Mount: Tangent
