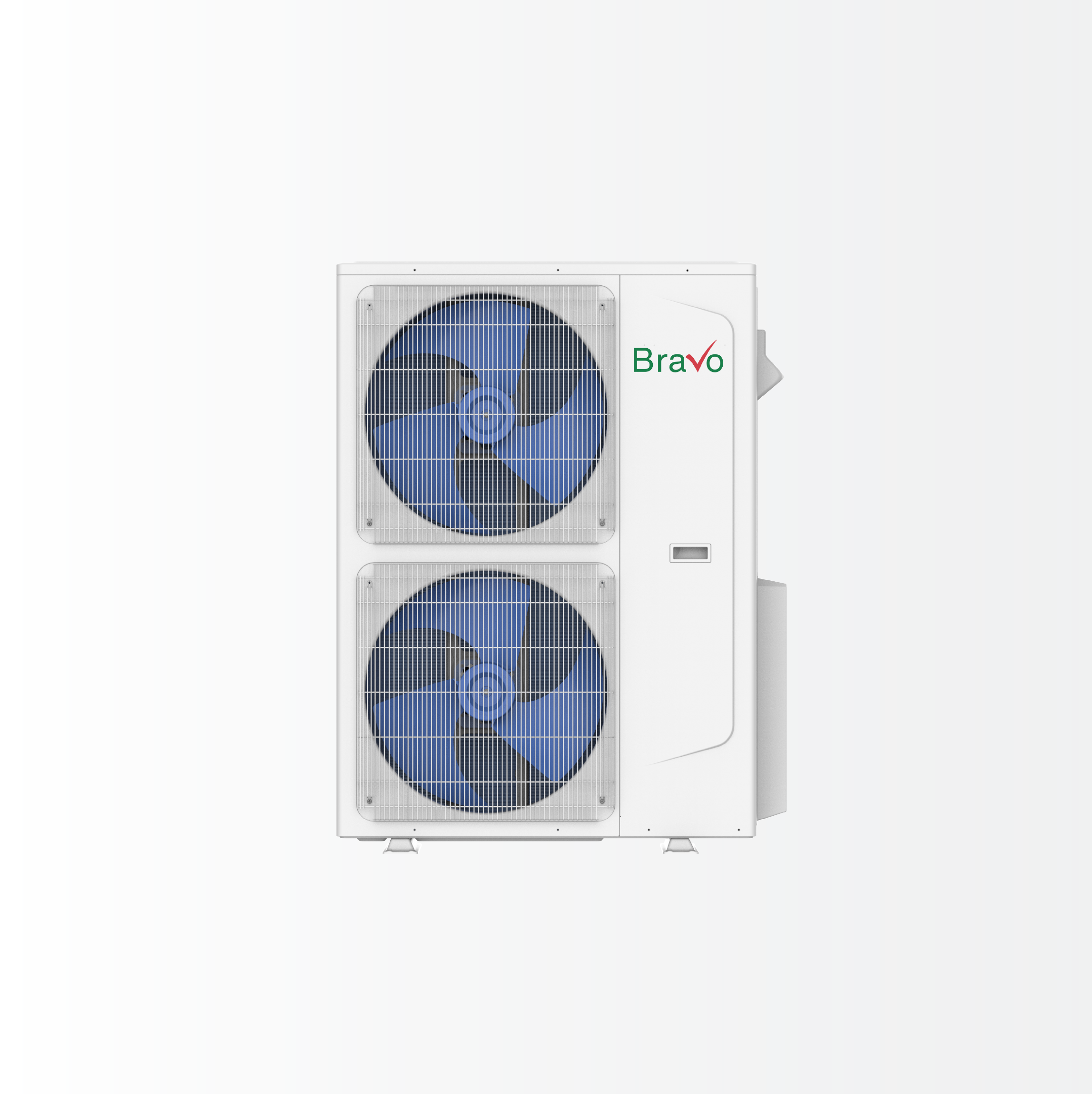

Bravo Milano 42,000 BTU Multi-Zone Outdoor Unit
The flagship of the Milano line — a 5-zone, 42,000 BTU inverter heat-pump condenser rated up to 24 SEER2 on low-GWP R32 refrigerant. It cools up to 125°F and heats down to −13°F, and drives up to five Bravo Milano indoor units from a single outdoor unit.
One outdoor unit, up to five rooms
This is the outdoor condensing unit of a ductless multi-zone mini-split system. It carries the inverter compressor and heat exchanger, and connects by refrigerant line set to up to five Bravo Milano indoor units — each with its own thermostat — so you cool and heat rooms independently without ductwork.
At 42,000 BTU (3.5 tons) it’s the largest and most efficient outdoor unit in the Milano range — built for whole-home or large multi-room projects. The inverter compressor modulates instead of cycling, holding temperature steadily at up to 24 SEER2 cooling and 10.5 HSPF2 heating on R32.
The numbers that matter
Why it’s a strong choice
42,000 BTU, up to 5 zones
The biggest unit in the Milano line — 3.5 tons of inverter heat-pump capacity feeding up to five indoor zones from one outdoor unit.
Up to 24 SEER2 inverter
The most efficient outdoor unit in the range: up to 24 SEER2 cooling and 10.5 HSPF2 heating, from a modulating DC-inverter compressor.
Heats down to −13°F
A true heat pump: it cools in summer and heats in winter, with rated operation down to −13°F outdoor air.
R32, lower GWP
Runs on R32 — a modern refrigerant with strong efficiency and a lower global-warming potential than R-410A.
60 dB(A) outdoor
Variable-speed inverter operation keeps a 3.5-ton unit reasonable for its output.
Precharged, adapters included
Shipped precharged for 24.6 ft of line set, with 1/2″ and 5/8″ gas adapters in the box.
Technical specs
Confirm the port/zone configuration. Bravo lists this as a 5-zone unit; we’ll verify the exact connections for your full build before you order. And remember it’s the outdoor unit only — pair it with Bravo Milano indoor units and line sets (sold separately). Tell us your rooms and we’ll match a complete multi-zone system.
Add the Bravo Milano 42K outdoor unit
The flagship 5-zone inverter heat pump in the Milano line, up to 24 SEER2 on R32 — pair it with Bravo Milano indoor units and line sets for a complete ductless system.
Add to cart ↑ Finance your equipmentFAQ
Is this a complete system?
How many rooms can it run?
How many ports does it have?
Does it heat as well as cool?
What refrigerant does it use?
What electrical does it need?
What indoor units pair with it?
Call, text, email or live chat
Tell us your rooms and we’ll help you match indoor units, line sets and this outdoor unit into a complete system. Reach our Mesa, AZ team whichever way is easiest.
Specifications are from the manufacturer’s published Bravo Milano documentation and are subject to change; confirm final specs, port/zone configuration and warranty terms before installation. This is the outdoor condensing unit only — indoor units and line sets are sold separately. Bravo and Milano are trademarks of their respective owner. Installation should be performed by a qualified HVAC technician.
