Description

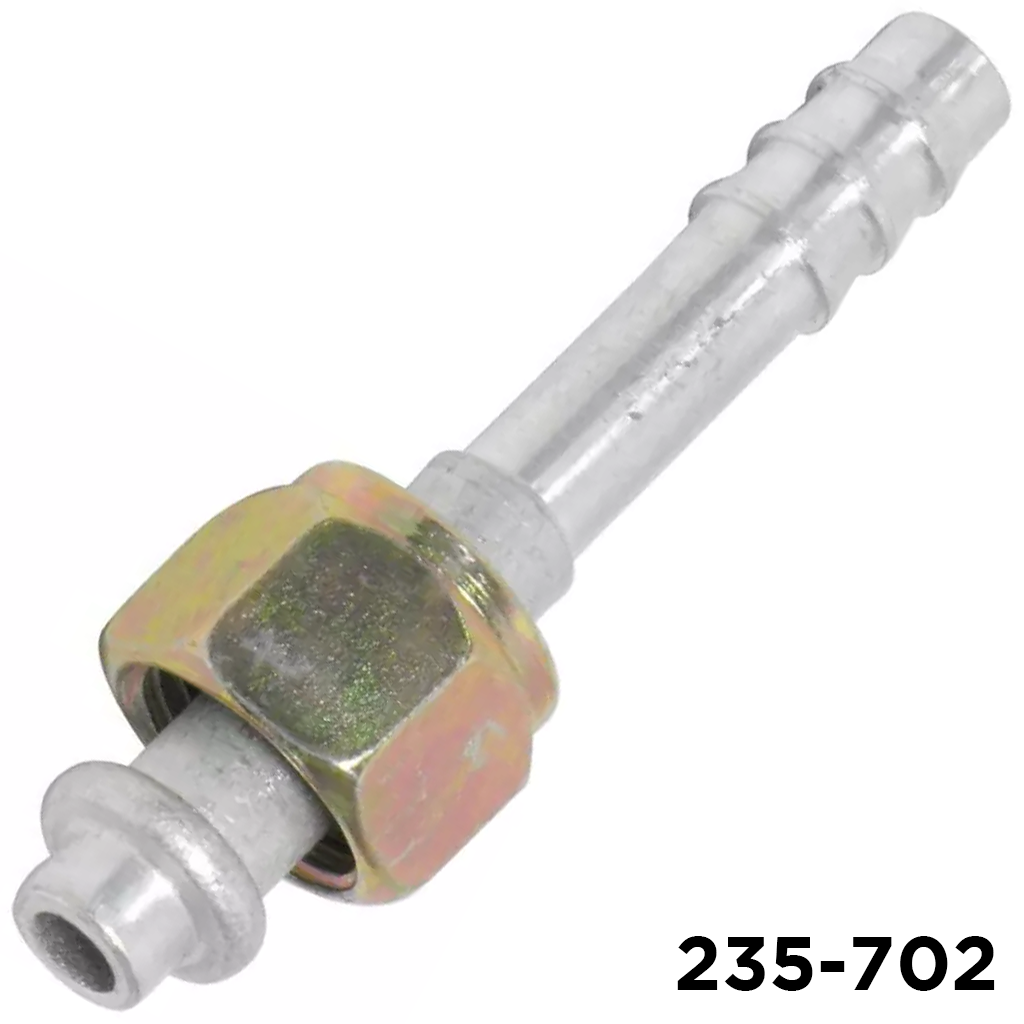

Barbed straight fitting — #6 female O-ring × #6 hose
A straight barbed A/C hose fitting with a #6 female O-ring swivel on one end and a #6 hose barb on the other. The barbed, clamp-on design pushes onto the hose and secures with a hose clamp or ferrule — no hydraulic crimper required — which makes it ideal for field repairs and quick builds. The swivel nut spins freely to line up your connection without twisting the hose.
Barbed (clamp-on) vs. beadlock (crimp). This barbed fitting secures with a hose clamp or ferrule — no hydraulic crimper needed — so it's perfect for roadside and shop repairs. If you want a permanent, OE-style crimped connection (and have a crimper), use the matching beadlock version (235-1502) instead.
Know exactly what you're ordering
The no-crimper repair fitting
No crimper needed
The barbed design clamps on with a hose clamp or ferrule — no hydraulic crimper, so you can build a hose anywhere.
#6 female O-ring swivel
The swivel nut threads onto a #6 male insert O-ring fitting and seals with an O-ring — spin it to align without twisting the hose.
#6 hose barb
The barbed end pushes onto #6 A/C hose and grips to hold pressure once clamped.
Field-repair friendly
The go-to for roadside fixes, ag/off-road repairs, and shops without a beadlock crimper.
Secure your way
Finish it with a screw-type hose clamp or a crimp-shell ferrule — both fit this fitting.
Wide interchange
Cross-references UAC, Four Seasons, NAPA, Visteon, and more — see the table below.
The parts that finish the joint
To seal and secure this barbed fitting on #6 hose, add:
#6 O-ring · 233-3024
The HNBR #6 O-ring that seals the female O-ring swivel connection (10-pack).
Shop the O-ring →#6 ferrule / crimp shell · 235-931
The crimp-shell ferrule that locks the barb onto the hose.
Shop the ferrule →Hose clamp · 221-964
A screw-type A/C hose clamp for 6–8 hose — the no-tools-needed way to secure the barb.
Shop the clamp →Need hose? Browse #6 A/C barrier hose. Building lots of hoses? See our hose repair & manufacturing service.
Interchange & cross-reference numbers
| Brand | Part number(s) |
|---|---|
| UAC | FT 8301C |
| Four Seasons | 14406 |
| NAPA | 206056 · TEM206056 |
| Compressor Works | 429207 · 710671 |
| Atco | 9301 |
| Visteon | 230001 |
Technical specs
Build the joint in four steps
Cut the hose
Cut #6 A/C hose square to length with a sharp blade.
Push on the barb
Slide the ferrule or clamp on first, then push the hose fully onto the barb.
Secure it
Crimp the ferrule or tighten the hose clamp to lock the hose to the barb.
Seal & connect
Fit a fresh #6 O-ring on the swivel, thread it to the mating fitting, and pressure-test.
Barbed fitting FAQ
Barbed vs. beadlock — what's the difference?
Do I need a crimper?
What O-ring does it use?
What does “#6 female O-ring” mean?
What secures the hose to the barb?
Shop barbed fittings
Browse barbed A/C hose fittings and set your quantities in one place.
| Image | Product Name | SKU | Price | In Stock | Quantity | Add To Cart |
|---|---|---|---|---|---|---|
|
Fitting Barb Straight #6 Female Oring x #6 Hose | 235-702 | $5.80 | -3 in stock | ||
|
Fitting Barb Straight #8 Female Oring x #8 Hose | 235-703 | $4.93 | 5 in stock | ||
|
Fitting Barb Straight #10 Female Oring x #10 Hose | 235-704 | $5.53 | -22 in stock | ||
|
Fitting Barb Straight #12 Female Oring x #12 Hose | 235-705 | $13.93 | -12 in stock | ||
|
Fittings Barb 90 Degree #6 Female Oring x #6 Hose | 235-710 | $3.73 | -9 in stock | ||
|
Fitting Barb 90 Degree #8 Female Oring x #8 Hose | 235-711 | $4.40 | 526 in stock | ||
|
Fitting Barb 90 Degree #10 Female Oring x #10 Hose | 235-712 | $6.33 | -84 in stock | ||
|
Fitting Barb 90 Degree #12 Female Oring x #12 Hose | 235-713 | $13.73 | -10 in stock |
Match your fitting before you buy
Size, end type, and hose have to match. Tell us your connection and hose size and we'll confirm the right barbed or beadlock fitting.
Add to cart ↑ Hose manufacturingAll manufacturer names and part numbers are trademarks of their respective owners and are listed for identification and cross-reference purposes only; their use does not imply affiliation or endorsement. Confirm size, end type, thread, and hose against your application before ordering. Pressure-test every hose assembly before returning it to service.
