Description
Wire the mini-split. Skip the conduit.
Southwire EZ-IN™ Mini-Split Shielded Cable is a UL Listed, 600 V Type MC cable built for ductless installs — run it indoors or out, wet or dry, with no conduit and no cable tray. The foil shield keeps inverter and line noise out of your communication signal.
Conduit and cable tray cost you labor. There's a code-compliant shortcut.
The classic way to power a ductless head means pulling individual THHN through conduit, or running whip plus tray. EZ-IN puts shielded conductors inside lightweight interlocked armor, so you route it like a whip — fished, surface-run, concealed or exposed — and stay inside the NEC without the conduit.
Conduit & pull
- Bend and mount conduit, then pull individual conductors
- Cable tray or raceway to satisfy the code
- Extra fittings, extra labor hours per head
- Unshielded runs can pick up inverter and line noise
EZ-IN™ shielded MC
- Armored cable installs with no conduit or tray
- Fished, embedded, concealed or exposed — indoor or out
- Anti-short bushing not required — faster terminations
- Foil shield + drain wire guards the comm signal
Purpose-built for ductless mini-split wiring
Everything about this cable is tuned to the mini-split job — from the shield to the armor to the sunlight-resistant jacket.
No conduit needed
Type MC armored construction installs to the NEC without conduit or cable tray — fished, surface-mounted, concealed or exposed.
Shielded
Aluminum foil shield with a tinned-copper drain wire guards against electrical noise and interference from nearby cables — protecting the mini-split's communication signal.
Lightweight armor
Aluminum interlocked armor gives real mechanical protection while staying light and easy to handle and route — far less weight than steel.
Indoor or outdoor
Sunlight-resistant PVC jacket, rated for wet locations per NEC 330.10(11) and for direct burial — run it right to the outdoor condenser.
EZ-IN™ ease
No anti-short bushing required, so terminations go faster. Pair it with Southwire's mini-split fittings and tools for a clean, quick rough-in.
Made in USA
UL Listed and NEC-compliant, with a Buy American option — specify "Made in the USA Only" to keep your project spec-compliant.

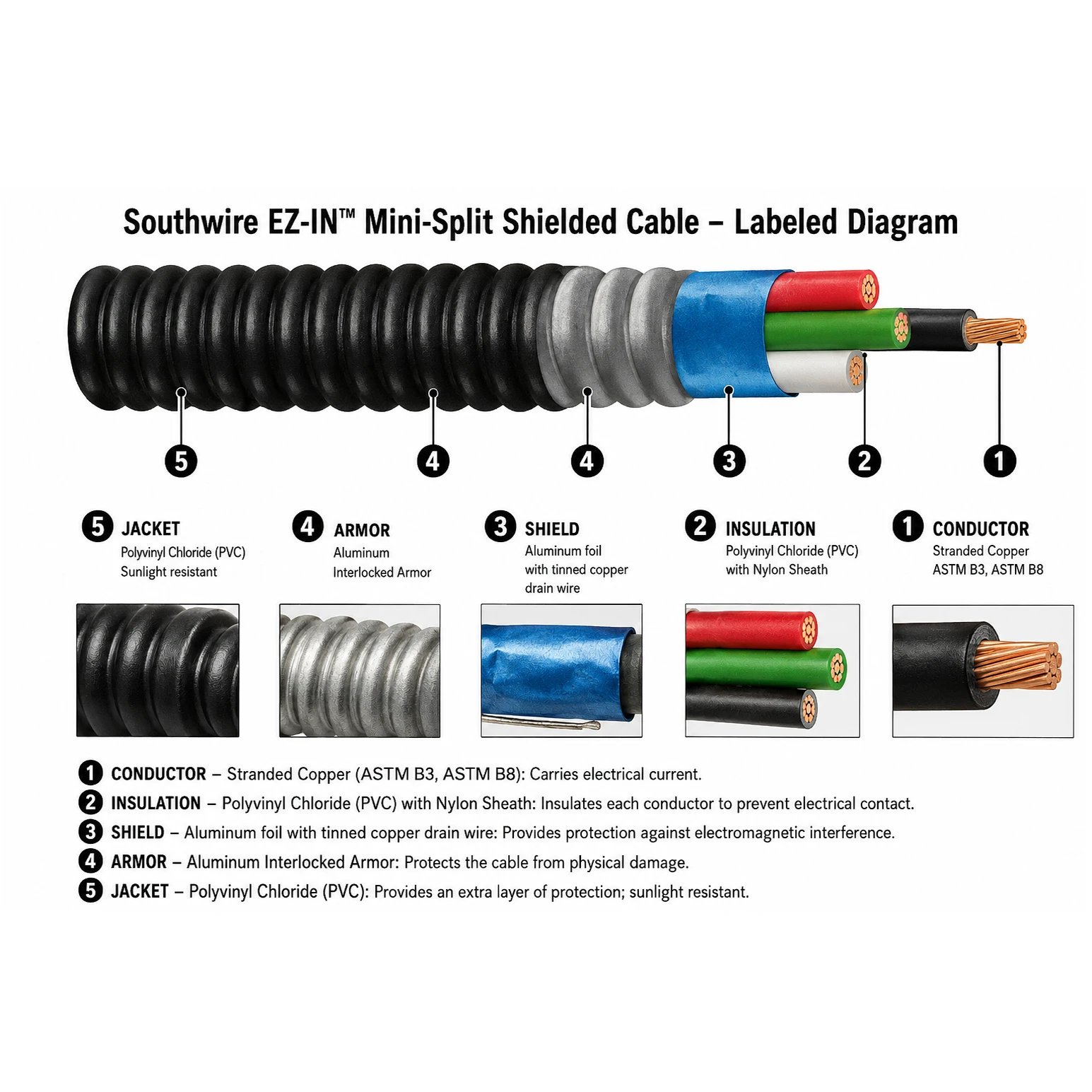

Five layers, one pull
- 1
Conductor
Stranded Class B compressed copper per ASTM B3 & B8.
- 2
Insulation
PVC with nylon sheath — THHN/THWN/TFN, rated 90°C dry / 75°C wet.
- 3
Shield
Aluminum foil with an 18 AWG 19-strand tinned-copper drain wire.
- 4
Armor
Lightweight aluminum interlocked armor for mechanical protection.
- 5
Jacket
Sunlight-resistant PVC — suitable for wet locations and direct burial.
Specifications
Figures below are for the 14 AWG / 4-conductor shielded build (SPEC 60422). Always size and protect the circuit per the NEC and the equipment's install manual.
Ampacity per 2023 NEC Table 310.16; OCPD for 14 AWG Cu is limited to 15 A per NEC 240.4(D). See NEC 310.15 & 110.14(C). 12 AWG and 10 AWG builds also available in the EZ-IN line.
One cable, indoors and out
EZ-IN Mini-Split MC is listed for a wide range of installation conditions — including some genuinely harsh ones.
Built for tough environments. Suitable where exposed to cinder fills, strong chlorides, caustic alkalis, or vapors of chlorine or hydrochloric acid. Always confirm the application against NEC Article 330 and local code before installing.
Pick the gauge and the length
All builds are 4-conductor shielded Type MC. Choose the conductor gauge for the circuit, then the put-up for the job.
14, 12 & 10 AWG
Four-conductor shielded (black, red, white, green ground). Size to the head's circuit and overcurrent protection.
- 14 AWG — 15 A circuit (SPEC 60422)
- 12 AWG — 20 A circuit
- 10 AWG — 30 A circuit
- All shielded, 600 V, 90°C dry / 75°C wet
Coils & reels
From a coil for a single head to a 1,000 ft reel for the crew — grab what the job needs.
- 50 ft coil — single-head jobs
- 100 & 250 ft reels — multi-head or shop stock
- 1,000 ft reel — high-volume installers
- Black sunlight-resistant jacket
EZ-IN™ Mini-Split cable
Shielded Type MC in the gauge and put-up you need — ready to add to your order.
| Image | Product Name | SKU | Price | In Stock | Quantity | Add To Cart |
|---|---|---|---|---|---|---|
|
Southwire EZ-IN 14/4 Shielded Stranded Mini-Split Cable — 14 AWG 4-Conductor 600V Type MC, Black – Per Foot | 59351202 | $4.65 | Out of stock | – | |
|
|
Southwire EZ-IN 14/4 Shielded Stranded Mini-Split Cable — 14 AWG 4-Conductor 600V Type MC, Black – 25 Feet | 59351203-25 | $98.83 | Out of stock | – | |
|
|
Southwire EZ-IN 14/4 Shielded Stranded Mini-Split Cable — 14 AWG 4-Conductor 600V Type MC, Black – 50 Feet | 59351203-50 | $177.80 | Out of stock | – | |
|
|
Southwire EZ-IN 14/4 Shielded Stranded Mini-Split Cable — 14 AWG 4-Conductor 600V Type MC, Black – 100 Feet | 59351203-100 | $355.60 | Out of stock | – | |
|
|
Southwire EZ-IN 14/4 Shielded Stranded Mini-Split Cable — 14 AWG 4-Conductor 600V Type MC, Black – 250 Feet | 59351203-250 | $619.73 | Out of stock | – |
Listed, rated and spec-compliant
The credentials your inspector and your spec will look for.
Listings
- UL Listed — Metal-Clad Cable (PJAZ)
- UL 83 — Thermoplastic Insulated Wire
- UL 1569 — Metal-Clad Cables
Code & spec
- NFPA 70 (NEC), Article 330
- Federal Spec A-A59544 (formerly J-C-30B)
- Wet-location rated per NEC 330.10(11)
Materials & sourcing
- ASTM B3 / B8 / B33 copper
- RoHS-3 compliant
- Buy American (49 U.S.C. § 5323(j))
Specify "Made in the USA Only" when ordering to ensure a Buy American–compliant product. Confirm current listings and ampacity against the latest NEC and the manufacturer's spec sheet (SPEC 60422) before installation.
Rough in the whole mini-split from one supplier
Get EZ-IN™ shielded cable in the gauge and put-up you need — and pair it with FastPipe® line sets for a complete refrigerant-and-electrical rough-in. Questions on sizing or stock? Our team can help.
EZ-IN™ and Southwire® are trademarks of Southwire Company, LLC. Specifications, ratings, listings and part numbers are those published by the manufacturer (SPEC 60422) and are provided for reference; confirm current details, ampacity and code compliance before installation. Installation must follow the NEC (NFPA 70) and all applicable local codes, performed by a qualified electrician.
