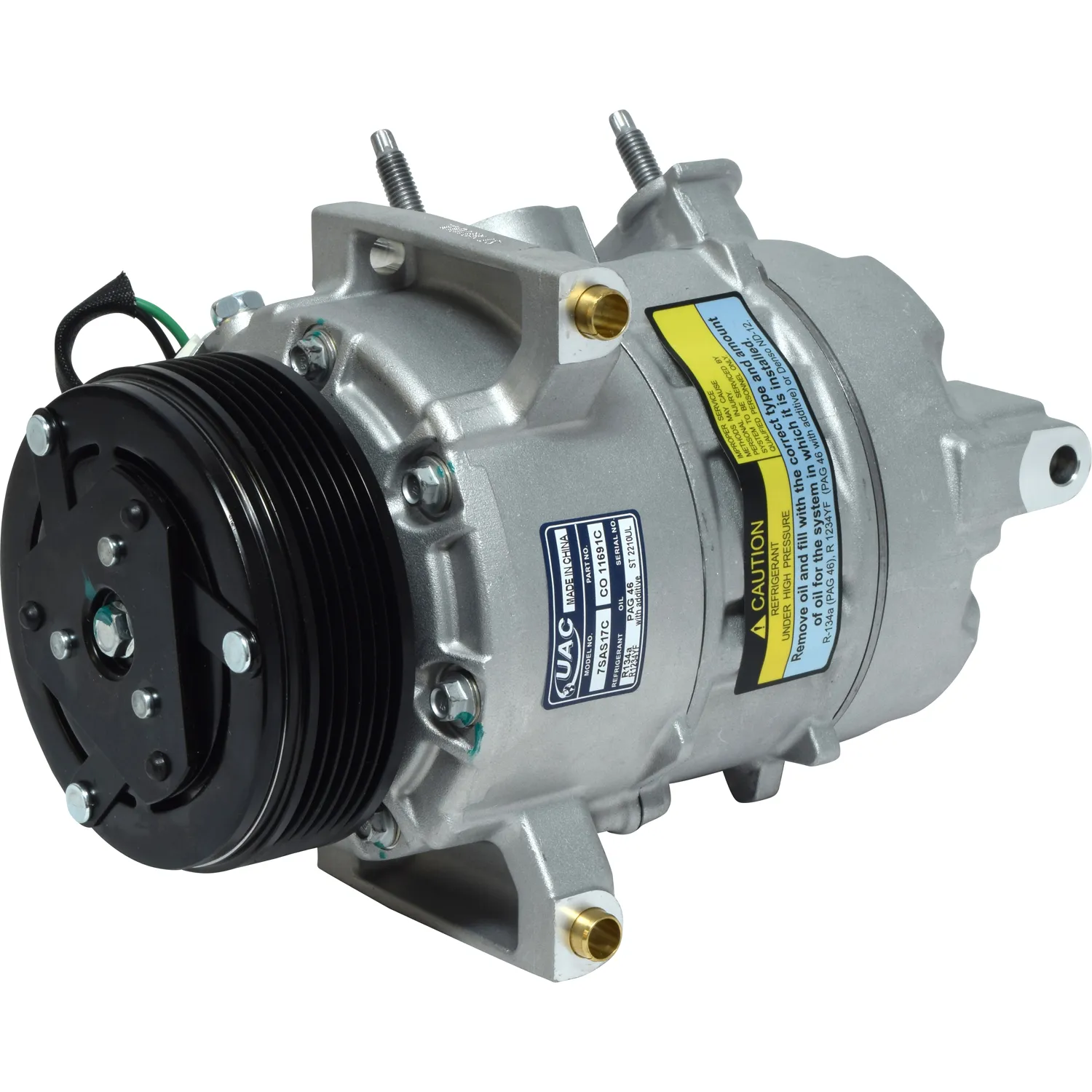

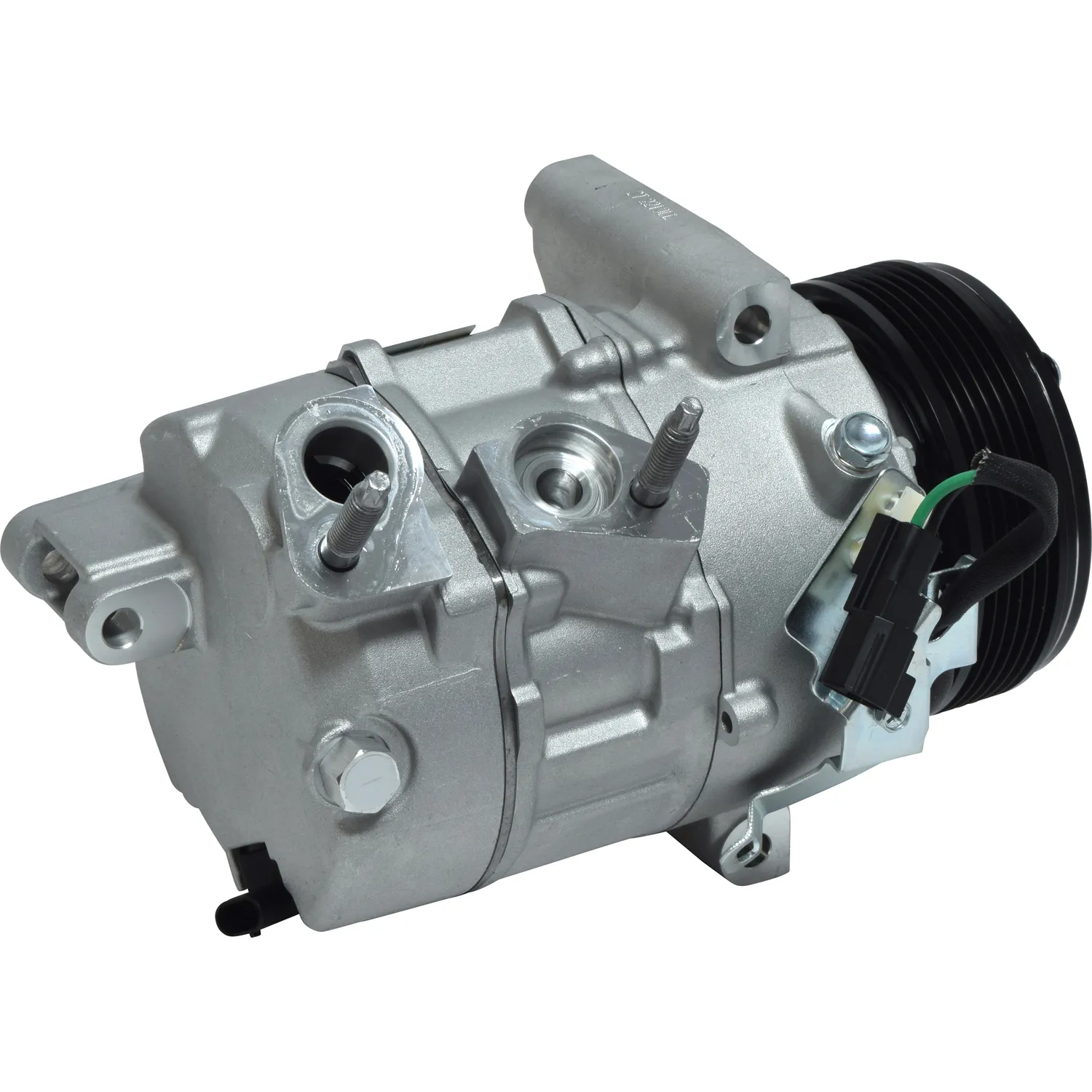

7SAS17C A/C compressor — Ford Ranger (2019–2023)
A complete 7SAS17C compressor assembly with clutch, built to OE specification for the 2019–2023 Ford Ranger. Ships ready to bolt on — 6-groove clutch, 109 mm pulley, 12 volt. A direct replacement for UAC CO 11691C and Motorcraft YCC612.
Confirm these before you order
Compressors that look alike can differ at the clutch and ports. Check your original against this configuration:
Confirm before ordering. Match the clutch groove count, pulley diameter, and port layout to your original — or call us with your VIN and we’ll confirm the right compressor.
A direct-fit replacement
OE-spec fit
Built to original-equipment specification for the 2019–2023 Ford Ranger — replaces UAC CO 11691C and Motorcraft YCC612.
Clutch included
Comes as a complete assembly with the 6-groove, 12 V clutch fitted — no separate clutch to source.
Denso-style build
Cross-references the Denso 447250-4442 / 4441 units for a proven, direct-fit replacement.
Wide interchange
Cross-references UAC, Ford, Motorcraft, Four Seasons, and more — see the table below.
Restores cooling
Brings the A/C back to full output when a worn or seized compressor has quit.
Complete the job right
Pair with a fresh drier, metering device, and the correct oil when the system is opened.
Vehicle compatibility
Built for the following. Confirm your year, engine, and compressor configuration against your original before ordering.
| Make | Model | Years |
|---|---|---|
| Ford | Ranger | 2019–2023 |
Confirm before ordering. Match your Ford or Motorcraft number and the clutch/port layout to your original, or call us with your VIN and we’ll confirm.
OE & interchange numbers
Match your old compressor against the numbers below.
| Brand | Part number(s) |
|---|---|
| UAC | CO 11691C |
| Ford (OE) | KB3B-19D629-AC · KB3B-19D629-AB · KB3B-19D629-BB · KB3Z-19703-A · KB3Z-19703-B · KB3Z-19703-C |
| Motorcraft | YCC612 · YCC611 · YCC547 |
| Denso | 447250-4442 · 447250-4441 |
| Four Seasons | 168331 |
| Omega | 20-22298 |
| Global Parts Distributors | 7513438 |
| Ranshu | 141720FD · 141720C · 141720NC |
Technical details
Renew these while the system’s open
Any time you replace a compressor, renew the wear parts and set the oil — it protects your new compressor and your warranty:
Accumulator / drier
Always replace the drier with the compressor so moisture and debris don’t reach the new unit.
Shop driers →Orifice tube / expansion valve
Replace the metering device so refrigerant flows correctly and debris is caught.
Shop metering devices →A/C oil & UV dye
Set the correct oil charge for your system and add UV dye to catch future leaks fast.
Shop oil →Fit it right
A new compressor fails fast if the system isn’t flushed and the oil isn’t set. Do it in order:
Recover & flush
Recover the charge, then flush the system to clear debris from any prior compressor failure.
Replace wear parts
Fit a new drier and metering device, and new O-rings at every connection you open.
Set the oil
Measure and set the correct oil charge for the system before install.
Evacuate & recharge
Pull a deep vacuum, then charge to the vehicle’s specification.
Add to your order
| Image | Product Name | SKU | Price | In Stock | Quantity | Add To Cart |
|---|---|---|---|---|---|---|
|
Condenser Manifold Fitting · #6 Hose @ 3 O'clock · Custom / LS Swap | 234-544 | $47.25 | 47 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 6 O'clock · Custom / LS Swap | 234-545 | $47.25 | 45 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 9 O'clock · Custom / LS Swap | 234-546 | $47.25 | 48 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 3 O'clock · 10S20F/10S17F | 234-547 | $47.25 | 32 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 6 O'clock · 10S20F/10S17F | 234-548 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 9 O'clock · 10S20F/10S17F | 234-549 | $47.25 | 42 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 3 O'clock · 10S20F/10S17F | 234-550 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 6 O'clock · 10S20F/10S17F | 234-551 | $47.25 | 45 in stock |
Compressor FAQ
Does it come with the clutch?
Will it fit my Ranger?
What does it replace?
Do I need to replace anything else?
Is this the same as the Explorer 7SAS17C?
Match your compressor before you buy
Send us your year and VIN and we’ll confirm the right 7SAS17C compressor and the parts to complete the repair.
