Description

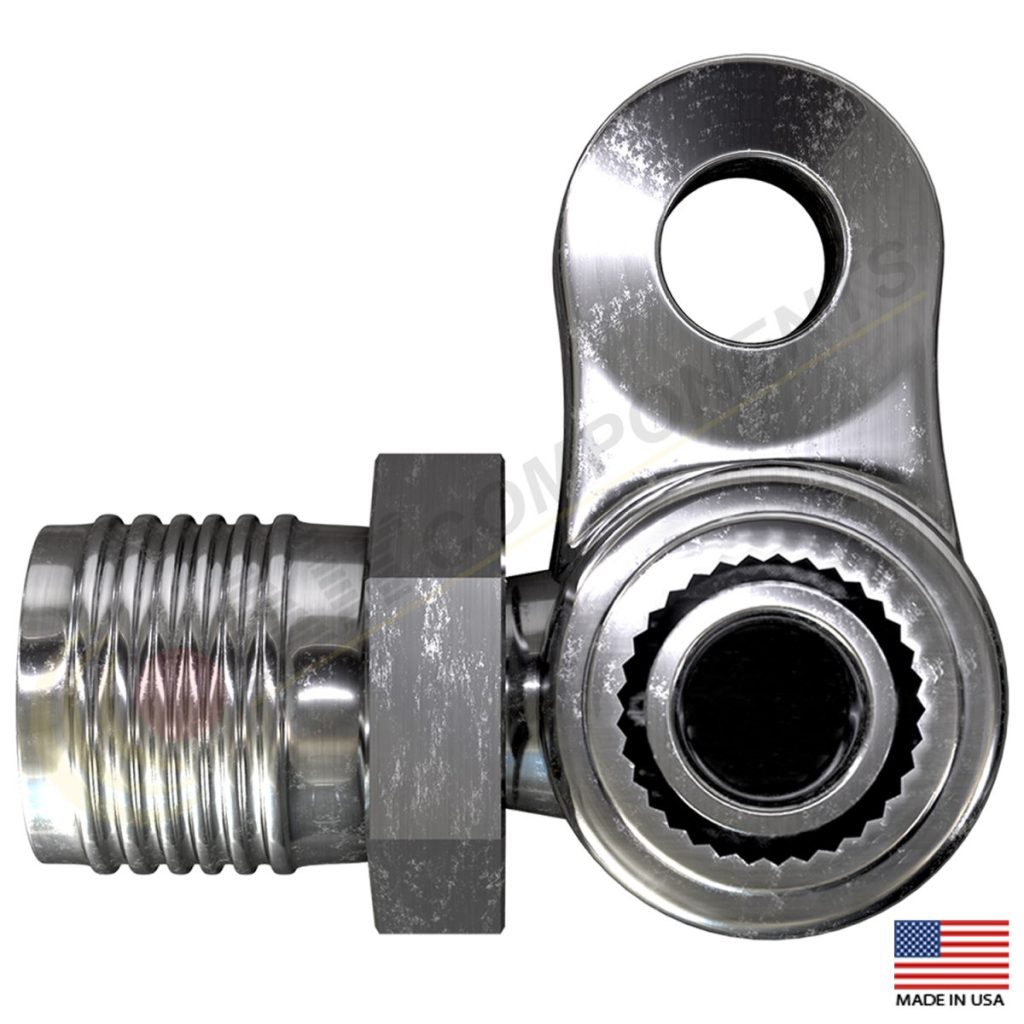

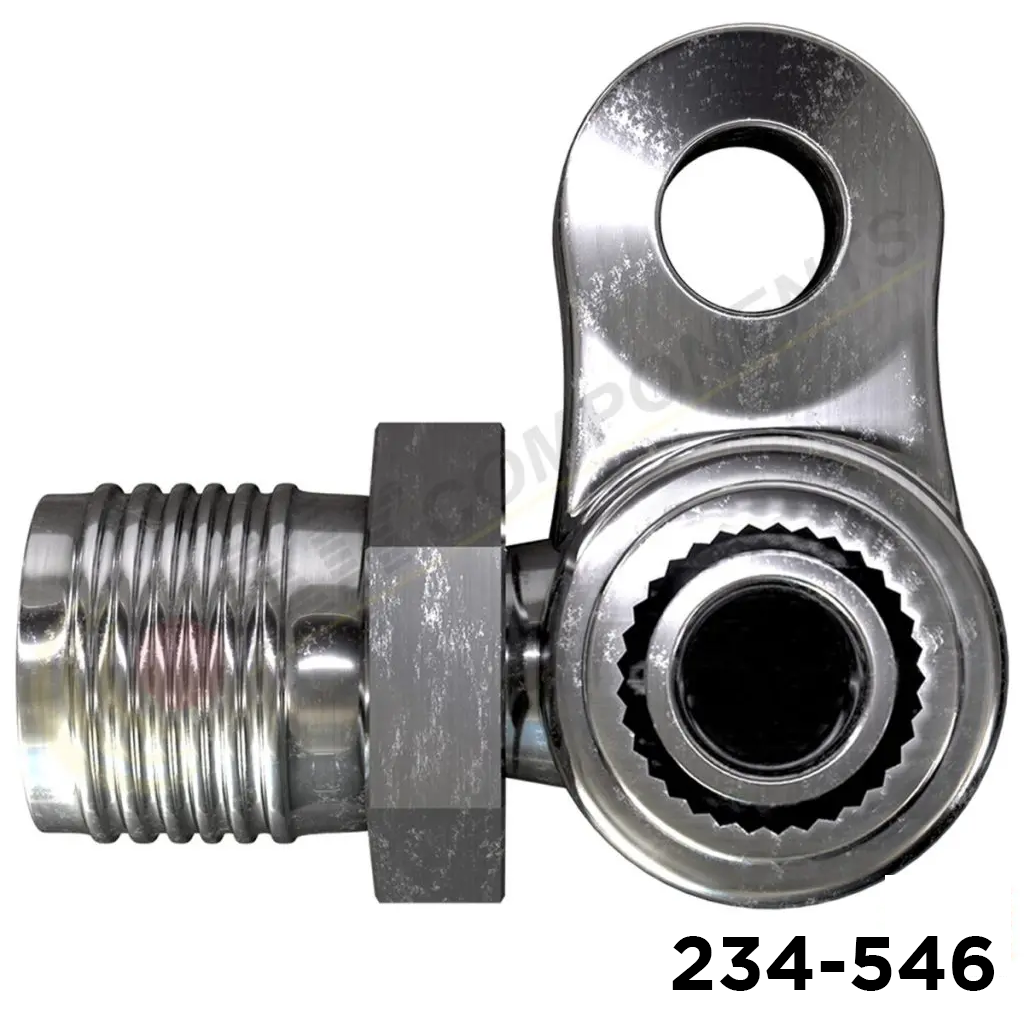

Condenser manifold fitting — #6 hose @ 9 o'clock
A bolt-on condenser manifold fitting that mounts to the condenser port and converts it to a #6 hose, with the outlet aimed out to the other side (toward 9 o'clock). It's the condenser end of a custom A/C system — ideal for LS engine swaps where you're building your own lines and need a clean, routable hose connection at the condenser.
The condenser end of your custom line
On a custom or engine-swap A/C build, the condenser needs a clean hose connection that routes where your car needs it — not where a factory hard line went. This fitting bolts to the condenser port and gives you a #6 hose connection pointed to the other side.
Build the line to the exact length and angle your swap needs, from the condenser to the compressor or drier, for a tidy, leak-free install.
Condenser fitting, compressor high & low — every clock position
This LS-swap A/C fitting family covers the condenser (#6) and the compressor high (#8) and low (#10) sides, each at 3, 6, or 9 o'clock. This page is the condenser fitting, #6 @ 9 o'clock.
| Configuration | 3 o'clock | 6 o'clock | 9 o'clock |
|---|---|---|---|
| Condenser fitting · #6 | 234-544 → | 234-545 → | This page |
| Compressor high · #8 | 234-547 → | 234-548 → | 234-549 → |
| Compressor low · #10 | 234-550 → | 234-551 → | 234-552 → |
The condenser fitting uses #6 hose; the compressor high side uses #8; the compressor low side uses #10.
Know exactly what you're ordering
Clean plumbing at the condenser
Bolts to the condenser
Mounts to the condenser port — no adapters stacked up, no custom machining.
#6 hose connection
Converts the condenser port to a standard #6 hose you can build to length.
9 o'clock routing
The outlet aims to the other side so the line clears the core support, fans, and bodywork.
Swap-friendly
Built for custom and LS swap engine-swap A/C, where the factory lines don't apply.
O-ring sealed
Seals with an O-ring for a leak-free condenser connection.
Build to length
Pair with #6 hose and fittings to crimp an exact-length assembly.
The rest of your swap A/C plumbing
This is the condenser end. Pair it with the compressor manifolds and hose:
Compressor High-Side · 234-549
The matching compressor high-side manifold (#8) for the 10S20F/10S17F compressor at 9 o'clock.
View compressor manifold →#6 A/C barrier hose
Cut #6 barrier hose to length for the run to/from the condenser.
Shop A/C hose →Universal condensers
Need the condenser itself? Browse universal condensers for your build.
Shop condensers →Building the whole system? See the hose builder kit or our hose manufacturing service.
Technical specs
Condenser fitting FAQ
What does this fitting bolt to?
What does “9 o'clock” mean?
Will it fit my condenser?
What else do I need for an LS swap swap?
How do I build the hose?
Shop bolt-on compressor manifolds & fittings
Browse the bolt-on manifold and condenser fittings and set your quantities in one place.
| Image | Product Name | SKU | Price | In Stock | Quantity | Add To Cart |
|---|---|---|---|---|---|---|
|
Condenser Manifold Fitting · #6 Hose @ 3 O'clock · Custom / LS Swap | 234-544 | $47.25 | 47 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 6 O'clock · Custom / LS Swap | 234-545 | $47.25 | 45 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 9 O'clock · Custom / LS Swap | 234-546 | $47.25 | 48 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 3 O'clock · 10S20F/10S17F | 234-547 | $47.25 | 32 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 6 O'clock · 10S20F/10S17F | 234-548 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 9 O'clock · 10S20F/10S17F | 234-549 | $47.25 | 42 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 3 O'clock · 10S20F/10S17F | 234-550 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 6 O'clock · 10S20F/10S17F | 234-551 | $47.25 | 45 in stock |
Get the A/C plumbing right
Tell us your condenser and compressor and the directions you need the lines to exit — we'll point you to the right fittings or build the lines for your swap.
Add to cart ↑Hose manufacturingManufacturer names are used for identification purposes only and do not imply affiliation or endorsement. Confirm your condenser port pattern, hose size, and outlet orientation before ordering. Pressure-test every hose assembly before returning it to service.
