Description

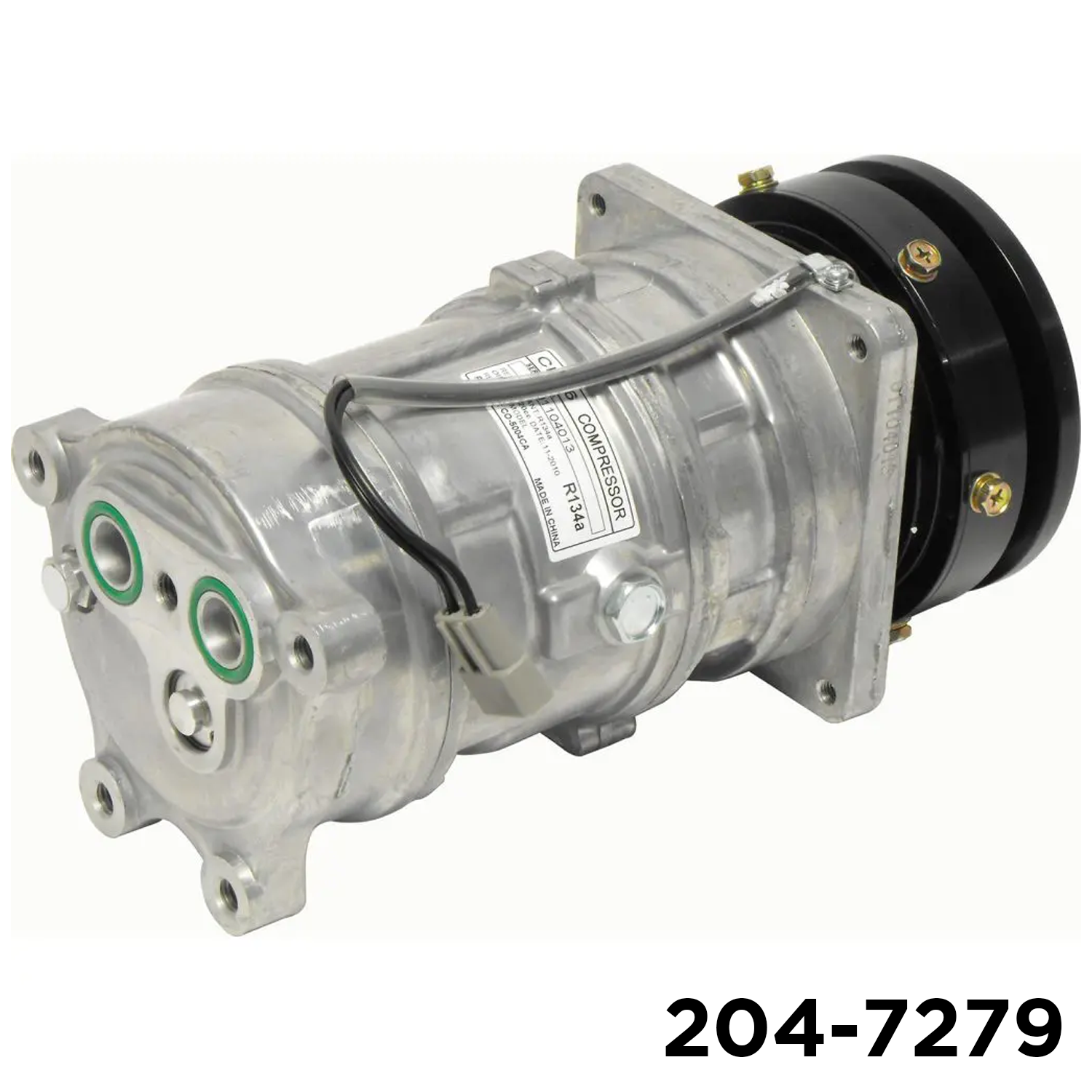

A-6 A/C Compressor — Aluminum Replacement, 1-Groove, 12V
A complete A-6 compressor assembly with the clutch already fitted — a lightweight aluminum replacement for the classic GM / Frigidaire A-6. Single V-groove pulley (130 mm / ~5″), 12V clutch, 2 o’clock clocking, metric fittings and a high-pressure switch.
The heart of the A/C system
The compressor pressurizes and circulates refrigerant through the A/C system — without it, there’s no cooling. This is the complete A-6 assembly, clutch included, in a lightweight aluminum body.
When the original compressor is noisy, seized, or won’t engage, replacing it with a fresh unit is the core of an A/C repair. Because debris from a failed compressor spreads through the system, a proper install includes flushing and replacing the drier and metering device.
Know exactly what you’re ordering
The details that decide whether this compressor matches your unit:
The classic A-6, lighter
Complete, ready to bolt on
Ships as a complete A-6 compressor with the single-groove clutch already fitted (130 mm pulley, 12V).
Lightweight aluminum
An aluminum replacement for the classic A-6 — considerably lighter than the original cast-iron unit, with good corrosion resistance.
The classic A-6
The GM / Frigidaire A-6 axial compressor is one of the most widely used vintage units — found on decades of GM vehicles and a wide range of agricultural and heavy equipment.
Identify by the numbers
No vehicle list is published for this unit — match it by its cross-reference numbers and physical specs against your original.
Very wide cross-reference
Cross-references UAC CO 2224N, GM, AC Delco, Caterpillar, Allis Chalmers and many more — see the table below.
Single-groove, high-pressure switch
A single V-groove pulley (130 mm / ~5″, 11 mm belt), 12V clutch, 2 o’clock clocking, metric fittings and a high-pressure switch.
How to confirm it fits
No vehicle application list is published for this compressor. The A-6 was used across decades of GM vehicles and a wide range of agricultural and heavy equipment — match it to your original by these points:
Match on: single V-groove pulley (130 mm / ~5″, 11 mm belt) · 12V clutch · clocking (2 o’clock) · metric fittings · high-pressure switch. Then confirm against the cross-reference numbers below.
Not sure? Send us the numbers off your old compressor and we’ll confirm the right unit before you order — call 480-507-2229 or text 480-856-7833.
Interchange & cross-reference numbers
This compressor cross-references the following OEM and aftermarket numbers. Listed for identification only.
| Brand | Part number(s) |
|---|---|
| UAC | CO 2224N |
| AC Delco | 152821 · 152459 · 1520512 · 152224 · 1521684 |
| General Motors | 19169326 · 01131197 |
| Caterpillar | 1P2780 |
| Allis Chalmers | 1131075 |
| Agco | 1131243 |
| Deutz-Allis | 702729765 |
| Navistar | 509170C91 |
| Terex | 2724154 |
| Jaguar | 1131571 · 1131376 |
| Airpro | 2195010 · 2195010M · 211005 · 211010 |
| Austin Baker | 10343240 |
| Carlisle | 3010563 |
| Compressor Works | 622227 · 622224 |
| Four Seasons | 58096 · 57096 |
| Global Parts Distributors | 7511246 · 5511246 · 7512683 · 5511727 · 5512683 · 6512683 · 6511727 · 7511727 · 6511246 |
| Hodyon | 032007NH |
| NAPA | 272533 · TEM272533 · 251227 · TEM251227 · 275060 · TEM275060 |
| Omega | 2010406 · 2010649 · 2010400R · 2010865 · 2011552 · 2010819R |
| Ranshu | 1422240 · 1422240NEW |
| Ready-Aire / Proliance | 2104N |
| Sunair | CO5004CA |
| Visteon | 000650 · 000068 |
Technical specs
Installing a new compressor? Flush the system, replace the receiver-drier or accumulator and the expansion / orifice device, and follow the correct oil charge before you evacuate and recharge. Skipping these steps is the most common cause of a repeat failure.
