Description

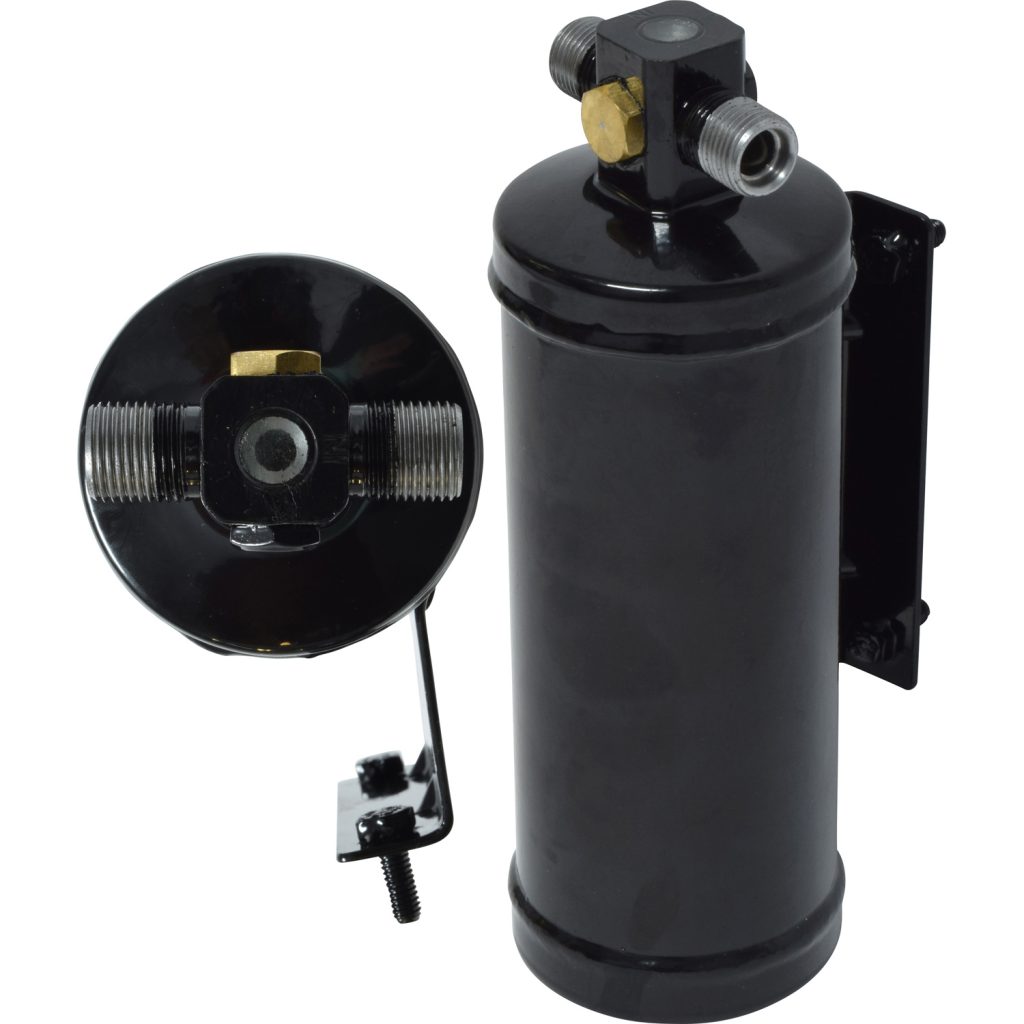

Receiver-drier for Mazda B2000, B2200 & B2600 pickups
The receiver-drier that keeps a Mazda B-series A/C system clean and dry. It filters debris, stores a reserve of liquid refrigerant, and its desiccant pulls moisture out of the refrigerant — protecting the compressor and expansion valve from acid, corrosion, and ice. A direct fit across 1986–1993 Mazda B2000, B2200, and B2600 pickups.
Always replace the drier when the system is open. The desiccant inside saturates with moisture over time and any time the system is opened — for a compressor, a leak repair, or a conversion. Fitting a fresh drier is inexpensive insurance for the whole A/C system.
Three jobs, one part
On a TXV (expansion-valve) system, the receiver-drier sits on the high side after the condenser. It does three things at once:
Filters particles and debris before they reach the expansion valve and compressor. Dries the refrigerant — the desiccant absorbs moisture that would otherwise form acids, corrode components, and freeze into blockages. Stores a reserve of liquid refrigerant so the expansion valve always has a steady supply.
Know exactly what you’re ordering
The details that decide fitment on this drier:
Cheap insurance for the whole system
Removes moisture
Desiccant pulls water out of the refrigerant, heading off the acid, corrosion, and ice that destroy A/C systems.
Filters debris
Traps particles before they can reach and damage the expansion valve and compressor.
Stores refrigerant
Holds a reserve of liquid refrigerant so the expansion valve gets a steady, bubble-free supply.
Direct B-series fit
Fits 1986–1993 Mazda B2000, B2200, and B2600 — 9 mm ports, 205 mm long, 63 mm diameter.
Replace with the compressor
Always fit a new drier when the system is opened — it protects your new or rebuilt compressor.
Wide interchange
Cross-references UAC, ACDelco, Four Seasons, NAPA, Omega, Visteon and more — see the table below.
Vehicle compatibility
This receiver-drier fits the following Mazda B-series pickups. Confirm port size and dimensions against your original before ordering.
| Make | Model | Years |
|---|---|---|
| Mazda | B2000 | 1986–1987 |
| Mazda | B2200 | 1987–1993 |
| Mazda | B2600 | 1987–1990 |
Interchange & cross-reference numbers
Match your old drier against the numbers below.
| Brand | Part number(s) |
|---|---|
| UAC | RD 1312C |
| Mazda | 000067A91A6P · 67A91A0P |
| ACDelco | 1510005 |
| Four Seasons | 33485 |
| NAPA | 208658 · TEM208658 |
| Omega | 3713400 |
| Visteon | 540081 |
| Compressor Works | 708041 |
| Global Parts Distributors | 1411503 |

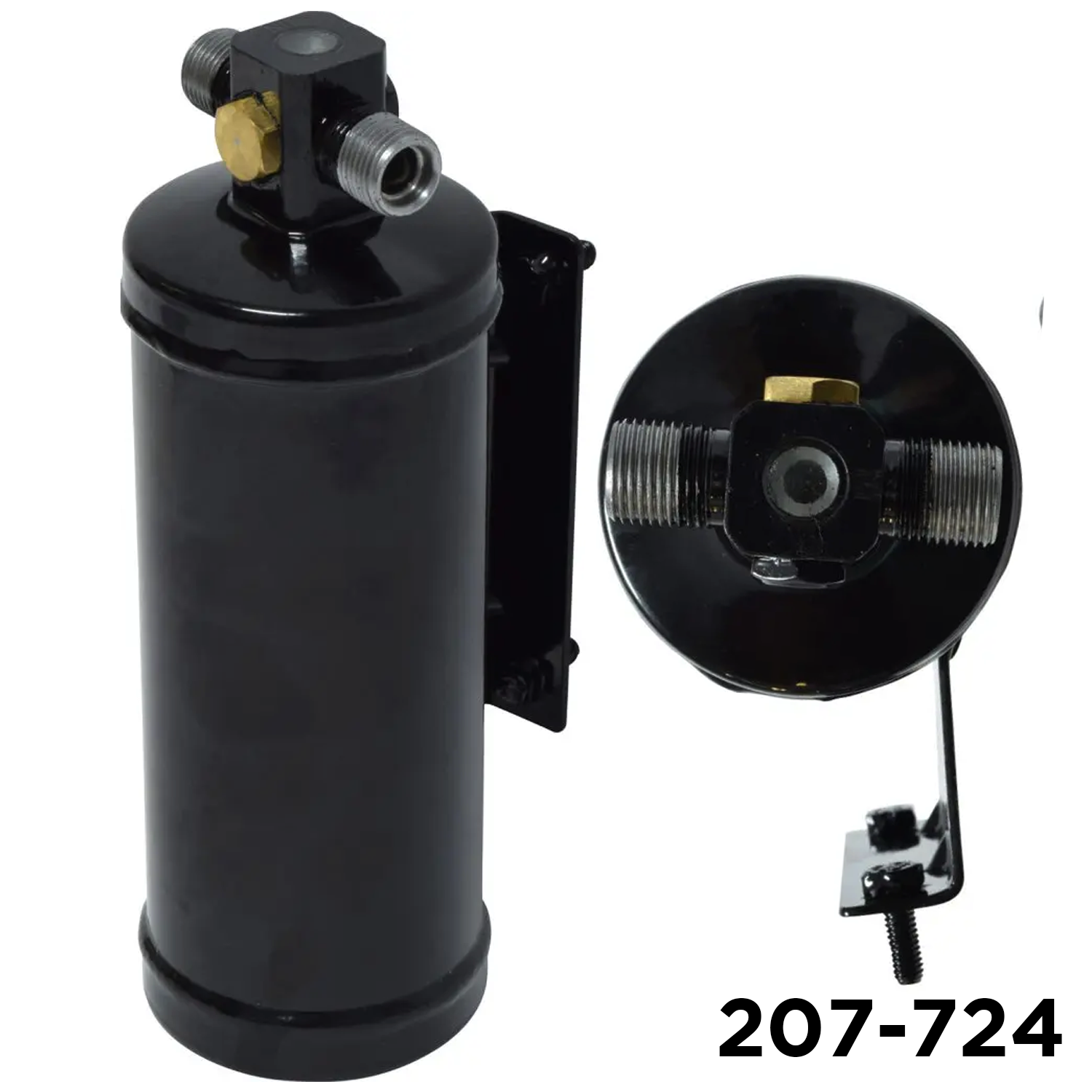

| Frigette | 207724 |
| Hodyon | 044999A |
| Ready-Aire / Proliance | 3999 |
| Advance Auto Parts | T33485 |
Technical specs
Fit it right
The desiccant starts absorbing moisture the moment the drier is opened to air, so timing matters.
Replace when open
Fit a new drier any time the system is opened, or after a leak or compressor failure.
Keep it sealed
Leave the caps on until the moment of install — the desiccant absorbs ambient humidity quickly.
New O-rings
Install with fresh O-rings and the correct flow orientation.
Evacuate promptly
Pull a deep vacuum right after install to remove any moisture, then recharge to spec.
Doing the whole system?
If you’re replacing the drier as part of a bigger A/C job on the B-series, these are the matching parts:
SD708 · 204-7828
The rebuilt SD708 compressor for the Mazda B2000 / B2200 with the correct WE pad head.
View the compressor →TXV · 208-6606
A universal-fit expansion valve that cross-references the Mazda TXV — confirm fitment for your truck.
View the valve →Retrolube POE · 861-2112
Premium POE lubricant with UV leak-detection dye for the recharge and easy future diagnosis.
View the oil →Receiver-drier FAQ
What does a receiver-drier do?
Do I have to replace it with the compressor?
Will it fit my Mazda B-series? Which years?
Why does moisture in the system matter?
Should I replace the expansion valve too?
Match your drier before you buy
Port size and dimensions have to match. Send us your old drier’s numbers or call and we’ll confirm the right fit for your B-series truck.
Add to cart ↑ Confirm my fitmentAll manufacturer names and part numbers are trademarks of their respective owners and are listed for identification and cross-reference purposes only; their use does not imply affiliation or endorsement. This is an aftermarket receiver-drier. Confirm port size, dimensions, and application against your original before ordering.
