Description

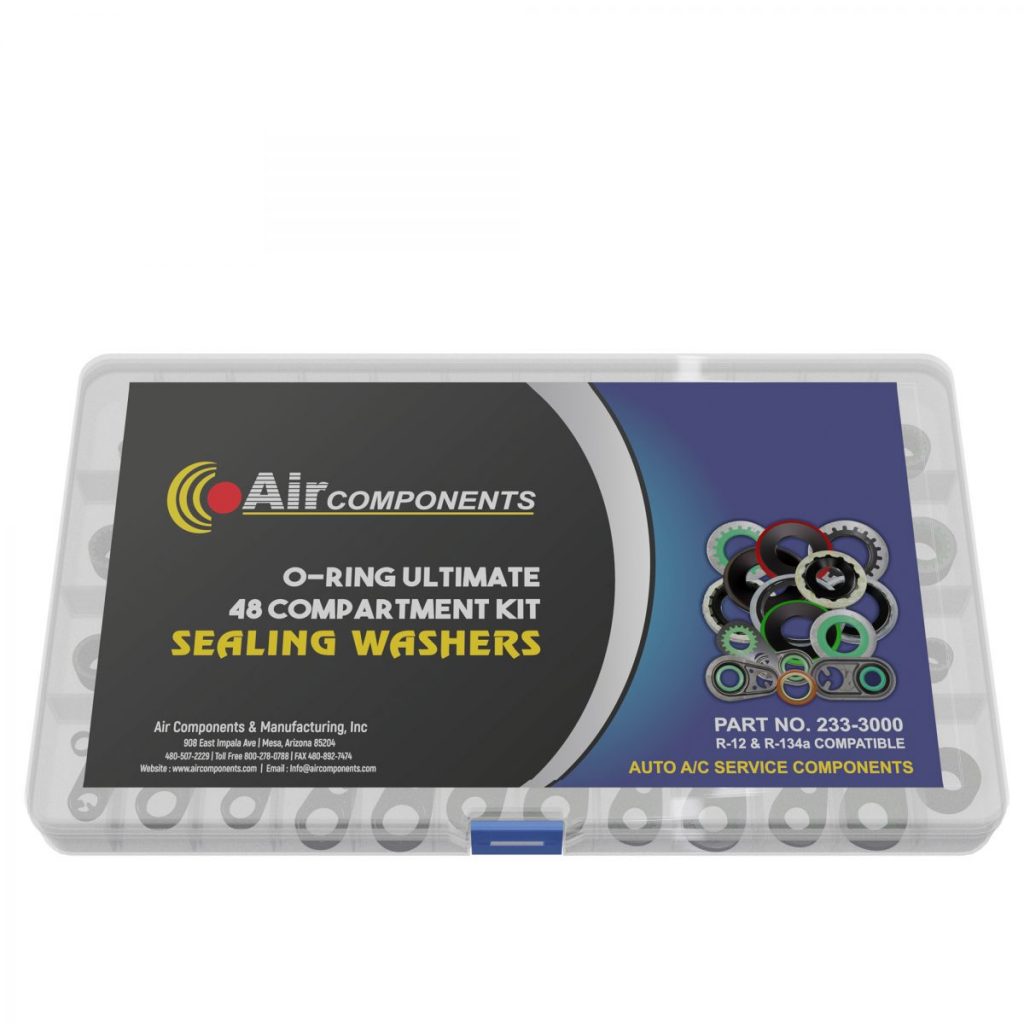

Sealing washer master — 48-compartment kit
The complete A/C sealing set — 48 part numbers and 173 pieces of sealing washers and metal gaskets, organized one-per-compartment in a labeled case. It covers Chrysler, GM, Honda, Jeep, Dodge, Caterpillar, and more, including color-coded, slimline, Stat-O-Seal, and metal-with-O-ring gaskets — the right seal for nearly any flare or block fitting on the bench.
Every washer, one case
The complete sealing bench
Truly complete
48 sealing-washer and gasket part numbers — the right seal is in the case instead of on back-order.
All the makes
GM (color-coded and slimline), Chrysler, Honda, Jeep, Dodge, Caterpillar, and universal sizes.
Washers & gaskets
Includes metal gaskets with O-rings for suction/discharge/drier ports, not just plain washers.
Organized case
One part per labeled compartment for fast identification and easy restocking.
Refillable
Every part is a stocked 5-pack — reorder just the size you use to keep the case topped up.
Pro-grade
Durable materials that seal reliably under the pressures and temperatures of modern A/C systems.

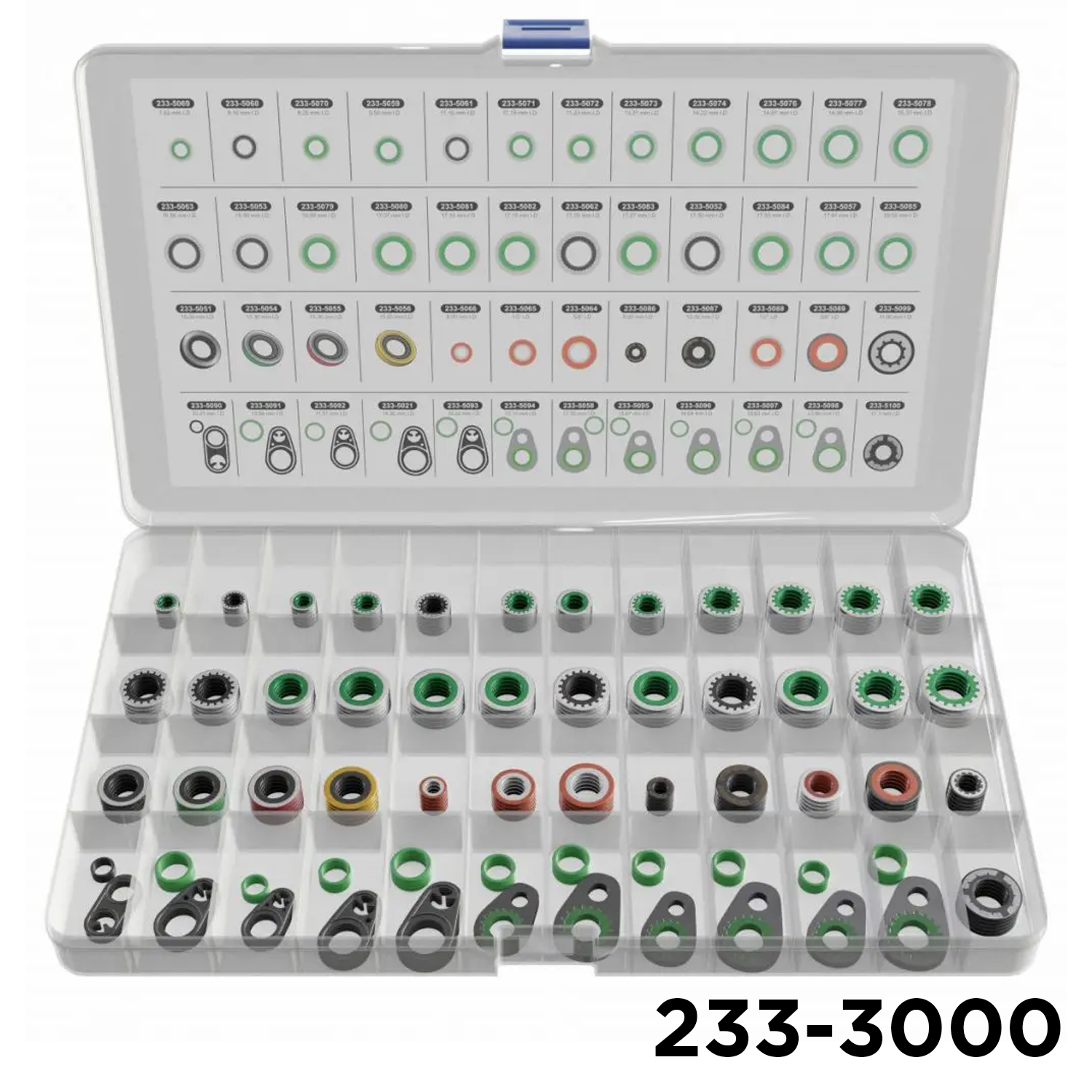

Full contents — click any part to reorder
All 48 part numbers (173 pieces), grouped by type. Each links to its own 5-pack.
Metal gaskets & washers with O-rings
| Component | Part # | Qty |
|---|---|---|
| Discharge gasket — Chrysler / Nippondenso 10S, ID 14.30 mm | 233-5020 | 4 |
| Drier gasket w/O-ring — ID 10.31 mm | 233-5090 | 4 |
| Suction gasket w/O-ring — Chrysler, ID 13.59 mm | 233-5091 | 4 |
| Discharge gasket w/2 O-rings — ID 11.51 mm | 233-5092 | 4 |
| Suction gasket w/O-ring — ID 16 mm | 233-5093 | 4 |
| Washer w/O-ring — Chrysler, ID 15.11 mm | 233-5094 | 4 |
| Washer w/O-ring — ID 15.07 mm | 233-5095 | 4 |
| Washer w/O-ring — ID 18.04 mm | 233-5096 | 4 |
| Washer w/O-ring, HD — ID 15.63 mm | 233-5097 | 4 |
| Washer w/O-ring, HD — ID 21.4 mm | 233-5098 | 4 |
GM — color-coded & slimline
| Washer | Part # | Qty |
|---|---|---|
| GM green — ID 15.30 mm | 233-5054 | 1 |
| GM red — ID 15.30 mm | 233-5055 | 1 |
| GM yellow — ID 15.30 mm | 233-5056 | 1 |
| GM slimline — ID 8 mm | 233-5060 | 4 |
| GM slimline — ID 11.10 mm | 233-5061 | 4 |
| GM slimline — ID 17.20 mm | 233-5062 | 4 |
| GM slimline — ID 15.50 mm | 233-5063 | 4 |
Standard & MSF
| Washer | Part # | Qty |
|---|---|---|
| 5/8″ thick — ID 15 mm | 233-5051 | 2 |
| 3/4″ thin — ID 17.50 mm | 233-5052 | 6 |
| 5/8″ thin — ID 15.50 mm | 233-5053 | 6 |
| MSF red — 5/8″ | 233-5064 | 4 |
| MSF — 1/2″ | 233-5065 | 4 |
| MSF — 8 mm | 233-5066 | 4 |
Slimline & Stat-O-Seal (by size)
| Washer | Part # | Qty |
|---|---|---|
| Slimline — ID 17.91 mm / OD 27.99 mm | 233-5057 | 4 |
| Slimline green — ID 7.92 mm | 233-5069 | 4 |
| Green — ID 8.26 mm | 233-5070 | 4 |
| Slimline green — ID 11.18 mm | 233-5071 | 4 |
| Stat-O-Seal — ID 11.23 mm | 233-5072 | 4 |
| Slimline — ID 13.31 mm | 233-5073 | 4 |
| Stat-O-Seal — Freightliner, ID 14.22 mm | 233-5074 | 4 |
| Slimline — ID 14.91 mm | 233-5076 | 4 |
| Slimline — ID 14.99 mm | 233-5077 | 4 |
| Stat-O-Seal — ID 15.37 mm | 233-5078 | 4 |
| Slimline — ID 15.50 mm | 233-5079 | 4 |
| Slimline — ID 17.07 mm | 233-5080 | 4 |
| Slimline — ID 17.15 mm | 233-5081 | 4 |
| Slimline — ID 17.15 mm (alt) | 233-5082 | 4 |
| Stat-O-Seal — ID 17.27 mm | 233-5083 | 4 |
| Slimline — ID 17.53 mm | 233-5084 | 4 |
| Slimline — ID 19.55 mm | 233-5085 | 4 |
Application-specific — Dodge / Jeep / Honda / Caterpillar
| Washer | Part # | Qty |
|---|---|---|
| Dodge ’05–’06 — ID 17.93 mm | 233-5058 | 4 |
| Chrysler / Jeep ’05–’06 green — ID 9.52 mm | 233-5059 | 4 |
| Honda — ID 8 mm | 233-5086 | 2 |
| Honda — ID 15 mm | 233-5087 | 2 |
| Honda — ID 1/2″ | 233-5088 | 2 |
| Honda — ID 5/8″ | 233-5089 | 2 |
| Caterpillar — ID 11 mm | 233-5099 | 2 |
| Caterpillar — ID 17.1 mm | 233-5100 | 2 |
Start smaller or go all-in
Washer Assortment · 233-5075
Just getting going? The 74-piece startup assortment covers the common washers.
View starter kit →O-Ring Master · 233-3180
Pair your washers with the 936-piece O-ring master for total sealing coverage.
View O-ring master →Master Sealing Kit · 233-3181P
The master that combines washers, gaskets, caps, cores, and 1234yf in one case.
View master kit →Kit details
Master washer kit FAQ
What’s in the kit?
Is it refillable?
What’s the difference vs the starter kit?
Do you have a matching O-ring kit?
Shop A/C service kits
Browse sealing-washer, O-ring, and valve-core kits and set your quantities in one place.
| Image | Product Name | SKU | Price | In Stock | Quantity | Add To Cart |
|---|---|---|---|---|---|---|
|
Air Tech Master O-Ring Kit 160 part numbers & 936 pieces | 233-3180 | $197.28 | In stock | ||
|
Master Sealing Washer, Gasket, Valve Core /Cap And 1234YF Cap & Core Kit | 233-3181P | $341.50 | In stock | ||
|
(Most Popular) O-Ring Start Up Kit 48 Compartments | 233-3179 | $50.50 | In stock | ||
|
(Smaller Sizes) O-Ring Master Kit 48 Compartment | 233-3176 | $54.42 | In stock | ||
|
(Medium Sizes) O-Ring Master Kit 48 Compartment | 233-3177 | $54.42 | In stock | ||
|
(Larger Sizes) O-Ring Master Kit 24 Compartment | 233-3178 | $65.18 | In stock | ||
|
1234YF Universal Service Caps and Valve Core Kit | 233-6101 | $99.00 | In stock | ||
|
Sealing Washer Master 48 Compartment Kit | 233-3000 | $197.14 | In stock |
Add the sealing washer master
In stock and ready to ship. Prefer to start smaller or refill a single size? See the options above, or call and we’ll help.
Add to cart ↑ Contact usVehicle and manufacturer names are used for identification only and do not imply affiliation or endorsement. Confirm the correct sealing washer or gasket size and style for your fitting before installing.
