Description

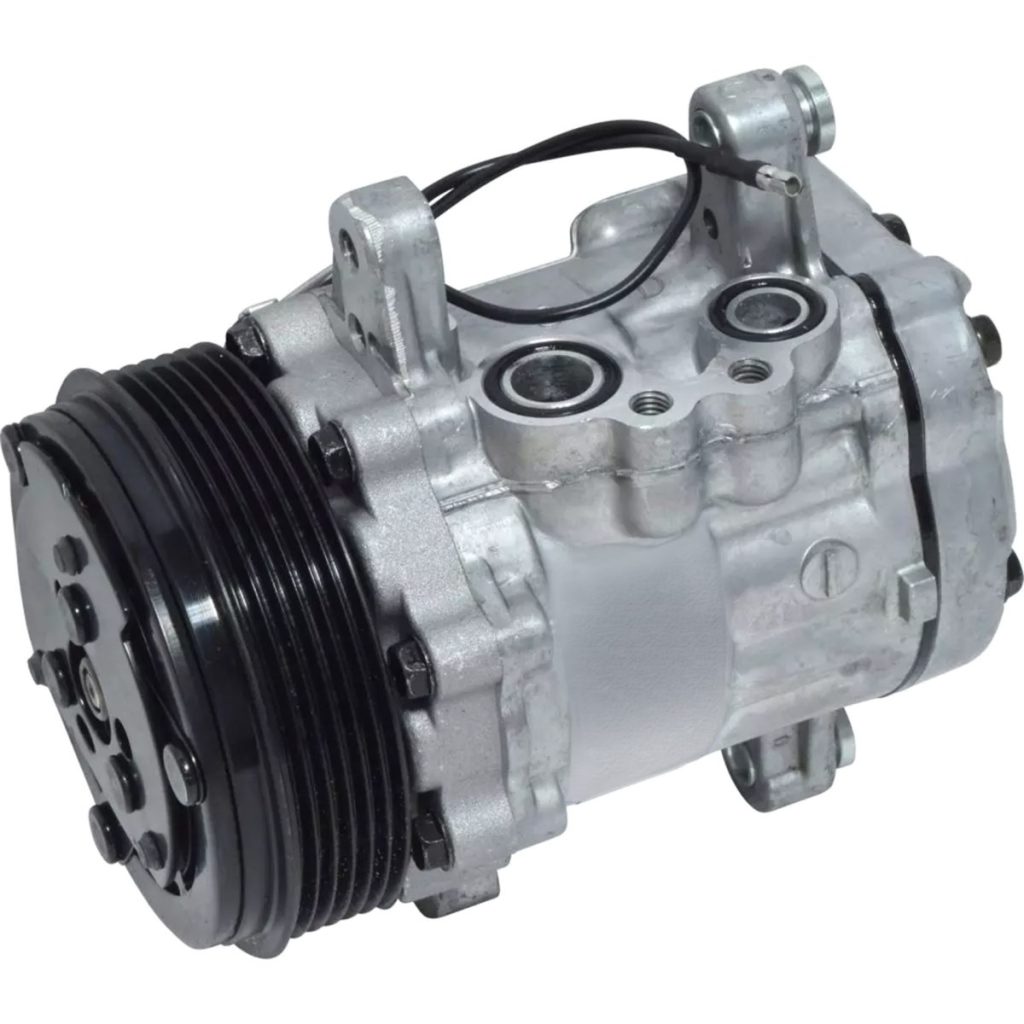

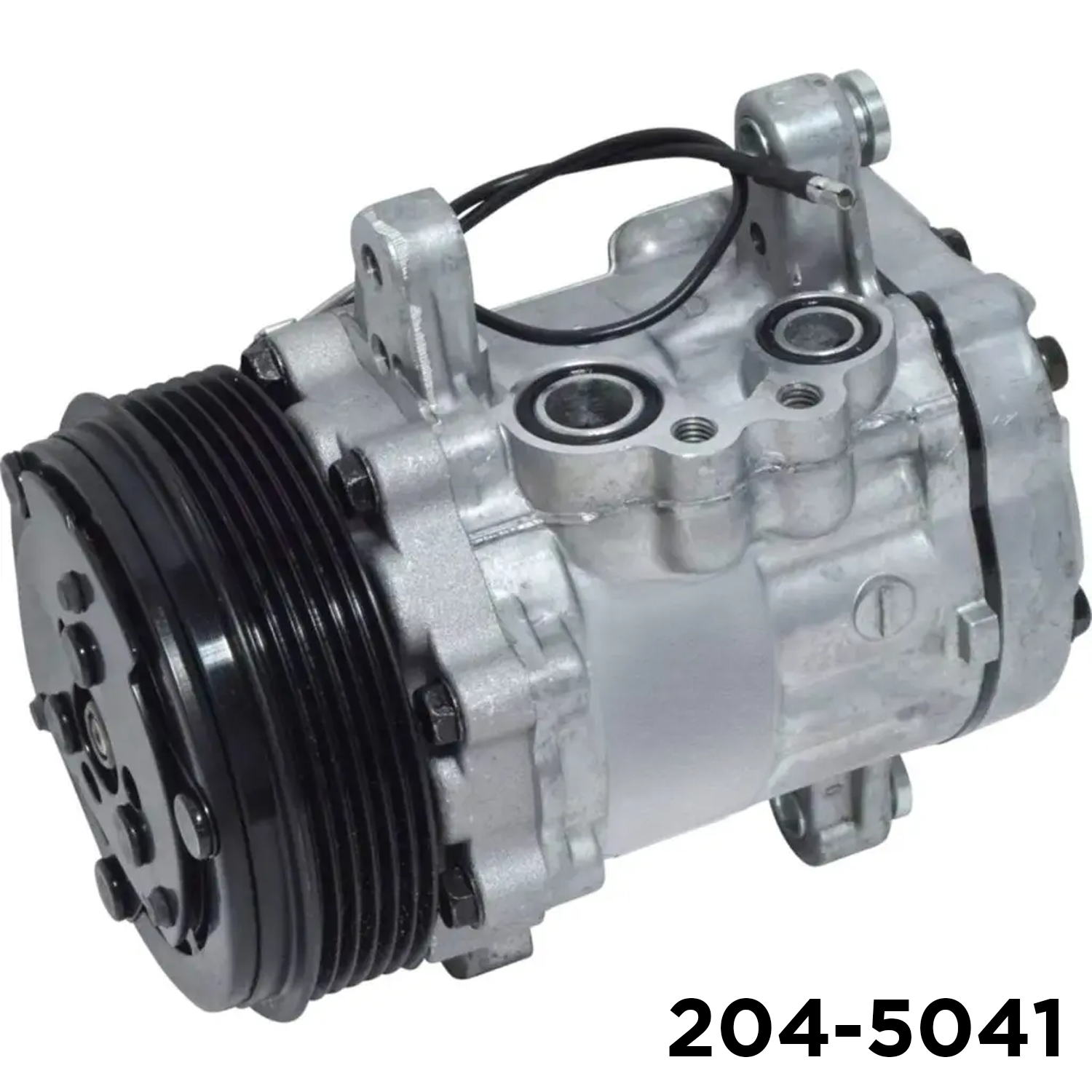

Sanden SD7B10 A/C Compressor — 6-Groove Poly-V
A complete SD7B10 compressor assembly with the clutch already fitted — a compact Sanden unit with a 6-groove poly-V pulley (112 mm). A lighter-body compressor in the Sanden line-up.
The heart of the A/C system
The compressor pressurizes and circulates refrigerant through the A/C system — without it, there’s no cooling. This is the complete SD7B10 assembly, clutch included.
When the original compressor is noisy, seized, or won’t engage, replacing it with a fresh unit is the core of an A/C repair. Because debris from a failed compressor spreads through the system, a proper install includes flushing and replacing the drier and metering device.
Know exactly what you’re ordering
The details that decide whether this compressor matches your unit:
Match it, bolt it, cool it
Complete, ready to bolt on
Ships as a complete SD7B10 compressor with the 6-groove poly-V clutch already fitted (112 mm pulley).
Compact Sanden SD7B10
A compact Sanden SD7B10 with a poly-V clutch pulley — a lighter-body compressor in the Sanden family.
Identify by the numbers
No vehicle list is published for this unit — match it by its cross-reference numbers and physical specs against your original.
Wide cross-reference
Cross-references Sanden 7176, UAC CO 7176C, Four Seasons, NAPA, Omega and more — see the table below.
6-groove poly-V pulley
A 6-rib serpentine (poly-V) clutch pulley, 112 mm, with a 23 mm gauge line.
Restores cooling
The compressor is the heart of the A/C system; a fresh unit brings cooling back on a worn or seized original.
How to confirm it fits
No vehicle application list is published for this compressor. Match it to your original by these points:
Match on: pulley grooves (6, poly-V) · pulley diameter (112 mm) · gauge line (23 mm). Then confirm against the cross-reference numbers below. Clutch voltage and port style aren’t published for this unit — contact us to confirm them.
Not sure? Send us the numbers off your old compressor and we’ll confirm the right unit before you order — call 480-507-2229 or text 480-856-7833.
Interchange & cross-reference numbers
This compressor cross-references the following OEM and aftermarket numbers. Listed for identification only.
| Brand | Part number(s) |
|---|---|
| UAC | CO 7176C |
| Sanden | 7176 |
| Four Seasons | 168515 · 167515 |
| Carlisle | 3014460 · 3014461 |
| Global Parts Distributors | 5512769 · 6512769 · 7512769 · 7812769 |
| NAPA | 971024 · TEM971024 |
| Omega | 2010061 · 2010061AM |
| Ranshu | 14SD7176 · 14SD7176NC · 14SD7176NEW |
| Austin Baker | 10363231 |
Technical specs
Installing a new compressor? Flush the system, replace the receiver-drier or accumulator and the expansion / orifice device, and follow the correct oil charge before you evacuate and recharge. Skipping these steps is the most common cause of a repeat failure.
