Description

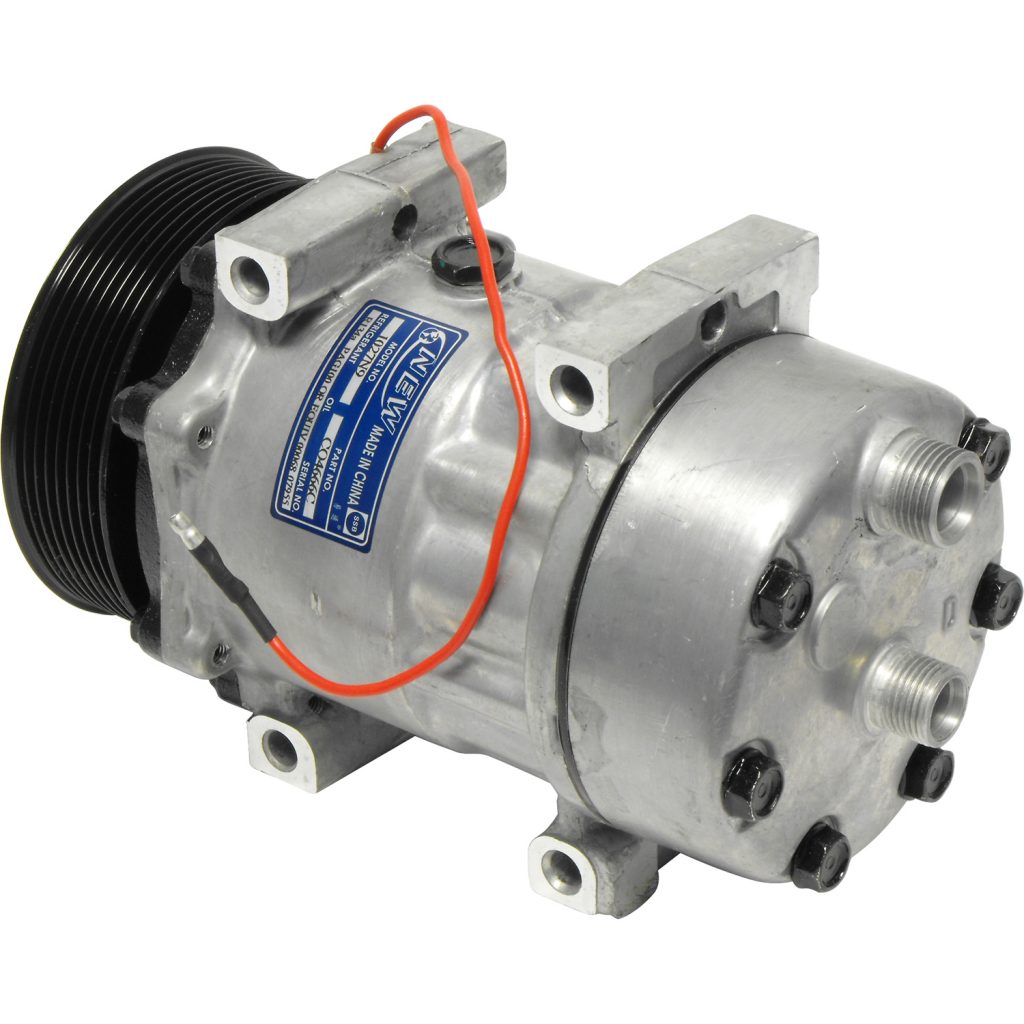

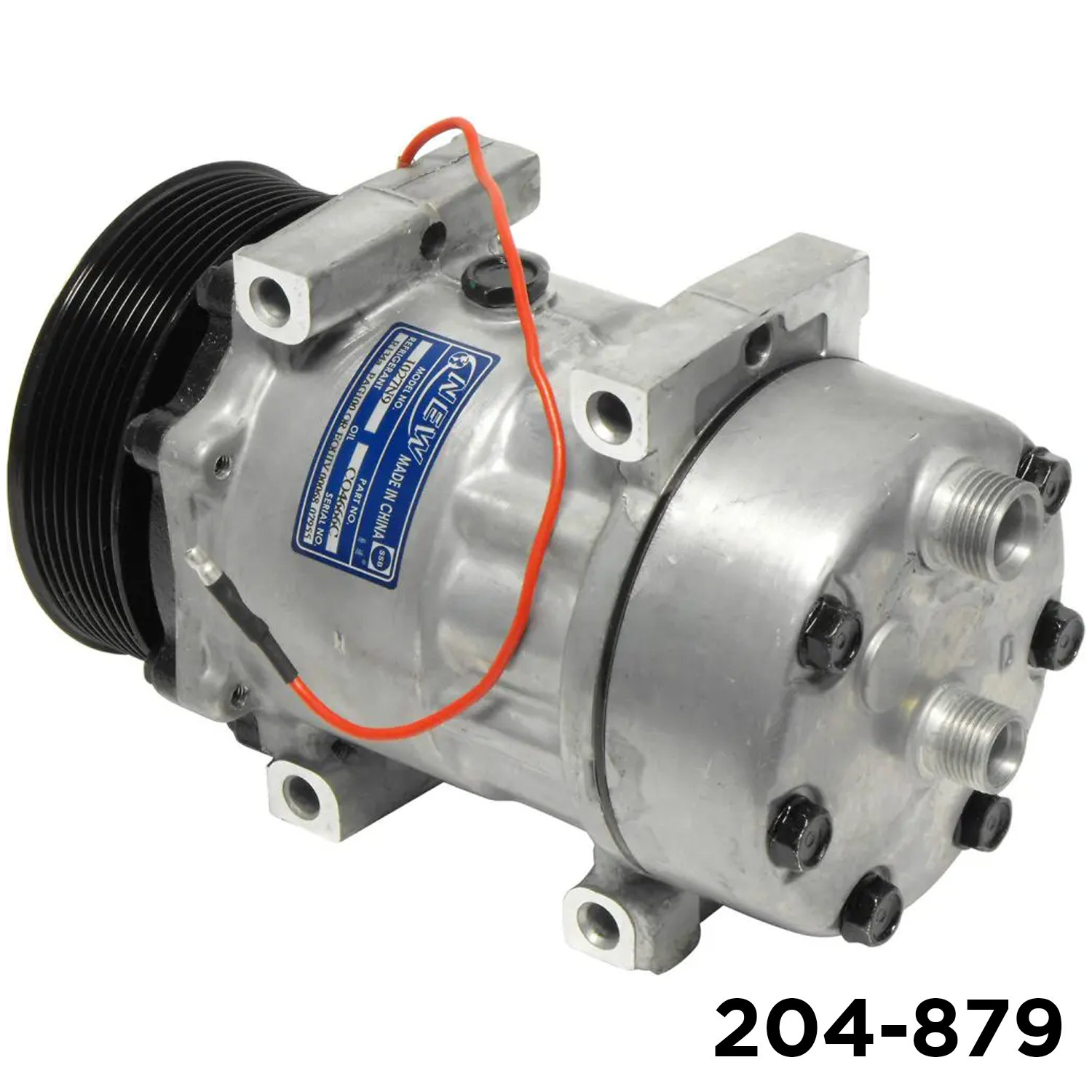

Sanden SD7H15 A/C Compressor — 8-Groove, 12V (Blue Bird Bus & Truck)
A complete SD7H15 compressor assembly with the clutch already fitted — an 8-groove poly-V pulley (119 mm), 12V clutch, direct / cross-bolt mount and KC cylinder head, on R-134a. One of the most widely used bus and truck A/C compressors.
The heart of the A/C system
The compressor pressurizes and circulates refrigerant through the A/C system — without it, there’s no cooling. This is the complete SD7H15 assembly, clutch included, for these bus and truck applications.
When the original compressor is noisy, seized, or won’t engage, replacing it with a fresh unit is the core of an A/C repair. Because debris from a failed compressor spreads through the system, a proper install includes flushing and replacing the drier and metering device.
Know exactly what you’re ordering
The details that decide whether this compressor matches your unit:
The workhorse bus & truck compressor
Complete, ready to bolt on
Ships as a complete SD7H15 compressor with the 8-groove poly-V clutch already fitted (119 mm pulley, 12V).
Blue Bird buses & more
One of the most widely used bus & truck A/C compressors — covers a long run of Blue Bird buses plus Ford, Kenworth and Peterbilt trucks. See the fitment table.
Direct mount, R-134a
Direct / cross-bolt mount with a KC cylinder head, suction 22 mm and discharge 19 mm ports, on R-134a.
12V, 1-wire connector
A 12V clutch with a 1-wire male-bullet connector and 8-rib poly-V pulley.
Wide cross-reference
Cross-references Sanden, UAC, Kenworth, Paccar, Freightliner, Volvo, Carrier, Kysor, Red Dot and more — see the table below.
Restores cooling
The compressor is the heart of the A/C system; a fresh unit brings cooling back on a worn or seized original.
Vehicle applications
This SD7H15 assembly covers a wide range of Blue Bird buses plus several Ford, Kenworth and Peterbilt trucks:
| Make & model | Years |
|---|---|
| Blue Bird All American FE | 1989–2025 |
| Blue Bird All American RE | 1989–2025 |
| Blue Bird SHL All American | 1986–2024 |
| Blue Bird Vision School Bus | 2004–2026 |
| Blue Bird TC2000 | 1989–2004 |
| Blue Bird SHL TC2000 | 1993–2003 |
| Blue Bird TC1000 | 1997–2000 |
| Blue Bird Commercial Bus | 1992–2007 |
| Blue Bird SHL Commercial | 1996–2007 |
| Blue Bird Wanderlodge | 1988–2007 |
| Blue Bird Chassis | 2018–2019 |
| Ford F-650 | 2004–2009 |
| Ford F-750 | 2004–2009 |
| Kenworth T460 | 2010 |
| Peterbilt 535 | 2023 |
| Peterbilt 536 | 2023 |
| Peterbilt 548 | 2023 |
This compressor lists 200+ individual year/model/trim applications — the table groups them by model. Confirm your exact year, model, clutch voltage and pulley (8-groove, 119 mm) before ordering, or send us your numbers and we’ll confirm.
Interchange & cross-reference numbers
This compressor cross-references the following OEM and aftermarket numbers. Listed for identification only.
| Brand | Part number(s) |
|---|---|
| UAC | CO 4666C |
| Sanden | 4666 |
| Kenworth | K318103 · 4666SAN |
| Paccar | P318103 · 4666SAN |
| Freightliner | ABPN83304742 |
| Volvo | 85100866 |
| Alliance | ABPN83304263 · ABPN83307973 · ABPN83304187 |
| Carrier | 501298 |
| Kysor | 1401117 |
| Red Dot | RD5113260P · 75R81502 · 75R84472 |
| Bergstrom | 525997 |
| Frigette | 204879 |
| AC Delco | 1521824 |
| AFI | 0310 |
| Airpro | 204666 |
| AP Air Inc. | 5095941 |
| Austin Baker | 10361641 |
| Carlisle | 3012741 · 3012740 |
| Four Seasons | 57702 · 58702 |
| Global Parts Distributors | 5511580 · 6511580 · 7511580 |
| MEI | 5707 · 5707G |
| NAPA | 967215 · TEM967215 |
| Omega | 2004090 · 2010089 · 2010209 · 2010089AM |
| Ranshu | 14SD4666 · 14SD4666NC |
| TTAC | 3004478 · 3004487 |
Technical specs
Installing a new compressor? Flush the system, replace the receiver-drier or accumulator and the expansion / orifice device, and follow the correct oil charge before you evacuate and recharge. Skipping these steps is the most common cause of a repeat failure.
Shop A/C compressors
Browse related compressors and clutches and set your quantities in one place.
| Image | Product Name | SKU | Price | In Stock | Quantity | Add To Cart |
|---|---|---|---|---|---|---|
|
Condenser Manifold Fitting · #6 Hose @ 3 O'clock · Custom / LS Swap | 234-544 | $47.25 | 47 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 6 O'clock · Custom / LS Swap | 234-545 | $47.25 | 45 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 9 O'clock · Custom / LS Swap | 234-546 | $47.25 | 48 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 3 O'clock · 10S20F/10S17F | 234-547 | $47.25 | 32 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 6 O'clock · 10S20F/10S17F | 234-548 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 9 O'clock · 10S20F/10S17F | 234-549 | $47.25 | 42 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 3 O'clock · 10S20F/10S17F | 234-550 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 6 O'clock · 10S20F/10S17F | 234-551 | $47.25 | 45 in stock |
FAQ
Is the clutch included?
What compressor is this?
Will it fit my bus or truck?
What refrigerant and ports does it use?
Do I need to add oil?
What else should I replace?
Call, text, email or live chat
Send us your old compressor’s numbers and we’ll confirm the right unit. Reach our Mesa, AZ team whichever way is easiest.
All manufacturer names and part numbers are trademarks of their respective owners and are listed for identification and cross-reference purposes only; their use does not imply affiliation or endorsement. Confirm your year, model, clutch and pulley before ordering.
