Description

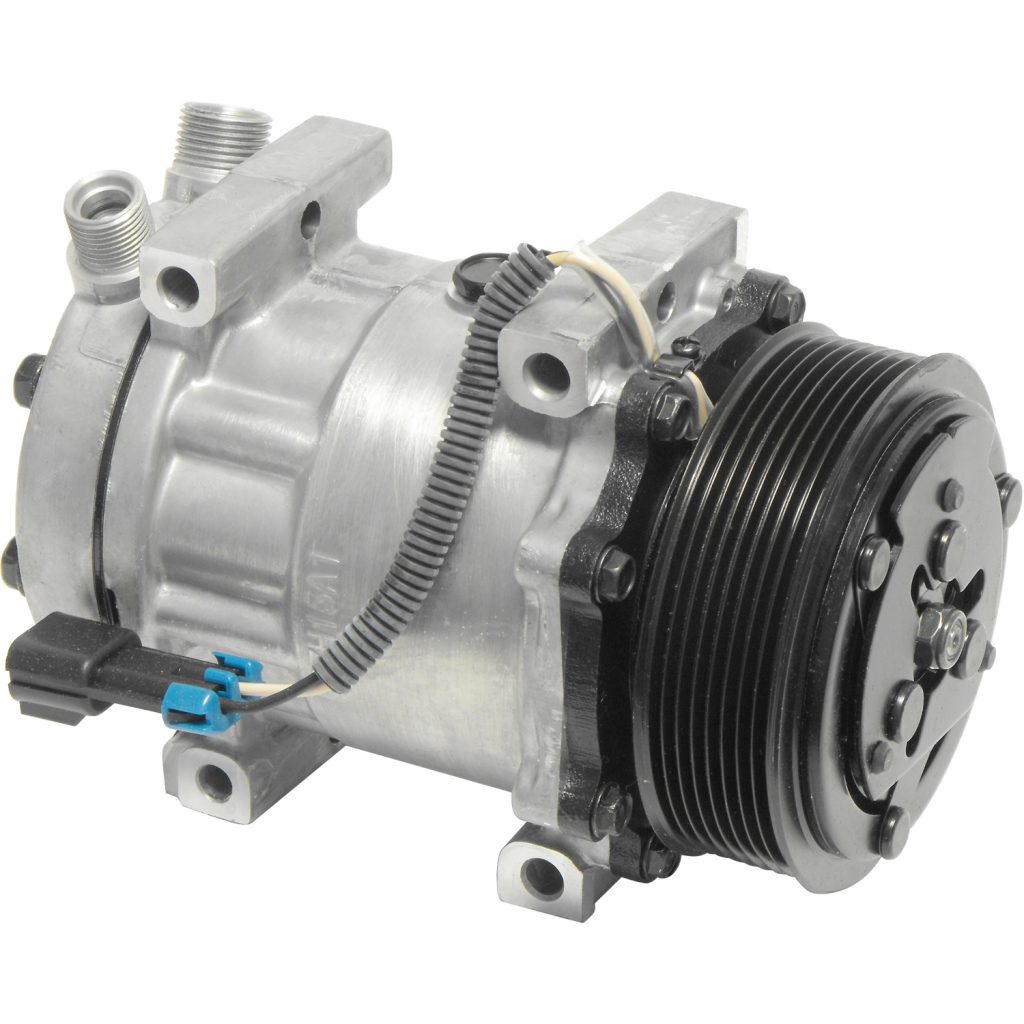

Sanden SD7H15 A/C Compressor Assembly
A direct-fit replacement air-conditioning compressor assembly for Western applications. Match it to your vehicle using the specifications and the full cross-reference list below.
Built to replace the original compressor
This Sanden SD7H15 compressor assembly is the pump at the heart of the A/C system — it circulates refrigerant so the system can cool. It’s supplied as a ready-to-install assembly with the clutch and pulley fitted.
Confirm it matches the unit on your vehicle using the specs and cross-reference numbers below. If your old compressor carries any of the interchange numbers listed, this is your replacement.
Key details
Compressor specs
Specifications as published by Air Components. Match your replacement by pulley groove count, pulley diameter and the cross-reference numbers below. If you need a detail confirmed for your vehicle, contact us before ordering.
Vehicle application
| Vehicle | Years |
|---|---|
| Western Star 5900 | 1989-2001 |
| International 4400 | 2003-2010 |
Fitment as listed by Air Components. Confirm your exact year and engine before ordering.
Interchange numbers
Cross-referenced to the following manufacturer and aftermarket numbers. Matching any one confirms fitment.
| Brand | Cross-reference |
|---|---|
| UAC | CO 4822C |
| AFI | 0224 |
| Alliance | ABPN83304403 |
| AP Air Inc. | 509609 |
| Austin Baker | 10364291 |
| Bergstrom | 526066 |
| CARLISLE | 3013351 |
| CARLISLE | 3013350 |
| Compressor Works | 618785 |
| Four Seasons | 58785 |
| Four Seasons | 57785 |
| Freightliner | SKI4822 |
| Global Parts Distributors | 5512346 |
| Global Parts Distributors | 6512346 |
| Global Parts Distributors | 7512346 |
| International | 3551405C1 |
| Kenworth | 3551405C1 |
| Kysor | 1401133 |
| Kysor | 1410027 |
| MEI | 5349G |
| MEI | 5349 |
| NAPA | 967229 |
| NAPA | TEM967229 |
| Navistar | 3551405C1 |
| Omega | 2004822 |
| Omega | 2004822AM |
| Panafrio | 2014109 |
| Peterbilt | 4822SAN |
| Ranshu | 14SD4822 |
| Ranshu | 14SD4822NEW |
| Ranshu | 14SD4822NC |
| Red Dot | RD5107410 |
| Red Dot | 75R84622 |
| Sanden | 4822 |
| Sunair | CO2196CA |
| TruckAir | 030803 |
| TTAC | 3004433 |
| TTAC | 3004413 |
Order this compressor
Add it to your cart below, or browse other compressors. Not sure it’s the right one? Contact us and we’ll confirm the fit first.
| Image | Product Name | SKU | Price | In Stock | Quantity | Add To Cart |
|---|---|---|---|---|---|---|
|
Condenser Manifold Fitting · #6 Hose @ 3 O'clock · Custom / LS Swap | 234-544 | $47.25 | 47 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 6 O'clock · Custom / LS Swap | 234-545 | $47.25 | 45 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 9 O'clock · Custom / LS Swap | 234-546 | $47.25 | 48 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 3 O'clock · 10S20F/10S17F | 234-547 | $47.25 | 32 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 6 O'clock · 10S20F/10S17F | 234-548 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 9 O'clock · 10S20F/10S17F | 234-549 | $47.25 | 42 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 3 O'clock · 10S20F/10S17F | 234-550 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 6 O'clock · 10S20F/10S17F | 234-551 | $47.25 | 45 in stock |
Add this compressor to your cart
Direct-fit Sanden SD7H15 A/C compressor assembly. Matched to the original by specs and cross-reference.
Add to cart ↑FAQ
How do I know this compressor fits my vehicle?
Does it come with the clutch and pulley?
Is the compressor oil included?
Can you confirm fitment for me?
