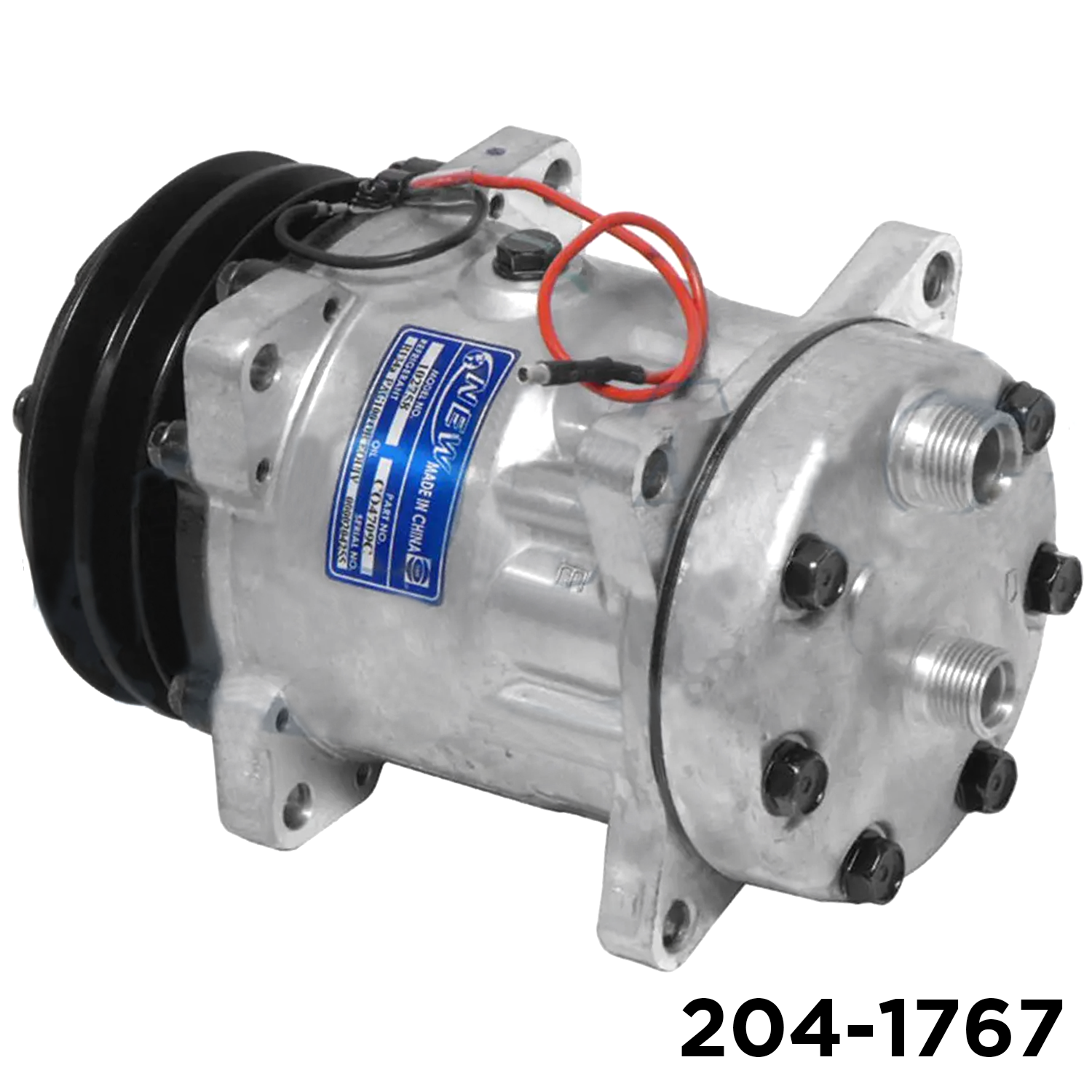

Sanden SD7H15 Heavy-Duty A/C Compressor – Part #204-1767 (Sanden 4709)
Maximize system uptime and maintain cabin comfort in the harshest environments with the genuine Sanden SD7H15 Heavy-Duty A/C Compressor (Air Components Part #204-1767). Built specifically to handle the rigorous demands of commercial trucking, agricultural machinery, and industrial earth-moving equipment, this premium compressor delivers unmatched reliability where aftermarket copies fail.
The Sanden 4709 features a robust 7-cylinder design that offers smoother operation, less vibration, and a longer service life than standard 5-cylinder models. With its heavy-duty ear mount configuration, integrated 12V 2-groove (A2) V-belt clutch, and a specialized KG-style cylinder head with horizontal ports, this unit serves as a direct, drop-in replacement for a wide range of OEM applications.
Key Technical Specifications
-
-
Air Components SKU: 204-1767
-
Manufacturer: Sanden
-
Model Number: 4709 / U4709
-
Compressor Series: SD7H15 HD (Heavy Duty)
-
Displacement: 155 cc/rev
-
Number of Cylinders: 7
-
Mounting Type: Direct Ear Mount
-
Cylinder Head Design: KG / KC Style
-
Port Direction: Horizontal (Rear Exit)
-
Port Sizes: 3/4″ Male O-Ring (Discharge) x 7/8″ Male O-Ring (Suction)
-
Clutch Diameter: 125 mm (approx. 4.92 inches)
-
Belt Profile: 2-Groove (A2) V-Belt
-
Voltage: 12 Volts
-
Refrigerant Type: R134a
-
Oil Type: SP15 / PAG 100
-
Factory Oil Charge: 135 cc (Verify your specific system requirements before installation)
-
Industry Cross-References & Compatibility
This compressor seamlessly replaces several OEM and aftermarket part numbers. Ensure a perfect fit by cross-referencing your old unit with the part numbers below:
-
-
Sanden: 4709, U4709, SD4709
-
Omega: 20-09979-AM
-
UAC: CO 4709C
-
OEM Industry Interchanges: 2259535000, 2259343000
-
Installation & Maintenance Notes
To validate your warranty and ensure the longest possible service life for your new Sanden compressor, please follow standard commercial HVAC installation protocols:
-
-
Flush the System: Thoroughly flush the A/C system to remove old debris, contaminated oil, and metallic particles from the previous compressor failure.
-
Replace Critical Components: Always replace the Receiver-Drier or Accumulator and the Expansion Valve alongside the new compressor.
-
Oil Level Verification: The compressor comes pre-charged with factory SP15/PAG oil for shipping and storage. Always drain, measure, and match the oil quantity to your vehicle’s specific system guidelines before final charging.
-
Pull a Deep Vacuum: Ensure a deep vacuum is pulled for at least 30–45 minutes to boil off any hidden moisture within the system prior to recharging with R134a refrigerant.
-
