Description

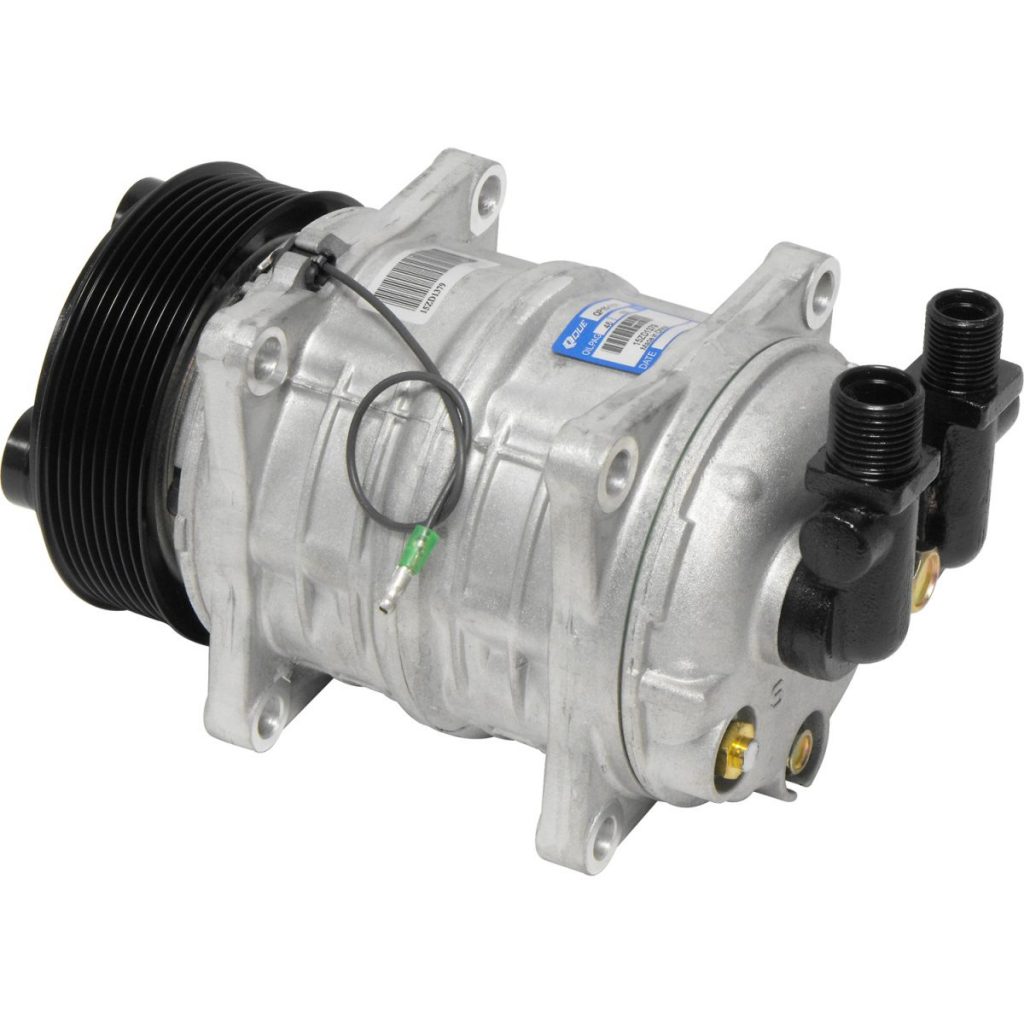

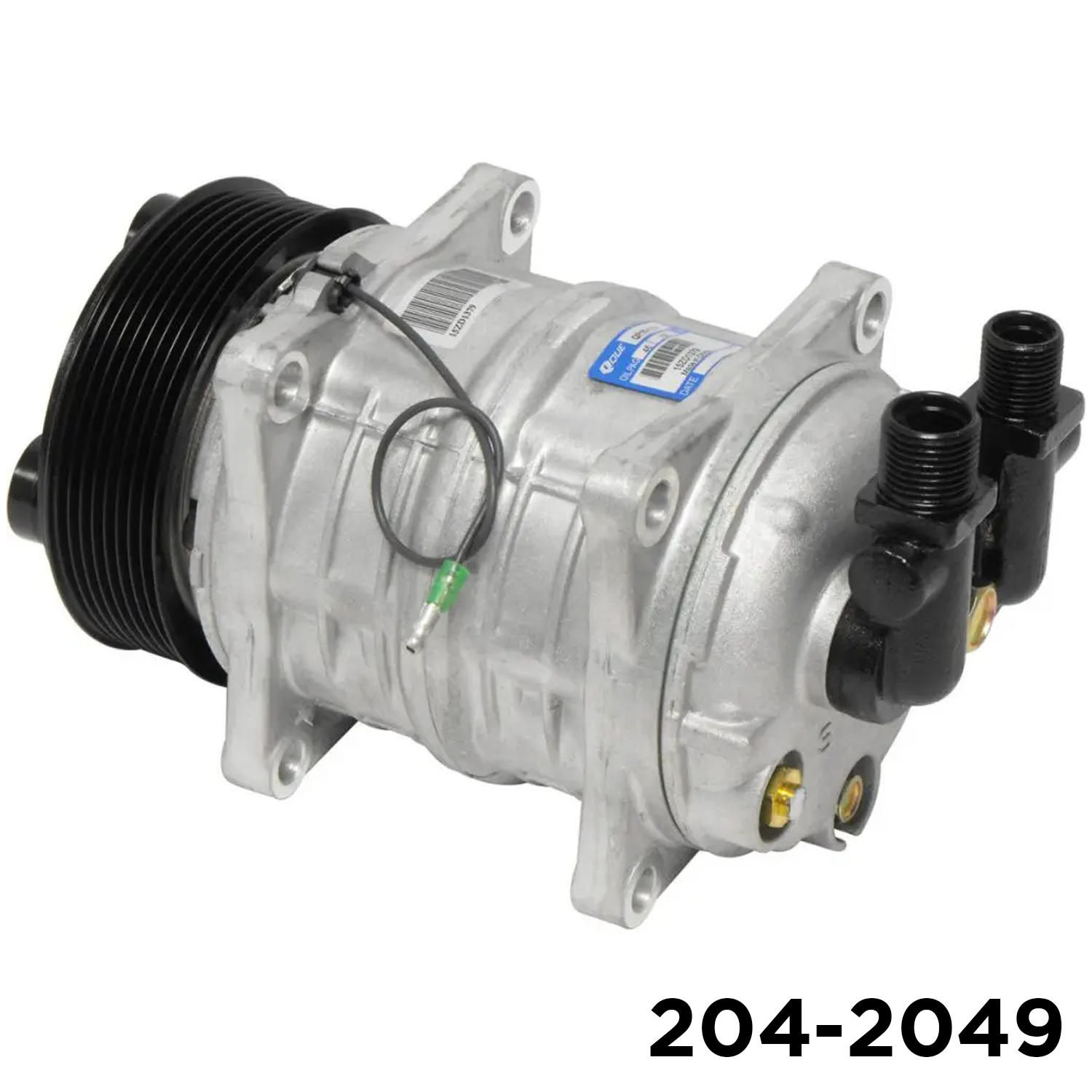

TM15HD A/C Compressor — 8-Groove, 12V, Vertical O-Ring
A complete TM15HD compressor assembly with the clutch already fitted — an 8-groove pulley, 12V clutch and vertical O-ring service ports. A Seltec / Valeo TM15-family unit for heavy-duty and commercial A/C systems.
The heart of the A/C system
The compressor pressurizes and circulates refrigerant through the A/C system — without it, there’s no cooling. This is the complete TM15HD assembly, clutch included.
When the original compressor is noisy, seized, or won’t engage, replacing it with a fresh unit is the core of an A/C repair. Because debris from a failed compressor spreads through the system, a proper install includes flushing and replacing the drier and metering device.
Know exactly what you’re ordering
The details that decide whether this compressor matches your unit:
Match it, bolt it, cool it
Complete, ready to bolt on
Ships as a complete TM15HD compressor with the 8-groove clutch already fitted (12V).
Vertical O-ring
Vertical O-ring service ports for straightforward hose routing.
Seltec / Valeo TM15 family
A TM15HD — the heavy-duty TM15 used across commercial and heavy-duty A/C systems.
Identify by the numbers
No vehicle list is published for this unit — match it by its cross-reference numbers and physical specs against your original.
Wide cross-reference
Cross-references UAC CO 45120Q, Seltec, Valeo, Omega and more — see the table below.
Restores cooling
The compressor is the heart of the A/C system; a fresh unit brings cooling back on a worn or seized original.
How to confirm it fits
No vehicle application list is published for this compressor. Match it to your original by these points:
Match on: pulley grooves (8) · clutch voltage (12V) · vertical O-ring ports. Then confirm against the cross-reference numbers below. If you need the exact pulley diameter or port sizes, contact us and we’ll confirm.
Not sure? Send us the numbers off your old compressor and we’ll confirm the right unit before you order — call 480-507-2229 or text 480-856-7833.
Interchange & cross-reference numbers
This compressor cross-references the following OEM and aftermarket numbers. Listed for identification only.
| Brand | Part number(s) |
|---|---|
| UAC | CO 45120Q |
| Seltec | 43555120 · 48845120 |
| Valeo | 10045120 |
| Omega | 20QP151171 · 2010294HP · 2010294 |
| Airpro | 2045120 |
| Carlisle | 3025015 |
| I.C.E. | 2521171 |
| Austin Baker | 10311901 |
| AFI | 0151 |
| Panafrio | 2013387 |
Technical specs
Installing a new compressor? Flush the system, replace the receiver-drier or accumulator and the expansion / orifice device, and follow the correct oil charge before you evacuate and recharge. Skipping these steps is the most common cause of a repeat failure.
