7SAS17C A/C compressor — Ford F-150 (2017–2020)

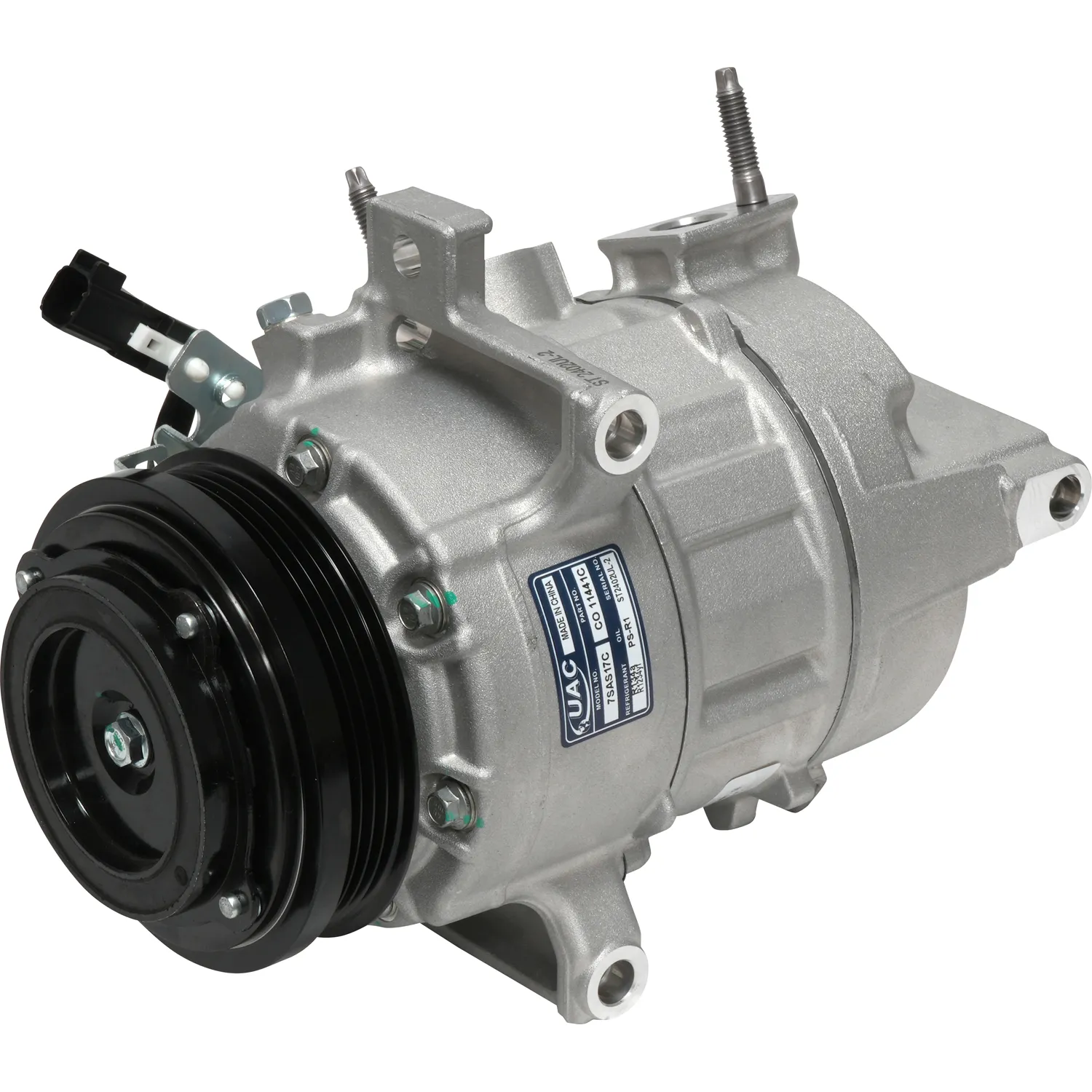

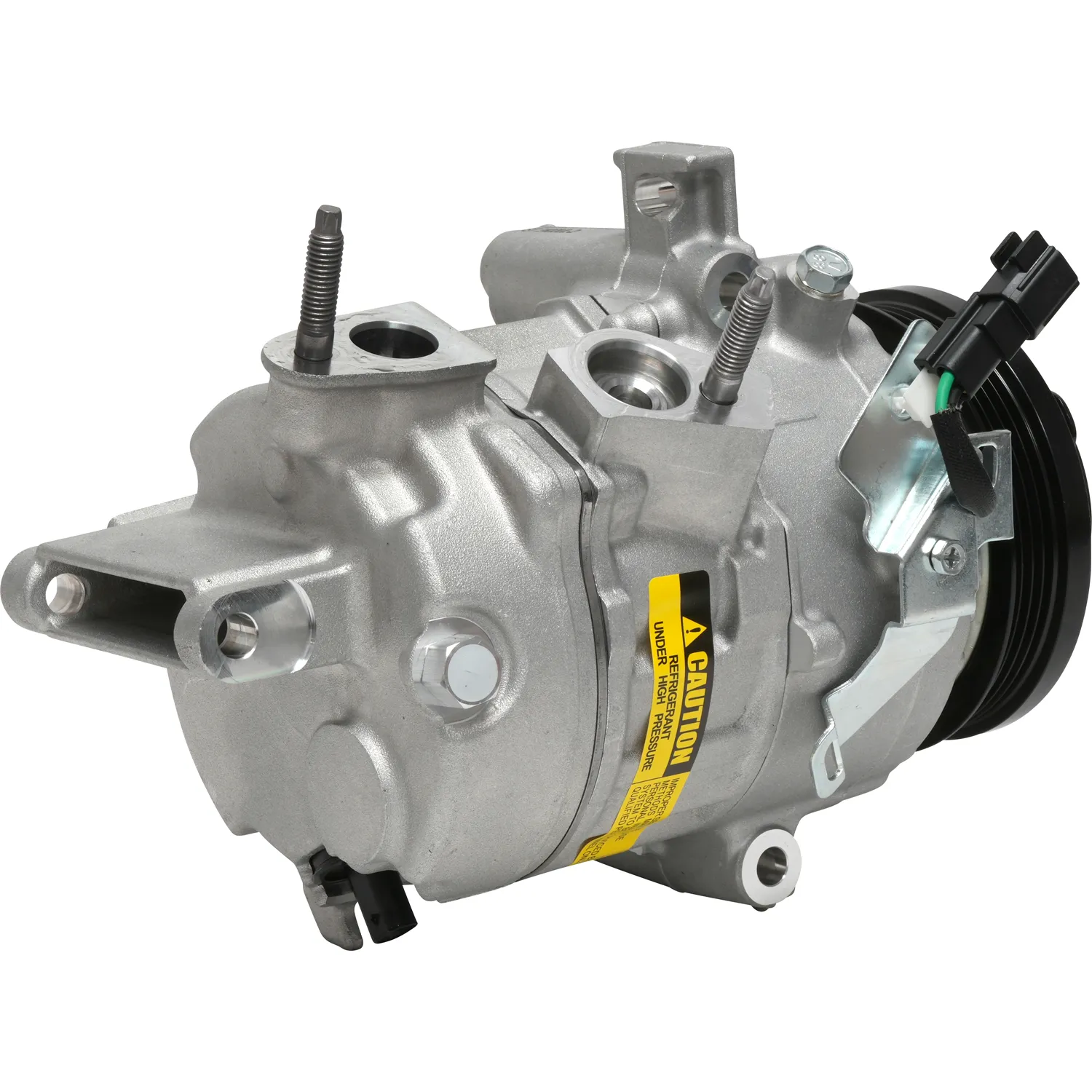

A complete UAC 7SAS17C variable-displacement compressor assembly with clutch, built to OE specification for the 2017–2020 Ford F-150. Ships ready to bolt on — 4-groove clutch, 110 mm pulley, 12 volt, with control valve and clutch diode, set up for R-134a. A direct replacement for UAC CO 11441C and Motorcraft YCC614.
Confirm these before you order
Compressors that look alike can differ at the clutch and ports. Check your original against this configuration — note this F-150 unit uses a 4-groove clutch:
Confirm before ordering. Match the clutch groove count, pulley diameter, port sizes, and clocking to your original — or call us with your VIN and we’ll confirm the right compressor.
A direct-fit replacement
OE-spec fit
A UAC 7SAS17C unit built to original-equipment specification for the 2017–2020 Ford F-150 — replaces UAC CO 11441C and Motorcraft YCC614.
Variable displacement
Includes the control valve, so the compressor modulates output for steady cooling and smoother operation.
Clutch & diode included
Comes as a complete assembly with the 4-groove, 12 V clutch and suppression diode fitted.
R-134a ready
Set up for R-134a systems — charge to the vehicle’s specification.
Wide interchange
Cross-references UAC, Ford, Motorcraft, Denso, and more — see the table below.
Restores cooling
Brings the A/C back to full output when a worn or seized compressor has quit.
Vehicle compatibility
Built for the following. Confirm your year, engine, and compressor configuration against your original before ordering.
| Make | Model | Years |
|---|---|---|
| Ford | F-150 | 2017–2020 |
Confirm before ordering. The F-150 was offered with more than one engine — match your Ford or Motorcraft number and the clutch/port layout to your original, or call us with your VIN and we’ll confirm.
OE & interchange numbers
Match your old compressor against the numbers below.
| Brand | Part number(s) |
|---|---|
| UAC | CO 11441C |
| Ford (OE) | HL3H-19D629-VA / VB / VC / VD / VE / VF · JL14-19D629-AB / AC · HL3Z-19703-V / Y · JL1Z-19703-AB · KL1Z-19703-A |
| Motorcraft | YCC614 · YCC453 · YCC423 |
| Denso | 447250-0863 |
| Four Seasons | 168386 |
| Omega | 20-11728 · 20-11751 |
| Global Parts Distributors | 7513360 · 6513360 · 7513397 · 6513397 |
| Ranshu | 141593FD · 141593C · 141593NC · 141464FD · 141464C · 141464NC · 141464 |
| Transtar AC | ACC1464 |
Technical details
Renew these while the system’s open
Any time you replace a compressor, renew the wear parts and set the oil — it protects your new compressor and your warranty:
Accumulator / drier
Always replace the drier with the compressor so moisture and debris don’t reach the new unit.
Shop driers →Expansion valve / orifice
Replace the metering device so refrigerant flows correctly and debris is caught.
Shop metering devices →PAG oil & UV dye
Set the correct PAG charge for your system and add UV dye to catch future leaks fast.
Shop oil →Fit it right
A new compressor fails fast if the system isn’t flushed and the oil isn’t set. Do it in order:
Recover & flush
Recover the charge, then flush the system to clear debris from any prior compressor failure.
Replace wear parts
Fit a new drier and metering device, and new O-rings at every connection you open.
Set the oil
Measure and set the correct PAG oil charge for the system before install.
Evacuate & recharge
Pull a deep vacuum, then charge to the vehicle’s R-134a specification.
