Description

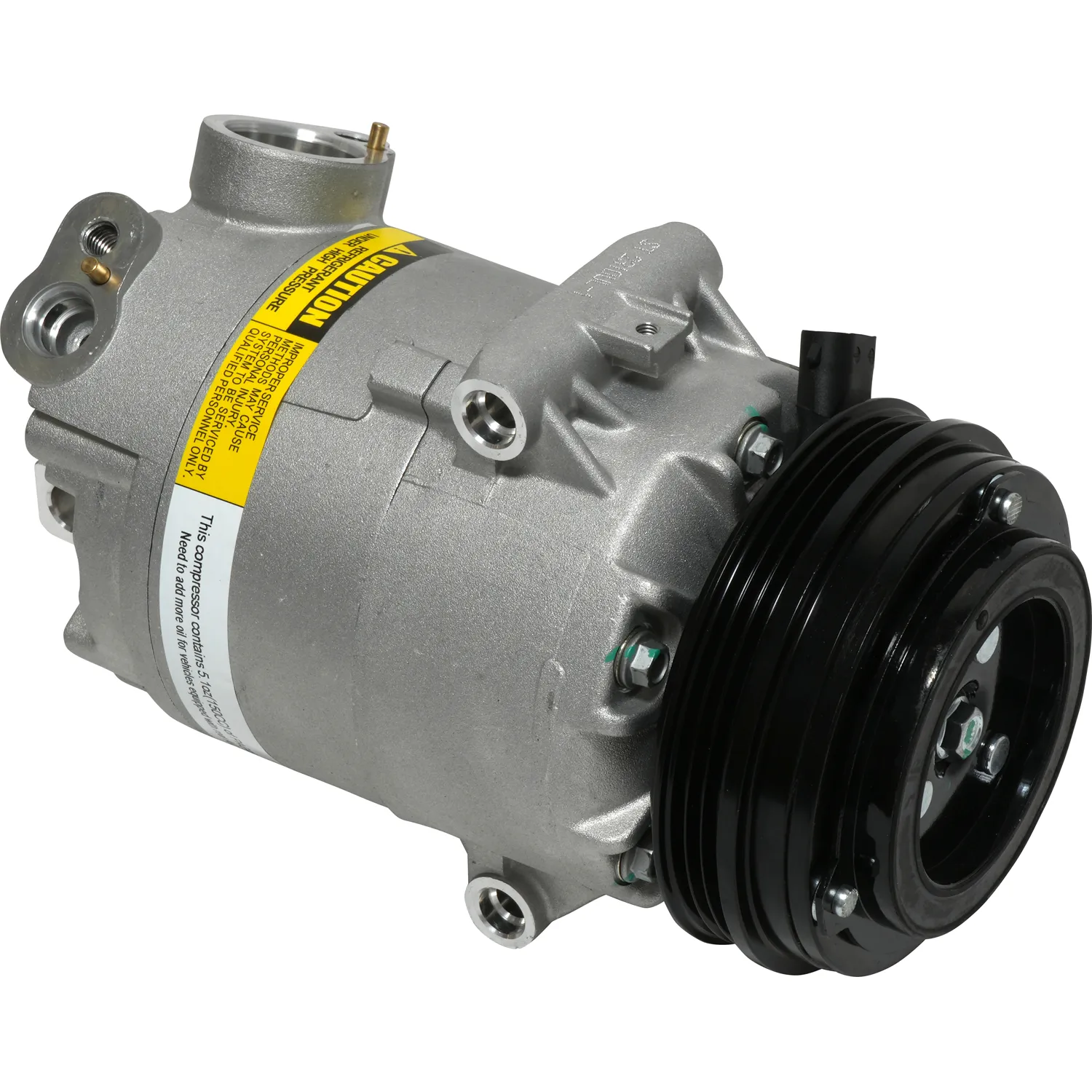

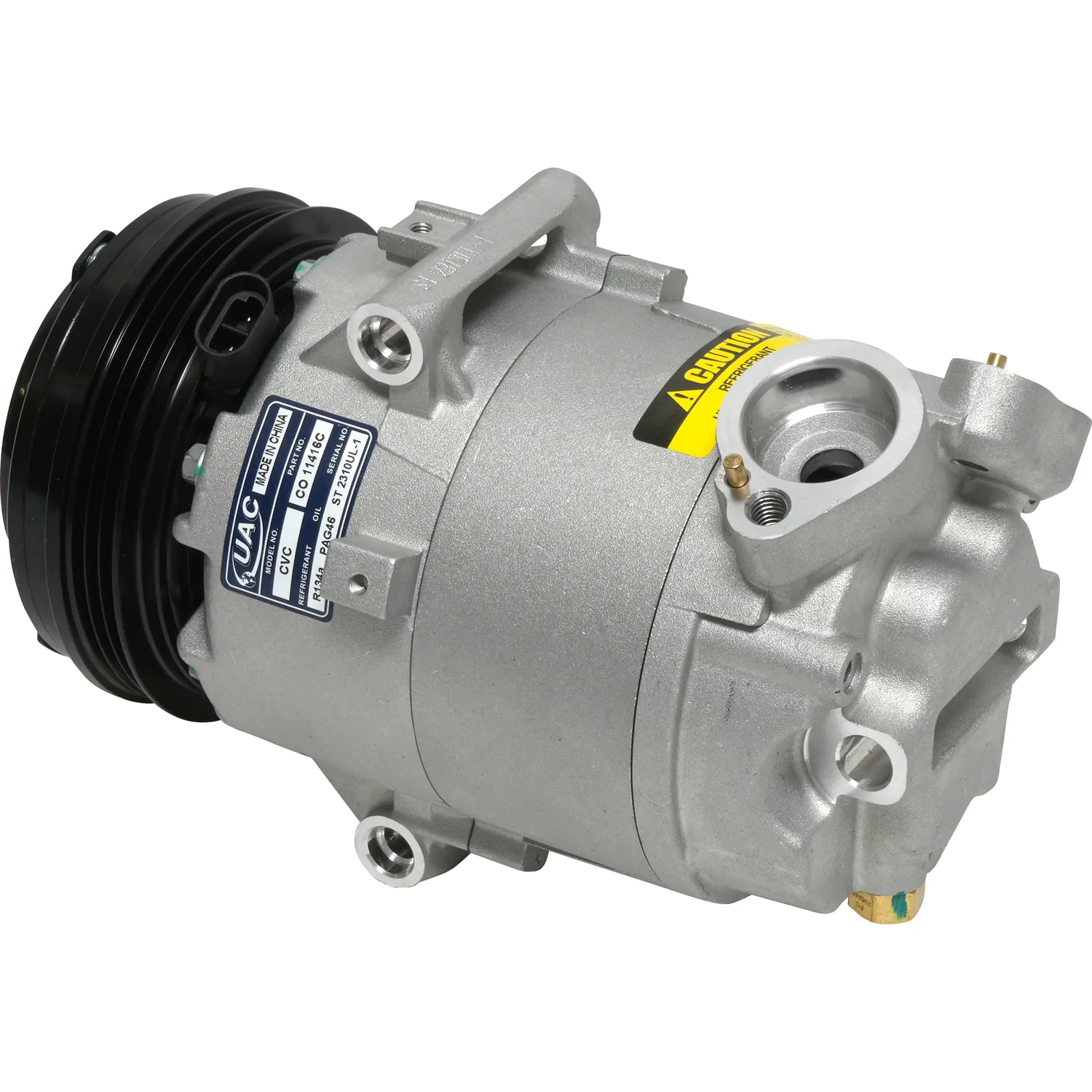

CVC A/C compressor — Volkswagen Fox (2007–2015)
A complete UAC CVC variable-displacement compressor assembly with clutch, built to OE specification for the 2007–2015 Volkswagen Fox. Ships ready to bolt on — 3-groove clutch, 110 mm pulley, 12 volt, with control valve, set up for R-134a. A direct replacement for UAC CO 11416C and VW/Audi 5U0820803.
Confirm these before you order
Compressors that look alike can differ at the clutch and ports. Check your original against this configuration:
Confirm before ordering. Match the clutch groove count, pulley diameter, port sizes, and clocking to your original — or call us with your VIN and we’ll confirm the right compressor.
A direct-fit replacement
OE-spec fit
A UAC CVC unit built to original-equipment specification for the 2007–2015 VW Fox — replaces UAC CO 11416C and VW/Audi 5U0820803.
Variable displacement
The CVC design with control valve modulates output for steady cooling and smoother operation.
Clutch included
Comes as a complete assembly with the 3-groove, 12 V clutch fitted — no separate clutch to source.
R-134a ready
Set up for R-134a systems — charge to the vehicle’s specification.
Wide interchange
Cross-references UAC, VW/Audi, Delphi, MAHLE, and more — see the table below.
Restores cooling
Brings the A/C back to full output when a worn or seized compressor has quit.
Vehicle compatibility
Built for the following. Confirm your year, engine, and compressor configuration against your original before ordering.
| Make | Model | Years |
|---|---|---|
| Volkswagen | Fox | 2007–2015 |
Confirm before ordering. Match your VW/Audi number and the clutch/port layout to your original, or call us with your VIN and we’ll confirm.
OE & interchange numbers
Match your old compressor against the numbers below.
| Brand | Part number(s) |
|---|---|
| UAC | CO 11416C |
| VW / Audi (OE) | 5U0820803 |
| Delphi | CS20053 |
| MAHLE | ACP0216 · ACP216 |
| Ranshu | 141959NEW · 141959NC · 141959C · 141959 |
Technical details
Renew these while the system’s open
Any time you replace a compressor, renew the wear parts and set the oil — it protects your new compressor and your warranty:
Accumulator / drier
Always replace the drier with the compressor so moisture and debris don’t reach the new unit.
Shop driers →Expansion valve / orifice
Replace the metering device so refrigerant flows correctly and debris is caught.
Shop metering devices →PAG oil & UV dye
Set the correct PAG charge for your system and add UV dye to catch future leaks fast.
Shop oil →Fit it right
A new compressor fails fast if the system isn’t flushed and the oil isn’t set. Do it in order:
Recover & flush
Recover the charge, then flush the system to clear debris from any prior compressor failure.
Replace wear parts
Fit a new drier and metering device, and new O-rings at every connection you open.
Set the oil
Measure and set the correct PAG oil charge for the system before install.
Evacuate & recharge
Pull a deep vacuum, then charge to the vehicle’s R-134a specification.
Add to your order
| Image | Product Name | SKU | Price | In Stock | Quantity | Add To Cart |
|---|---|---|---|---|---|---|
|
Condenser Manifold Fitting · #6 Hose @ 3 O'clock · Custom / LS Swap | 234-544 | $47.25 | 47 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 6 O'clock · Custom / LS Swap | 234-545 | $47.25 | 45 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 9 O'clock · Custom / LS Swap | 234-546 | $47.25 | 48 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 3 O'clock · 10S20F/10S17F | 234-547 | $47.25 | 32 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 6 O'clock · 10S20F/10S17F | 234-548 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 9 O'clock · 10S20F/10S17F | 234-549 | $47.25 | 42 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 3 O'clock · 10S20F/10S17F | 234-550 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 6 O'clock · 10S20F/10S17F | 234-551 | $47.25 | 45 in stock |
Compressor FAQ
Does it come with the clutch?
What is a CVC compressor?
Will it fit my Fox?
What does it replace?
Do I need to replace anything else?
Match your compressor before you buy
Send us your year and VIN and we’ll confirm the right CVC compressor and the parts to complete the repair.
Add to cart ↑ Confirm my fitmentVolkswagen®, Audi®, UAC®, and all manufacturer names and part numbers are trademarks of their respective owners and are listed for identification and cross-reference purposes only; their use does not imply affiliation or endorsement. This is a replacement compressor assembly. Confirm year, engine, clutch configuration, port sizes, and clocking against your vehicle before ordering.
