Description

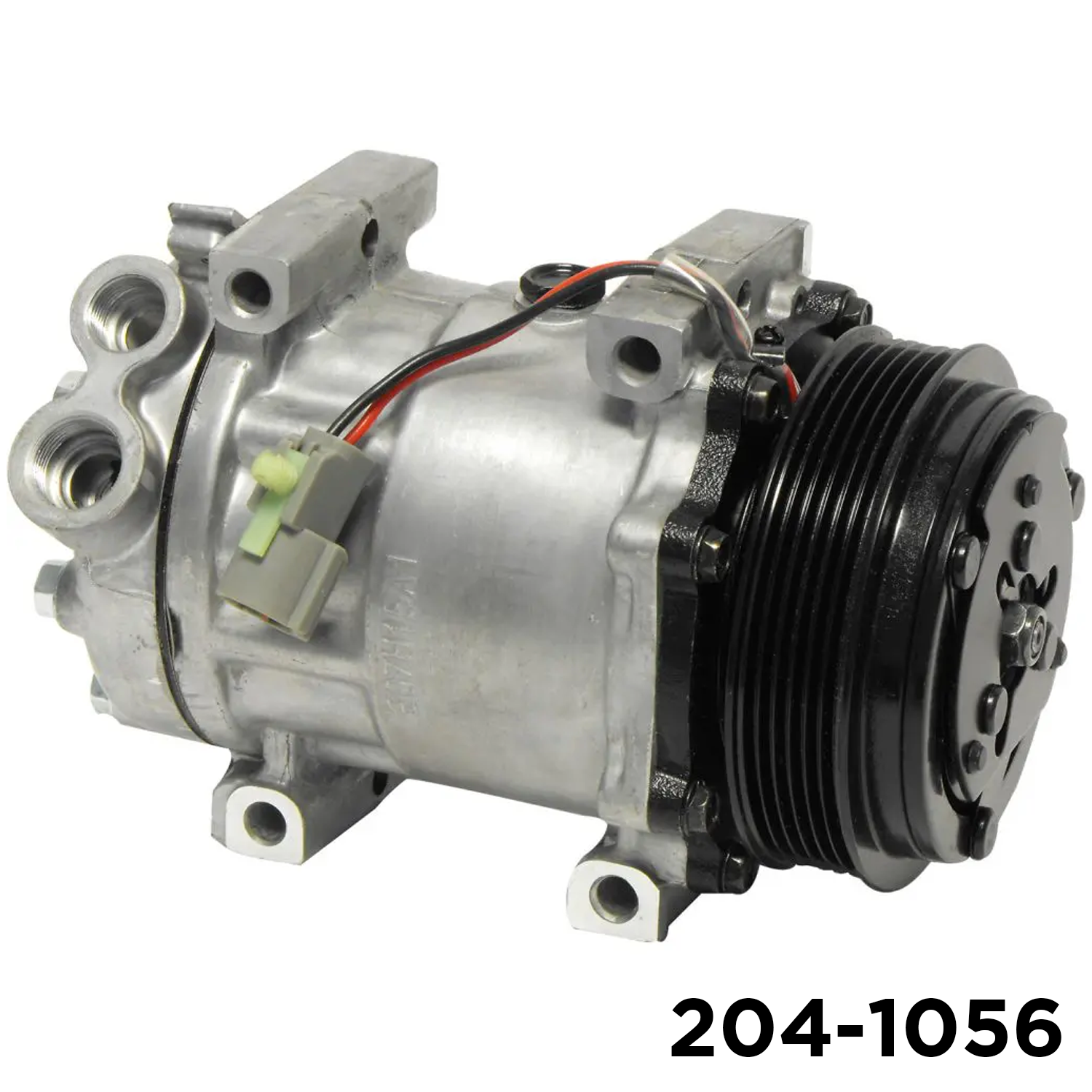

SD7H15 A/C Compressor — 6-Groove, for Ford HD/AG Truck & Motorhome
A complete SD7H15 compressor assembly with the clutch already fitted — a 6-groove poly-V pulley (121 mm) and WH cylinder head, built for Ford heavy-duty and agricultural trucks and motorhome chassis.
The heart of the A/C system
The compressor pressurizes and circulates refrigerant through the A/C system — without it, there’s no cooling. This is the complete SD7H15 assembly, clutch included, for these Ford heavy-duty and motorhome applications.
When the original compressor is noisy, seized, or won’t engage, replacing it with a fresh unit is the core of an A/C repair. Because debris from a failed compressor spreads through the system, a proper install includes flushing and replacing the drier and metering device.
Know exactly what you’re ordering
The details that decide whether this compressor matches your truck:
Cooling built for the work
Complete, ready to bolt on
Ships as a complete SD7H15 compressor with the 6-groove poly-V clutch already fitted (121 mm pulley).
SD7H15 — a proven pump
The Sanden-family SD7H15 is a widely used A/C compressor known for strong, reliable cooling.
Ford HD / AG & motorhome
Built for the heavy-duty and agricultural Ford trucks and motorhome chassis it serves — see the fitment table.
Wide cross-reference
Cross-references Ford OEM and Motorcraft numbers plus Sanden, UAC, Four Seasons and more — see the table below.
Restores cooling
The compressor is the heart of the A/C system; a fresh unit brings cooling back on a worn or seized original.
6-groove poly-V pulley
A 6-rib serpentine (poly-V) clutch pulley, 121 mm, with a WH cylinder head.
Vehicle applications
This SD7H15 assembly is listed for the following Ford applications:
| Make & model | Years |
|---|---|
| Ford F-53 Motorhome Chassis | 2004–2016 |
| Ford F-550 Super Duty | 2003 |
| Ford F-59 Commercial Stripped Chassis | 2011–2015 |
Confirm your year, model, clutch voltage and pulley (6-groove, 121 mm) against your original before ordering. Not sure? Send us your numbers and we’ll confirm.
Interchange & cross-reference numbers
This compressor cross-references the following OEM and aftermarket numbers. Listed for identification only.
| Brand | Part number(s) |
|---|---|
| UAC | CO 4848C |
| Ford | 2C3H19D629CAZZ · 7U9419D629AA · 6U9Z19703A · 6U9419D629AA · 2C3H19D629CA · 2C3Z19703CB |
| Motorcraft | YCC187 · YC2496 · YCC136 |
| Sanden | 4848 · 4035 · 4371 |
| AC Delco | 1521776 · 1521807 · 1521810 |
| AP Air Inc. | 5096541 |
| Austin Baker | 10366181 |
| Carlisle | 3013391 |
| Four Seasons | 78575 · 77575 |
| MEI | 54848 |
| Omega | 2004848 |
| TTAC | 3004690 |
Technical specs
Installing a new compressor? Flush the system, replace the receiver-drier or accumulator and the expansion / orifice device, and follow the correct oil charge before you evacuate and recharge. Skipping these steps is the most common cause of a repeat failure.
Shop A/C compressors
Browse related compressors and clutches and set your quantities in one place.
| Image | Product Name | SKU | Price | In Stock | Quantity | Add To Cart |
|---|---|---|---|---|---|---|
|
Condenser Manifold Fitting · #6 Hose @ 3 O'clock · Custom / LS Swap | 234-544 | $47.25 | 47 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 6 O'clock · Custom / LS Swap | 234-545 | $47.25 | 45 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 9 O'clock · Custom / LS Swap | 234-546 | $47.25 | 48 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 3 O'clock · 10S20F/10S17F | 234-547 | $47.25 | 32 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 6 O'clock · 10S20F/10S17F | 234-548 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 9 O'clock · 10S20F/10S17F | 234-549 | $47.25 | 42 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 3 O'clock · 10S20F/10S17F | 234-550 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 6 O'clock · 10S20F/10S17F | 234-551 | $47.25 | 45 in stock |
FAQ
Is the clutch included?
What compressor is this?
Will it fit my Ford?
What does “HD/AG” mean?
Do I need to add oil?
What else should I replace?
Call, text, email or live chat
Send us your old compressor’s numbers and we’ll confirm the right unit. Reach our Mesa, AZ team whichever way is easiest.
All manufacturer names and part numbers are trademarks of their respective owners and are listed for identification and cross-reference purposes only; their use does not imply affiliation or endorsement. Confirm your year, model, clutch and pulley before ordering.
