Description

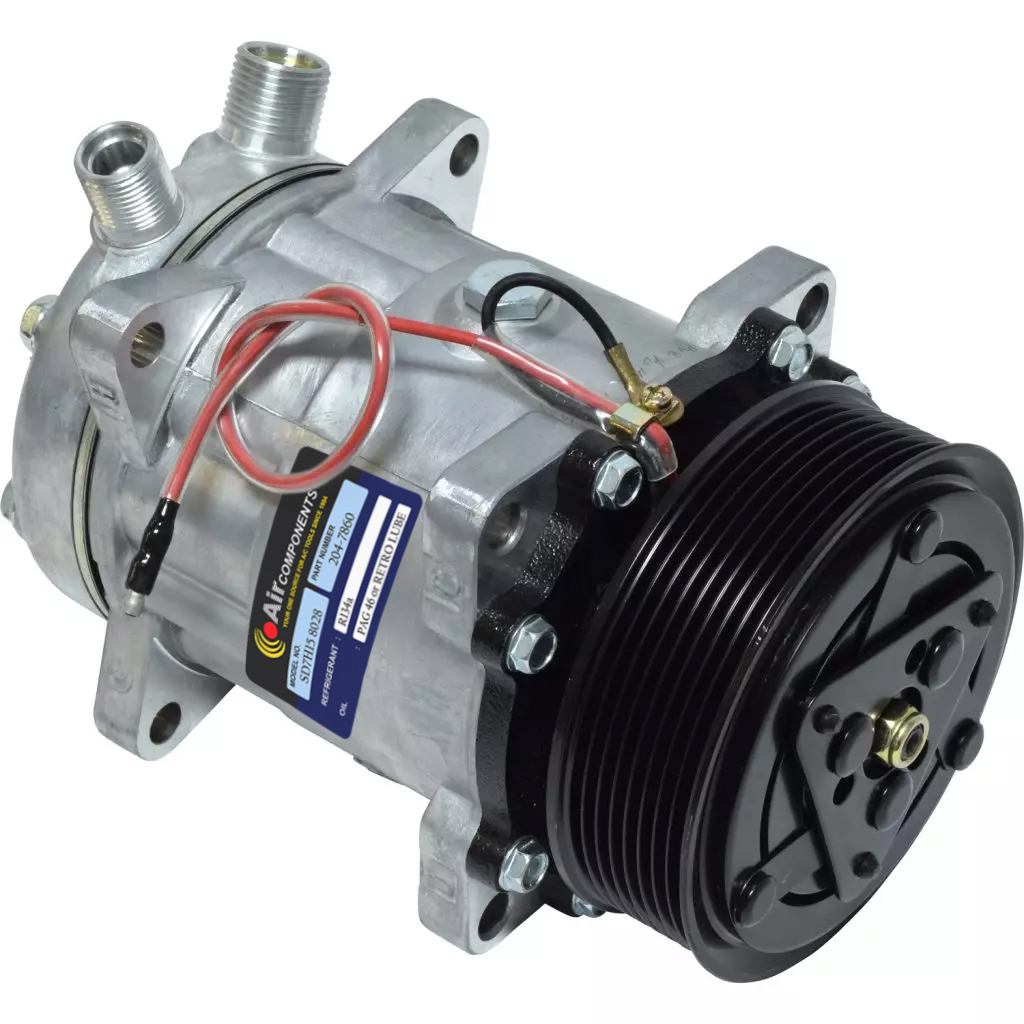

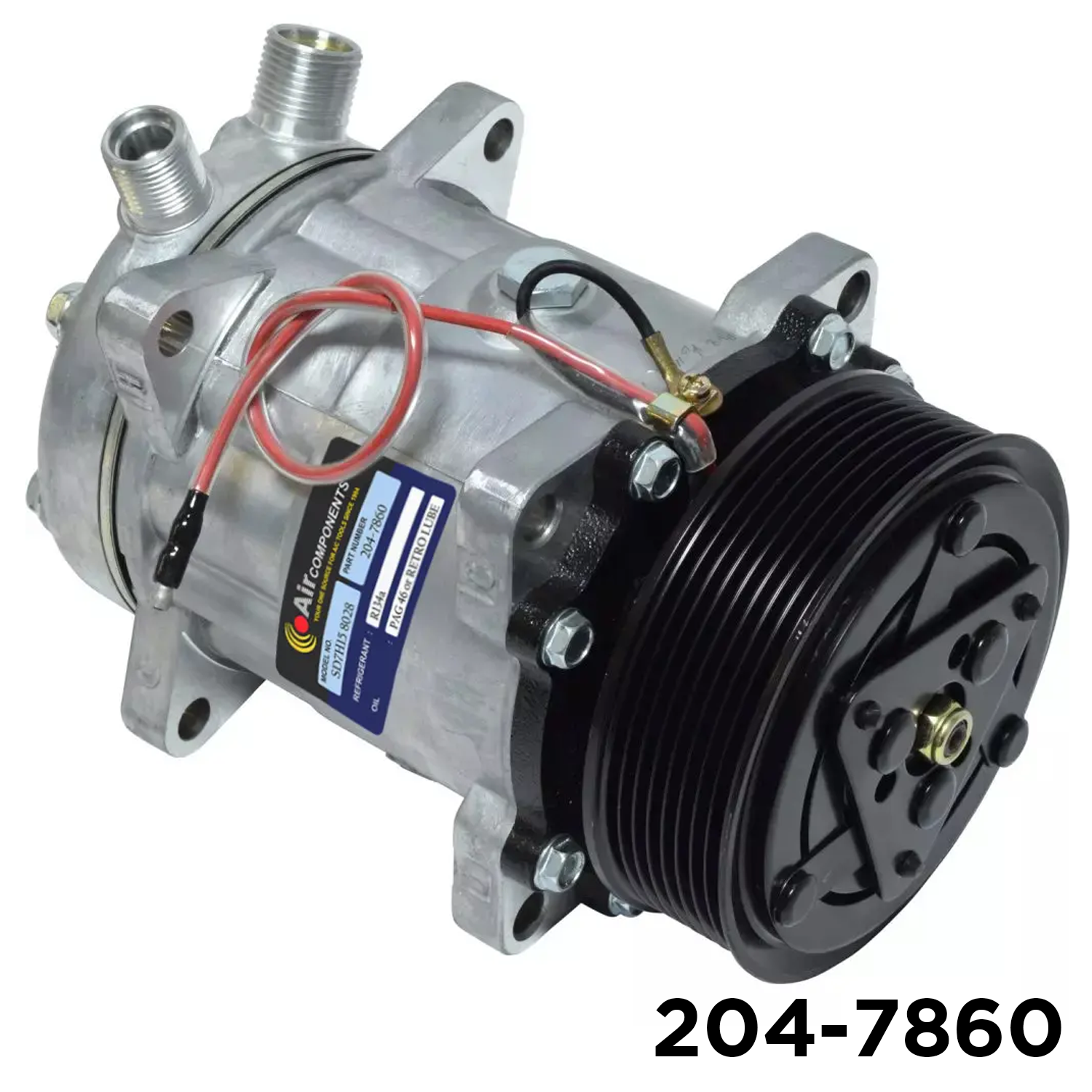

Sanden SD7H15 A/C Compressor — 8-Groove, 12V, Vertical O-Ring (#8 & #10)
A complete SD7H15 compressor assembly with the clutch already fitted — an 8-groove poly-V pulley (119 mm), 12V clutch, and vertical O-ring service ports in #8 and #10. A heavy-duty / agricultural unit.
The heart of the A/C system
The compressor pressurizes and circulates refrigerant through the A/C system — without it, there’s no cooling. This is the complete SD7H15 assembly, clutch included.
When the original compressor is noisy, seized, or won’t engage, replacing it with a fresh unit is the core of an A/C repair. Because debris from a failed compressor spreads through the system, a proper install includes flushing and replacing the drier and metering device.
Know exactly what you’re ordering
The details that decide whether this compressor matches your unit:
Match it, bolt it, cool it
Complete, ready to bolt on
Ships as a complete SD7H15 compressor with the 8-groove poly-V clutch already fitted (119 mm pulley, 12V).
Vertical O-ring, #8 & #10
Vertical O-ring service ports in #8 and #10 — suction 16 mm, discharge 13 mm — clocked at 12 o’clock.
Heavy-duty & agricultural
The cross-reference list spans heavy trucks (Freightliner, Kenworth, Peterbilt) and ag equipment (CNH, New Holland, Hesston, IH).
Identify by the numbers
No vehicle list is published for this unit — match it by its cross-reference numbers and physical specs against your original.
Wide cross-reference
Cross-references Sanden 4711, UAC CO 4711C and many truck and ag HVAC brands — see the table below.
Restores cooling
The compressor is the heart of the A/C system; a fresh unit brings cooling back on a worn or seized original.
How to confirm it fits
No vehicle application list is published for this compressor. Match it to your original by these points:
Match on: pulley grooves (8, poly-V) · pulley diameter (119 mm) · clutch voltage (12V) · clocking (12 o’clock) · ports (vertical O-ring #8 & #10; suction 16 mm, discharge 13 mm). Then confirm against the cross-reference numbers below.
Not sure? Send us the numbers off your old compressor and we’ll confirm the right unit before you order — call 480-507-2229 or text 480-856-7833.
Interchange & cross-reference numbers
This compressor cross-references the following OEM and aftermarket numbers. Listed for identification only.
| Brand | Part number(s) |
|---|---|
| UAC | CO 4711C |
| Sanden | 4711 · 8103 · 7492 · 7890 · 8FK351126001 |
| Freightliner | 304562 |
| Kenworth | 15628022 |
| Peterbilt | 1804081 |
| CNH | 82008689 |
| New Holland | 82008689 |
| Hesston | 82016157 |
| I.H. | 82016158 |
| AFI | 0424 · 0297 |
| Airpro | 204711 · 207492 |
| Austin Baker | 10347161 |
| Carlisle | 3013000 · 3013001 |
| Compressor Works | 638565 |
| Four Seasons | 78565 · 77565 |
| Frigette | 204878 |
| Global Parts Distributors | 7511647 · 6511647 · 5511647 · 7811647 |
| MEI | 5706E · 5182W5201 |
| NAPA | 967209 · TEM967209 |
| Omega | 2004154 · 2010138 · 2010017 · 2010017AM |
| Ranshu | 14SD4711 · 14SD4711NC · 14SD4711NEW |
| Sunair | CO2052CA |
| TTAC | 3004409 |
Technical specs
Installing a new compressor? Flush the system, replace the receiver-drier or accumulator and the expansion / orifice device, and follow the correct oil charge before you evacuate and recharge. Skipping these steps is the most common cause of a repeat failure.
Shop A/C compressors
Browse related compressors and clutches and set your quantities in one place.
| Image | Product Name | SKU | Price | In Stock | Quantity | Add To Cart |
|---|---|---|---|---|---|---|
|
Condenser Manifold Fitting · #6 Hose @ 3 O'clock · Custom / LS Swap | 234-544 | $47.25 | 47 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 6 O'clock · Custom / LS Swap | 234-545 | $47.25 | 45 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 9 O'clock · Custom / LS Swap | 234-546 | $47.25 | 48 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 3 O'clock · 10S20F/10S17F | 234-547 | $47.25 | 32 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 6 O'clock · 10S20F/10S17F | 234-548 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 9 O'clock · 10S20F/10S17F | 234-549 | $47.25 | 42 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 3 O'clock · 10S20F/10S17F | 234-550 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 6 O'clock · 10S20F/10S17F | 234-551 | $47.25 | 45 in stock |
FAQ
Is the clutch included?
There’s no vehicle list — how do I know it fits?
What compressor is this?
What are the ports?
Do I need to add oil?
What else should I replace?
Call, text, email or live chat
Send us your old compressor’s numbers and we’ll confirm the right unit. Reach our Mesa, AZ team whichever way is easiest.
All manufacturer names and part numbers are trademarks of their respective owners and are listed for identification and cross-reference purposes only; their use does not imply affiliation or endorsement. Confirm the match by cross-reference and physical specs before ordering.
