Description

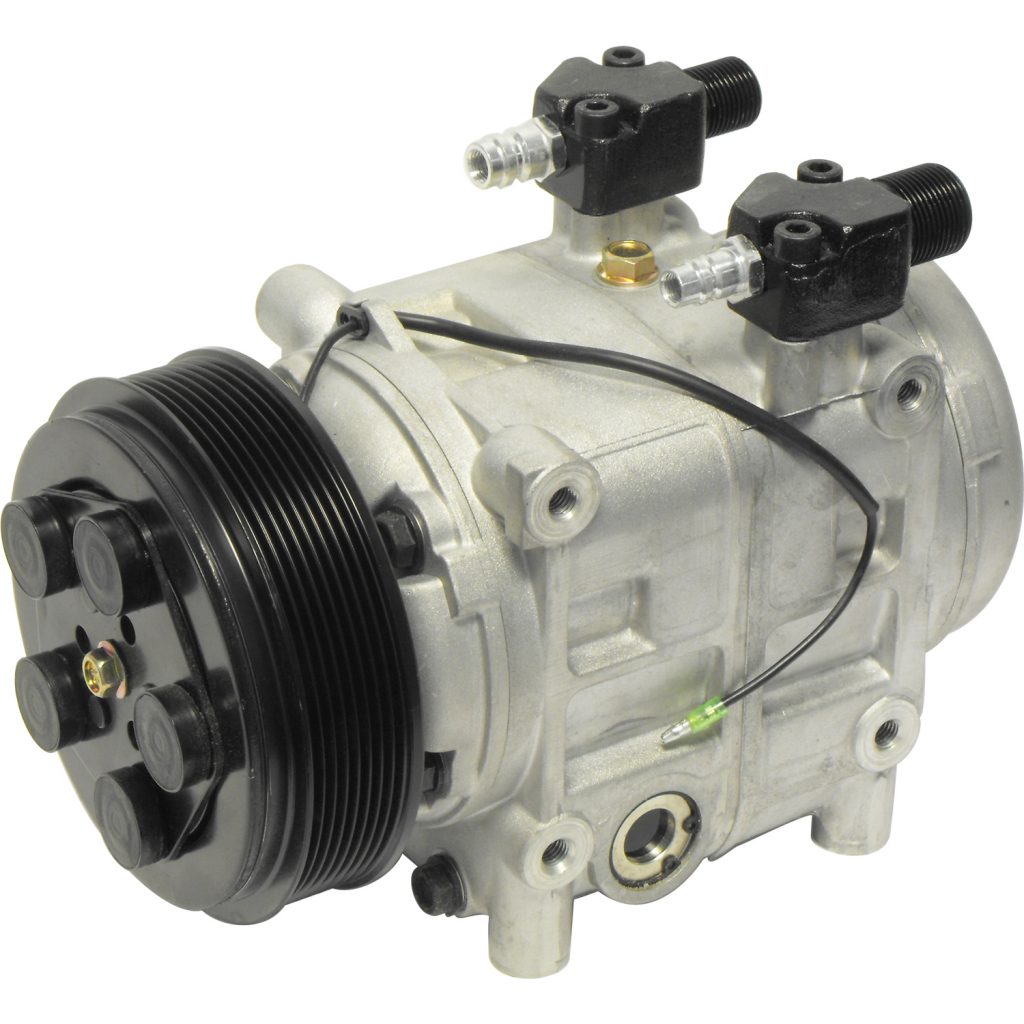

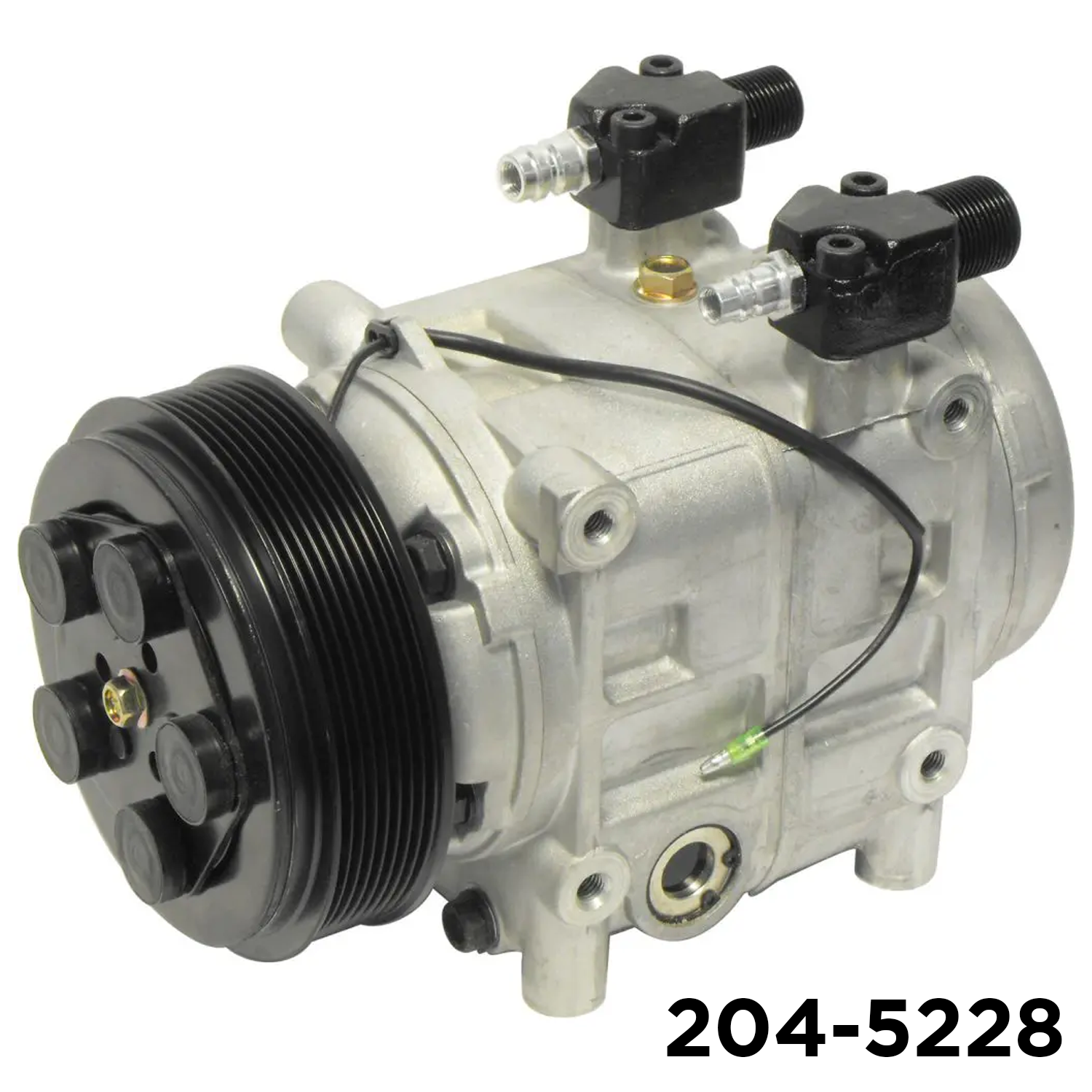

TM31 A/C Compressor — 8-Groove, 151 mm, Direct Mount
A complete TM31 A/C compressor assembly with the clutch already fitted — a large-displacement unit for heavy-duty and bus & coach air-conditioning. 8-groove 151 mm pulley, 12V, direct mount, horizontal O-ring ports and clockwise rotation.
The heart of a heavy-duty A/C system
This is an A/C (refrigerant) compressor — it pressurizes and circulates refrigerant through the air-conditioning system. It is not a shop or industrial air compressor. The TM31 is a large-displacement unit built for the higher cooling demands of heavy-duty vehicles and bus & coach systems.
When the original compressor is noisy, seized, or won’t engage, a fresh unit is the core of the A/C repair. Because debris from a failed compressor spreads through the system, a proper install includes flushing and replacing the drier and metering device.
Know exactly what you’re ordering
The details that decide whether this compressor matches your unit:
Big-body cooling, done right
Complete, ready to bolt on
Ships as a complete TM31 compressor with the 8-groove clutch already fitted (151 mm pulley, 12V).
Large-displacement TM31
A big-body TM31 built for the higher cooling loads of heavy-duty and bus & coach A/C systems.
Direct mount, horizontal O-ring
Direct-mount body with horizontal O-ring ports — 1-1/8″-14 inlet and 7/8″-14 outlet.
CW rotation, no control valve
Clockwise rotation, with no internal control valve and no clutch diode.
Wide cross-reference
Cross-references UAC, Valeo, Seltec, Four Seasons, NAPA, Omega and more — see the table below.
Restores cooling
The compressor is the heart of the A/C system; a fresh unit brings cooling back on a worn or seized original.
Applications
Listed application for this TM31 assembly:
| Make & model | Years |
|---|---|
| Bus & Coach Intl (BCI) Falcon 45 | 2007–2009 |
Beyond the listed application, match this compressor to your original by its specs — grooves (8), pulley diameter (151 mm), voltage (12V), rotation (CW), mount (direct) and ports (horizontal O-ring, 1-1/8″-14 / 7/8″-14) — and by the cross-reference numbers below. Not sure? Send us your numbers and we’ll confirm.
Interchange & cross-reference numbers
This compressor cross-references the following OEM and aftermarket numbers. Listed for identification only.
| Brand | Part number(s) |
|---|---|
| UAC | CO 46540JC |
| AC Delco | 1521899 |
| Airpro | 2046540 |
| Carlisle | 3025931 |
| Four Seasons | 68702 · 67702 |
| Global Parts Distributors | 5512336 · 6512336 · 7512336 · 7812336 |
| I.C.E. | 2521213 |
| MEI | 5899 |
| NAPA | 937802 · TEM937802 |
| Omega | 2010283HP · 2010283 |
| Panafrio | 2013739 |
| Seltec | 48846540 |
| TTAC | 3006777 |
| Valeo | 46540 · 68540 · 10310283 · 10046540 |
Technical specs
Installing a new compressor? Flush the system, replace the receiver-drier or accumulator and the expansion / orifice device, and follow the correct oil charge before you evacuate and recharge. Skipping these steps is the most common cause of a repeat failure.
Shop A/C compressors
Browse related compressors and clutches and set your quantities in one place.
| Image | Product Name | SKU | Price | In Stock | Quantity | Add To Cart |
|---|---|---|---|---|---|---|
|
Condenser Manifold Fitting · #6 Hose @ 3 O'clock · Custom / LS Swap | 234-544 | $47.25 | 47 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 6 O'clock · Custom / LS Swap | 234-545 | $47.25 | 45 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 9 O'clock · Custom / LS Swap | 234-546 | $47.25 | 48 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 3 O'clock · 10S20F/10S17F | 234-547 | $47.25 | 32 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 6 O'clock · 10S20F/10S17F | 234-548 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 9 O'clock · 10S20F/10S17F | 234-549 | $47.25 | 42 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 3 O'clock · 10S20F/10S17F | 234-550 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 6 O'clock · 10S20F/10S17F | 234-551 | $47.25 | 45 in stock |
FAQ
Is this an air compressor or an A/C compressor?
Is the clutch included?
What compressor is this?
What are the ports and mount?
Which way does it turn, and does it use a control valve?
Will it fit my vehicle or equipment?
What else should I replace?
Call, text, email or live chat
Send us your old compressor’s numbers and we’ll confirm the right unit. Reach our Mesa, AZ team whichever way is easiest.
All manufacturer names and part numbers are trademarks of their respective owners and are listed for identification and cross-reference purposes only; their use does not imply affiliation or endorsement. Confirm the match by cross-reference and physical specs before ordering.
