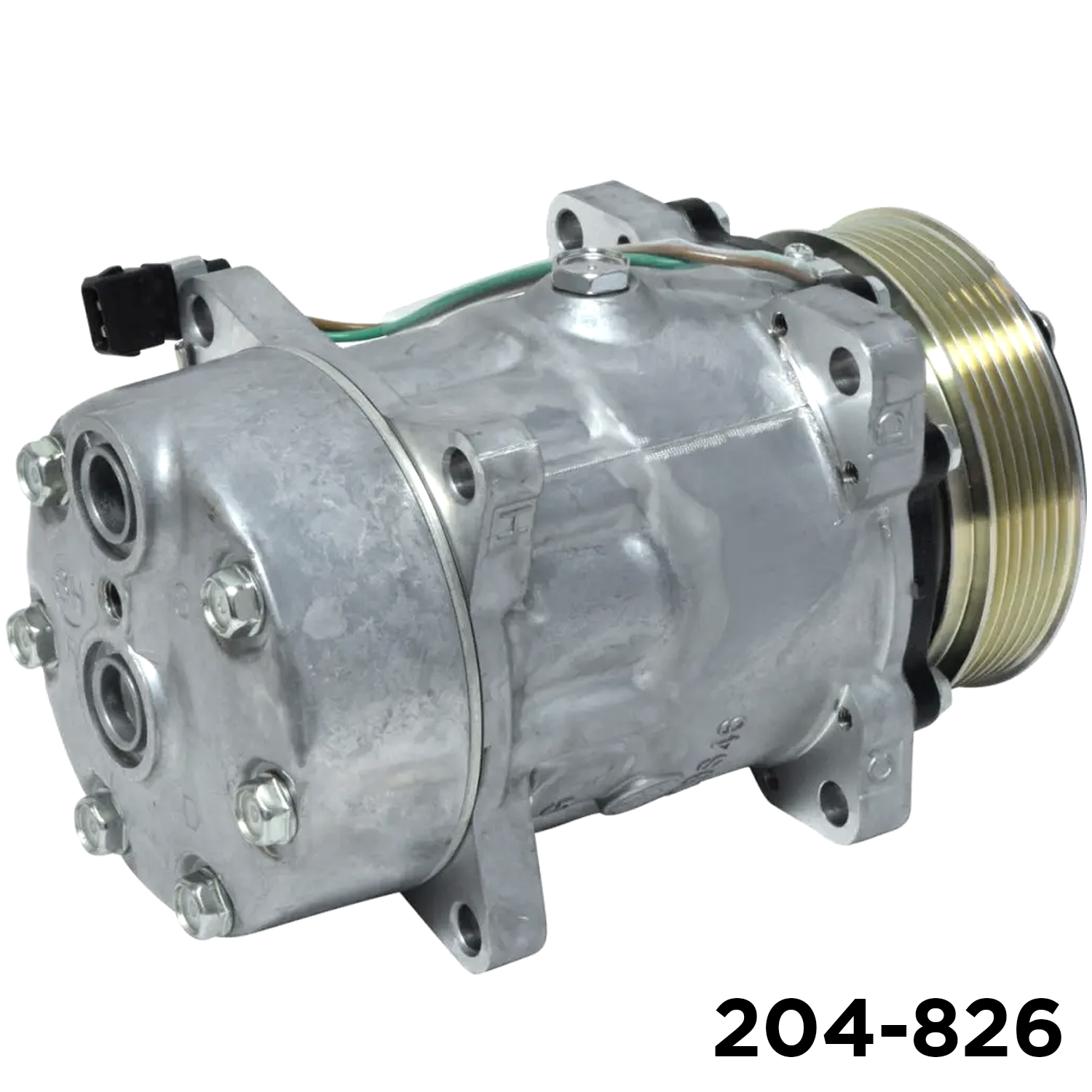

SD7H15 A/C Compressor Assembly — Volkswagen EuroVan
A direct-fit replacement Sanden-type SD7H15 air-conditioning compressor for the Volkswagen EuroVan, cross-referenced to Sanden 7820 / 7821 and UAC CO 7820. Complete assembly: 155 cc displacement, a 12V 6-groove clutch, 121 mm pulley and 22 mm belt, for R134a systems.
Built to replace the original EuroVan compressor
This SD7H15 compressor assembly is the pump at the heart of your EuroVan’s air conditioning — it circulates refrigerant so the system can cool. It’s supplied as a ready-to-install assembly with the clutch and pulley fitted, matched to the original by displacement, groove count, pulley diameter and belt width.
Use the specifications and the cross-reference list below to confirm it matches the unit on your van. If your old compressor carries a Sanden 7820/7821 or a UAC CO 7820 number — or any of the interchange numbers listed — this is your replacement.
The numbers that matter
Compressor specs
Pulley gauge-line (for belt alignment): first groove 28.75 mm · middle groove 37.65 mm · end groove 46.55 mm from the gauge line. Match your replacement by groove count, pulley diameter and belt width, and by the cross-reference numbers below. Set the system’s total oil charge to the vehicle manufacturer’s specification on install.
Vehicle application
Volkswagen EuroVan
1993 · 1994 · 1995
Fitment as listed by Air Components. Confirm your exact year and engine before ordering — send us your VIN if you want us to verify.
Interchange numbers
Cross-referenced to the following manufacturer and aftermarket numbers. Matching any one of these confirms fitment.
| Brand | Cross-reference |
|---|---|
| UAC | CO 7820 |
| AC Delco | 1521259 |
| AC Delco | 1521802 |
| Airpro | 207821 |
| Audi/Volkswagen | 701820807A |
| Audi/Volkswagen | 701820805DX |
| Audi/Volkswagen | 701820807AX |
| Carlisle | 3014830 |
| Compressor Works | 618595 |
| Four Seasons | 58595 |
| Four Seasons | 57595 |
| Frigette | 204826 |
| Global Parts Distributors | 5511940 |
| Global Parts Distributors | 7511940 |
| Global Parts Distributors | 6511940 |
| NAPA | 254077 |
| NAPA | 272386 |
| NAPA | TEM254077 |
| NAPA | TEM272386 |
| Omega | 2007820 |
| Ranshu | 142826NC |
| Ranshu | 142826 |
| Ready-Aire/Proliance | 2225N |
| Ready-Aire/Proliance | 2225 |
| Sanden | 7821 |
| Sanden | 7820 |
| Tech Choice Parts | 30641 |
| Visteon | 000571 |
Order this compressor
Add it to your cart below, or browse other compressors. Not sure it’s the right one? Contact us and we’ll confirm the fit first.
| Image | Product Name | SKU | Price | In Stock | Quantity | Add To Cart |
|---|---|---|---|---|---|---|
|
Condenser Manifold Fitting · #6 Hose @ 3 O'clock · Custom / LS Swap | 234-544 | $47.25 | 47 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 6 O'clock · Custom / LS Swap | 234-545 | $47.25 | 45 in stock | ||
|
Condenser Manifold Fitting · #6 Hose @ 9 O'clock · Custom / LS Swap | 234-546 | $47.25 | 48 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 3 O'clock · 10S20F/10S17F | 234-547 | $47.25 | 32 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 6 O'clock · 10S20F/10S17F | 234-548 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · High Side · #8 Hose @ 9 O'clock · 10S20F/10S17F | 234-549 | $47.25 | 42 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 3 O'clock · 10S20F/10S17F | 234-550 | $47.25 | 15 in stock | ||
|
A/C Compressor Manifold · Low Side · #10 Hose @ 6 O'clock · 10S20F/10S17F | 234-551 | $47.25 | 45 in stock |
Add this compressor to your cart
Direct-fit SD7H15 A/C compressor assembly for the Volkswagen EuroVan — 155 cc, 12V 6-groove clutch, 121 mm pulley, cross-referenced to Sanden 7820/7821.
Add to cart ↑FAQ
What vehicle does this compressor fit?
How do I know this is the right compressor for my van?
What clutch connector and voltage does it use?
How much oil does it take?
Can you confirm fitment or cross-reference a number for me?
