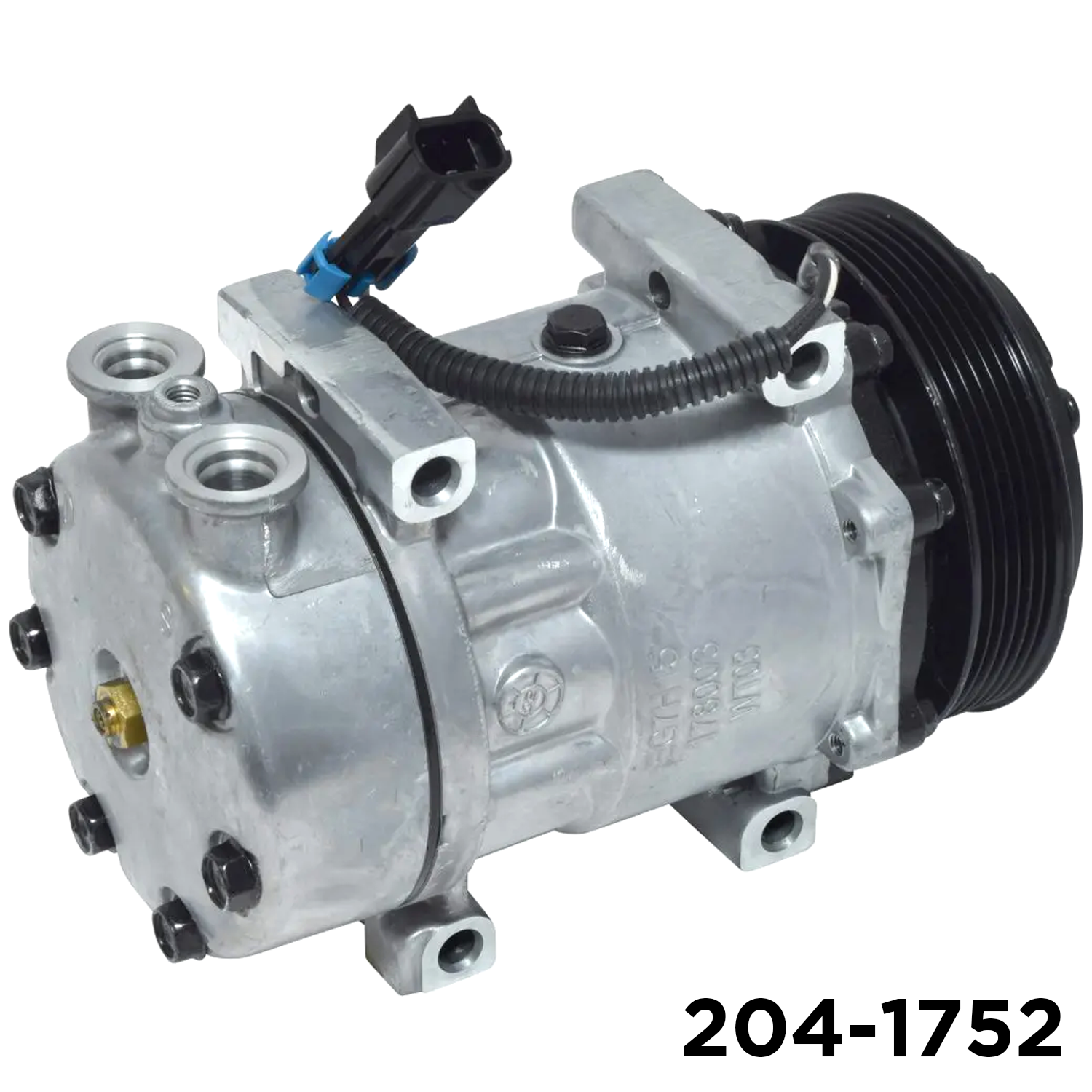

SD7H15 6-groove serpentine A/C compressor — Kenworth & Peterbilt
An SD7H15-style heavy-duty A/C compressor for serpentine-belt Class 8 trucks. It runs a 6-groove serpentine 125 mm clutch and the “GSA” vertical pad-mount head that bolts straight to Paccar (Kenworth / Peterbilt) manifold lines — built to HD spec for the high head pressures and long duty cycles these rigs see. Replaces Sanden 4424, 4039, and Paccar F69-6001-122.
Serpentine belt only. This is the 6-groove serpentine version. If your truck uses a V-belt (single or dual groove), this is not the right part — you likely need part #204-1559. Not sure which you have? Call 480-507-2229 and we’ll help you identify it.
Know exactly what you’re ordering
The configuration details that decide fitment on this compressor:
Built for serpentine-drive Class 8 trucks
Serpentine drive
A 125 mm, 6-groove clutch pulley for smooth, slip-free operation on modern serpentine belt systems.
Paccar GSA head
The vertical pad-mount (GSA) head is designed to bolt directly to OEM Kenworth and Peterbilt AC lines.
7-piston HD durability
The 7-piston SD7H15 design delivers more cooling capacity and longevity than older 5-piston compressors.
Ready to install
Includes a weather-pack style (Metri-Pack) connector and ships pre-loaded with assembly oil.
Wide interchange
Replaces Sanden 4424, 4039, and 4731, Paccar/Kenworth/Peterbilt numbers, and dozens more — see the table below.
Class 8 workhorse
Widely used on heavy trucks from the late 1990s to present, on Cat- and Cummins-powered chassis.
Vehicle compatibility
A direct replacement on these serpentine-belt trucks. Confirm your belt type, head (GSA vertical pad), and connector against your original before ordering.
| Make | Models (serpentine belt) |
|---|---|
| Kenworth | T600 · T660 · T800 · W900 |
| Peterbilt | 379 · 386 · 387 · 388 · 389 |
Engine applications: commonly Caterpillar C15 / C13 and Cummins ISX-equipped chassis, Class 8, late 1990s to present. Serpentine belt only — V-belt trucks need part #204-1559.
OEM interchange & cross-reference numbers
Match your old unit against the numbers below.
| Brand / platform | Part number(s) |
|---|---|
| Sanden | 4039 · 4424 · 4731 |
| UAC | CO 4424C |
| Kenworth | 4424SAN · 47316000 · F696001122 · 185000 |
| Peterbilt | F696001122 · F696002121 |
| Paccar | 47316000 |
| Freightliner | ABPN83304163 |
| Kysor | 1401404 · 1402032 · 1410002 |
| Red Dot | RD5102730 |
| MEI | 5362 · 5362G |
| Omega | 2004039 · 2004039AM · 2004039S · 2004731 · 2004731Q · 2014731 |
| NAPA | 967412 · TEM967412 |
| Four Seasons | 77595 · 78595 |
| Carlisle | 3011860 · 3011861 |
| Global Parts Distributors | 5512208 · 6512208 · 6812208 · 7512208 · 7812208 |
| Ranshu | 14SD4731 · 14SD4731C · 14SD4731NC · 14SD4731NEW |
| TruckAir | 031401 · 031401SQ |
| TTAC | 3004318 · 3004319 |
| Sunair | CO2010CA |
| Spectra Premium | 0690002 |
| AP Air | 509595 |
| Austin Baker | 10363181 |
| Frigette | 2041752 |
| AFI | 0018 |
Complete technical specs
Install it right — protect the warranty
Compressor replacement calls for standard climate-control practice to keep the system clean and the new unit covered.
Confirm belt & head
Verify serpentine 6-groove drive and the GSA vertical-pad head. V-belt trucks need #204-1559.
Flush the system
Clear out old oil, sludge, and debris from any prior compressor failure.
Renew components
Fit a fresh receiver-drier and a new expansion valve alongside the compressor.
Set oil & evacuate
It ships with assembly oil — set the correct total system oil, pull a deep vacuum, then charge R134a.
Recommended upgrade: Consider Fluoro-Dye Retrolube POE Oil (861-2112) during install — a premium lubricant with integrated UV leak-detection dye for easier troubleshooting.
SD7H15 (6-groove) FAQ
Is this the serpentine or the V-belt version?
Will it fit my Kenworth or Peterbilt?
What is the GSA head?
Does it come with oil?
What does it replace?
