Description

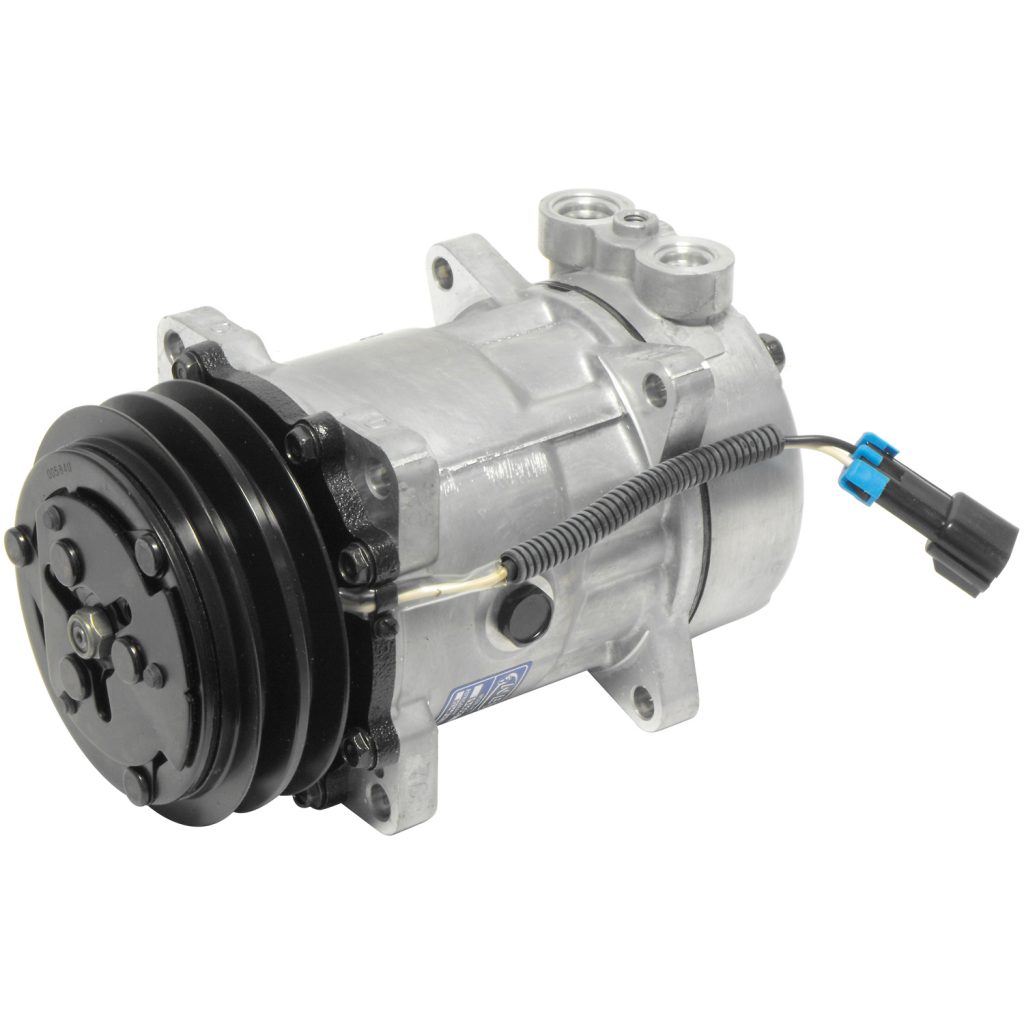

SD7H15 2-groove V-belt A/C compressor — Kenworth & Peterbilt
An SD7H15-style heavy-duty A/C compressor and the standard replacement for thousands of V-belt Peterbilt and Kenworth trucks. It runs a 2-groove V-belt 125 mm clutch and the “GQ” lateral pad (block-style) head with side-exit ports that bolt straight to Paccar manifold lines, on a long ear mount. Replaces Sanden 4696, 4041, and 4426.
V-belt (2-groove) version. This unit is for standard 1/2″ V-belt drives. If your truck uses a serpentine belt, this is not the right part — you need part #204-1752 (6-groove serpentine). Not sure which you have? Call 480-507-2229 and we’ll help you identify it.
Know exactly what you’re ordering
The configuration details that decide fitment on this compressor:
Built for V-belt-drive Class 8 trucks
V-belt drive
A 12V, 2-groove 125 mm clutch designed for standard 1/2″ V-belts — the classic Paccar setup.
GQ lateral head
The “GQ” lateral pad (block-style) head has side-exit ports that connect directly to OEM Kenworth and Peterbilt manifold hoses.
7-piston HD durability
The 7-piston SD7H15 design is built to handle the high vibration and long operating hours of the trucking industry.
Ready to install
Comes with a 2-wire male spade connector and ships pre-filled with oil — set total system oil at install.
Wide interchange
Replaces Sanden 4696, 4041, and 4426, Paccar/Kenworth/Peterbilt numbers, and dozens more — see the table below.
Class 8 workhorse
Fits a wide range of Paccar chassis from the late 1990s through the 2000s.
Vehicle compatibility
A direct replacement across these V-belt Paccar trucks. Confirm your belt type, head (GQ lateral pad), mount, and connector against your original before ordering.
| Make | Models (V-belt) |
|---|---|
| Peterbilt | 330 · 357 · 375 · 377 · 378 · 379 |
| Kenworth | T300 · T600 · T800 · W900 |
Application: Paccar chassis (Peterbilt & Kenworth), various years, late 1990s through the 2000s. V-belt only — serpentine trucks need part #204-1752.
OEM interchange & cross-reference numbers
Match your old unit against the numbers below.
| Brand / platform | Part number(s) |
|---|---|
| Sanden | 4041 · 4048 · 4089 · 4383 · 4426 · 4696 |
| UAC | CO 4696C |
| Kenworth | 4696E · 4426SAN · F691000 · F696001321 · F696002231 |
| Peterbilt | F696001231 · 1CC4696 · 1804145 |
| Freightliner | F696003231 |
| International | 2602742C91 |
| Kysor | 1401406 · 1401415 · 1410019 |
| Red Dot | 75R89602DS |
| MEI | 5373 · 5373S · 54048 · 54089 |
| Omega | 2004041 · 2004041AM · 2004041S · 2004089 · 2004696Q · 2011544 |
| NAPA | 254569 · 900346 · TEM254569 · TEM900346 |
| Four Seasons | 97551 · 98551 |
| Carlisle | 3012901 |
| Global Parts Distributors | 5511590 · 6511590 · 6811590 · 7511590 · 7811590 |
| Ranshu | 14SD4041 · 14SD4041NEW · 14SD4696 · 14SD4696NEW |
| TruckAir | 031001C |
| TTAC | 3004296 · 3004304 · 3004305 |
| Sunair | CO2026CA |
| Airpro | 204696 |
| AP Air | 509548 |
| Austin Baker | 10343270 |
| Compressor Works | 638874 |
| Frigette | 2041559 |
| AFI | 0257 |
Complete technical specs
Install it right — protect the warranty
Commercial trucks have large A/C systems, so a thorough clean-up matters. Follow these steps to keep the new unit covered.
Confirm belt & head
Verify V-belt 2-groove drive and the GQ lateral-pad head. Serpentine trucks need #204-1752.
Flush the system
Flush the condenser and lines to clear old oil and debris from any prior failure.
Renew components
Replace the receiver-drier and expansion valve — required to keep debris from voiding your warranty.
Set oil & evacuate
It ships pre-filled with oil — set the correct total system oil, pull a deep vacuum, then charge R134a.
Recommended upgrade: Consider Fluoro-Dye Retrolube POE Oil (861-2112) during install — a premium lubricant with integrated UV leak-detection dye for easier troubleshooting.
SD7H15 (2-groove V-belt) FAQ
Is this the V-belt or the serpentine version?
Will it fit my Kenworth or Peterbilt?
What is the GQ head?
Does it come with oil?
What does it replace?
Shop the SD7H15 range
Browse SD7H15 compressor configurations and set your quantities in one place.
| Image | Product Name | SKU | Price | In Stock | Quantity | Add To Cart |
|---|---|---|---|---|---|---|
|
Sanden SD7H15 A/C Compressor (Model 4663) - 2-Groove 125mm 12V Vertical O-Ring | 204-874 | Original price was: $327.85.$249.00Current price is: $249.00. | In stock | ||
|

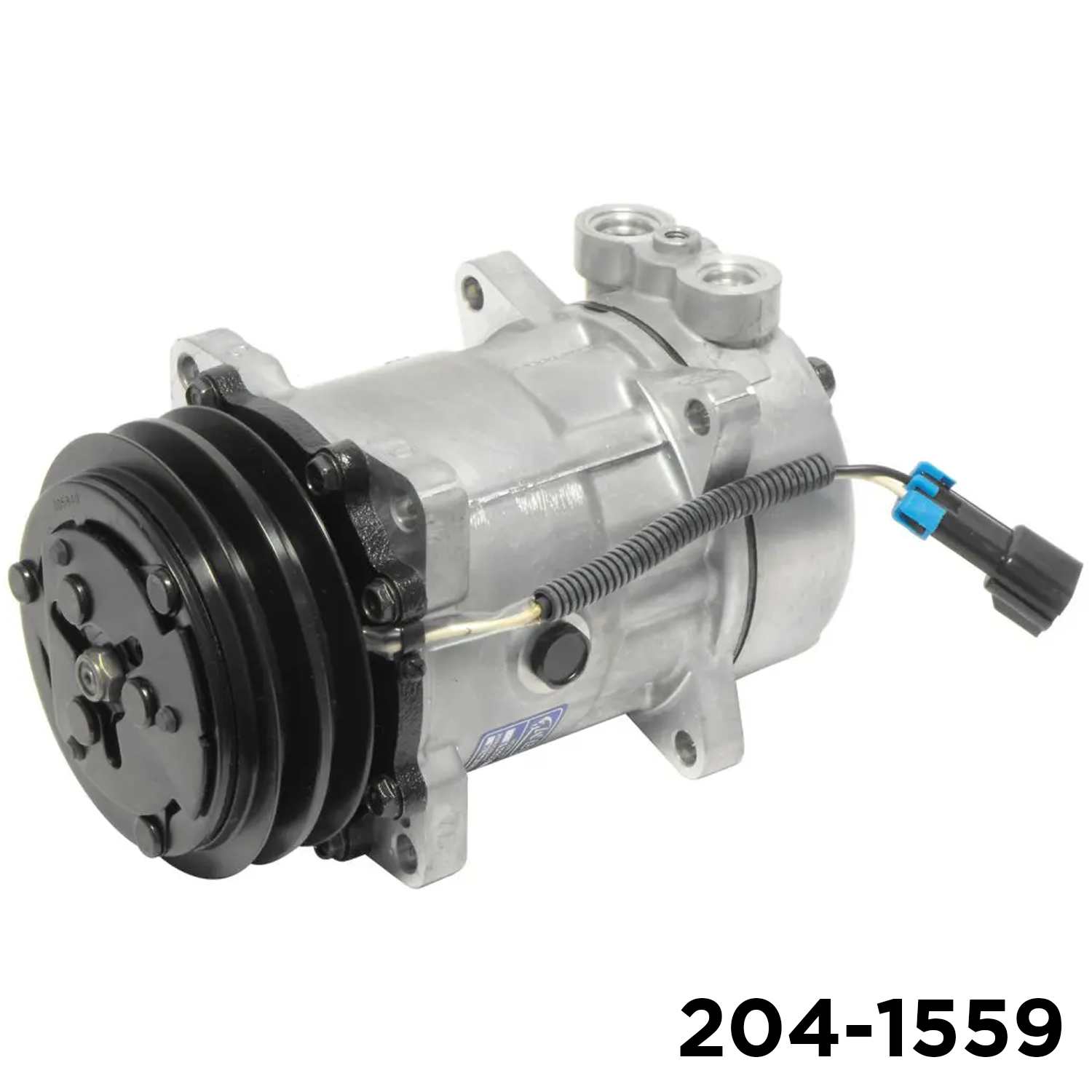

SD7H15 · 2-Groove V-Belt · Kenworth / Peterbilt | 204-1559 | $297.43 | In stock | ||
|
COMPRESSOR FLX7 4420 PAG DIR MT 119mm PV8 12V GV204-5053 | 204-5053 | $306.38 | In stock | ||
|
V SD7H15 119DIA 37.64GA PV8GV EAR R134A3/4 X 7/8 12V JD HEADSANDE | 204-878 | $306.18 | In stock | ||
|
Compressor Sanden 7H15 PV 8 Groove 12 Volt Cross Bolt | 204-879 | $327.25 | In stock | ||
|
SD7H15 119 49GA PV8GRV DIRECT R134A1 X 14 12 JDA 2WIRE MALE SPADE | 204-5015 | $317.98 | In stock | ||
|
SD7H15 119DIA 61.46GA PV8GV R134APAD 12 GWA 2WIRE MALE SPADEOEMS: | 204-5046 | $317.15 | In stock | ||
|
Compressor Sanden SD7H15 Vertical Oring 8 & 10 119MM PV8 12V | 204-7860 | $286.85 | In stock |
Match your compressor before you buy
Belt type, head, mount, and connector all have to match. Send us your old unit’s numbers or call and we’ll confirm the right SD7H15 for your rig.
Add to cart ↑ Confirm my fitmentSanden®, Paccar®, Kenworth®, Peterbilt®, and all manufacturer and platform names and part numbers are trademarks of their respective owners and are listed for identification and cross-reference purposes only; their use does not imply affiliation or endorsement. This is an SD7H15-style replacement compressor. Confirm belt type, head style, mount, and connector against your application before ordering.
